Reifenhauser, 3 Layers, 2003, 2300mm Width, 400 kg/h Output

Reifenhauser, 3 Layers, 2003, 2300mm Width, 400 kg/h Output

Description

  1. Overview
    1. Reifenhauser blown film line
    2. Brand: Reifenhauser
    3. Year: 2003
    4. Number of layers: 3
    5. Film structure: ABC
    6. Material: LDPE, LLDPE, MDPE others in blends
  2. Specifications
    1. Film width: 2300 mm
    2. Output: 400 kg/h

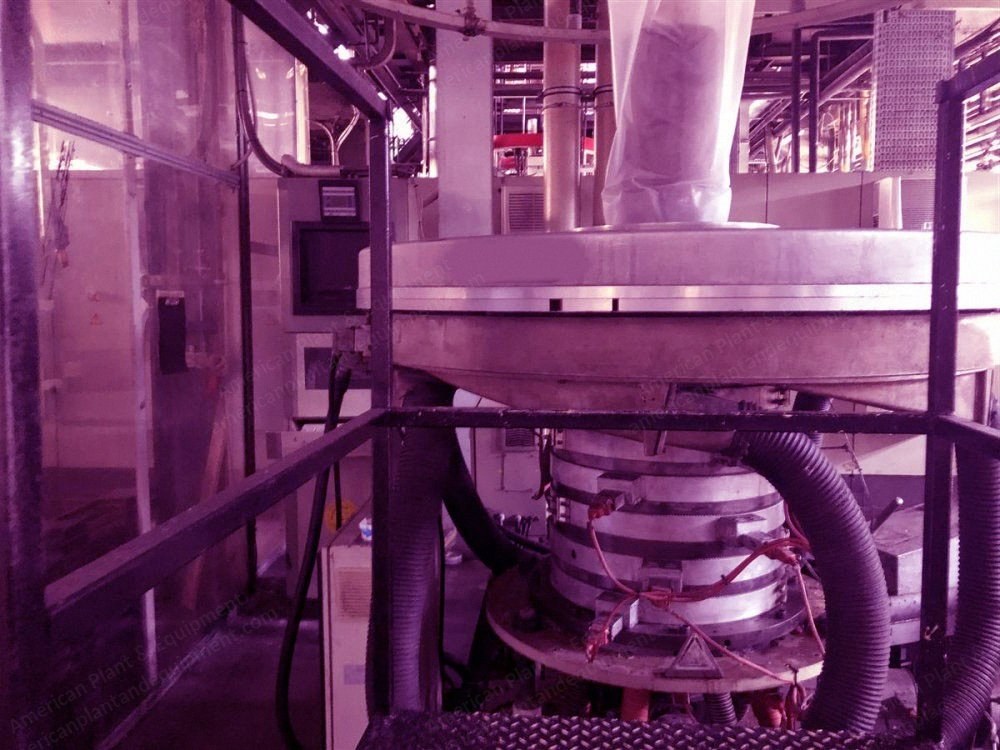

    3. Die diameter: 400 mm + 280 mm
    4. Thickness control system: automatic thickness profile control

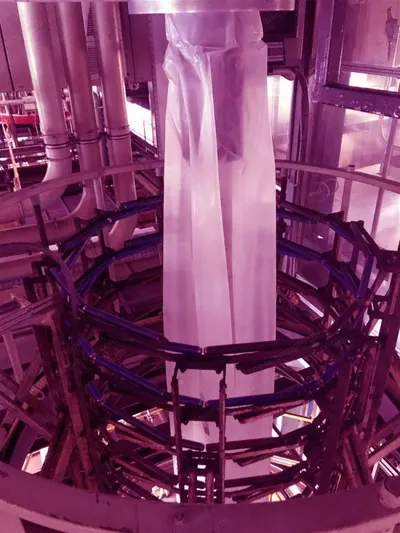

    5. Bubble cage: motorized
    6. Panel for gussets: yes

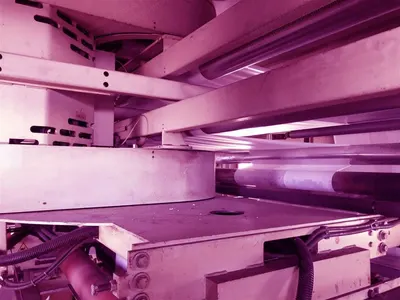

    7. Take off unit: oscillating take off unit Reinhold wide 2300 mm with gusseting panels
    8. Corona treatment: Mero

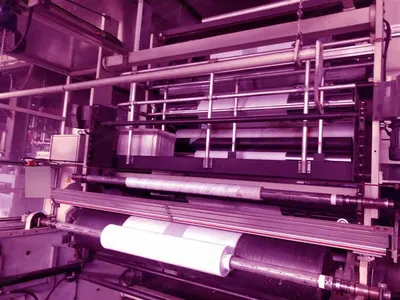

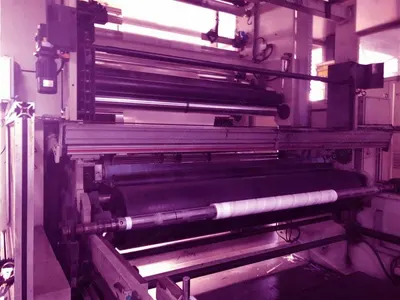

    9. Rewinder type: double back to back
    10. Rewinder max reel diameter: 1000 mm
    11. Rewinder description: model UFA 01 A1

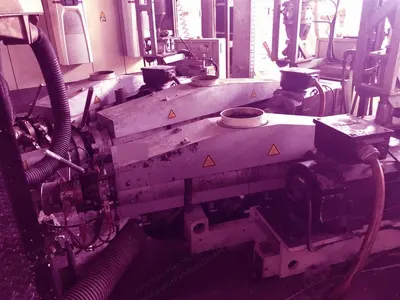

  3. Extruders

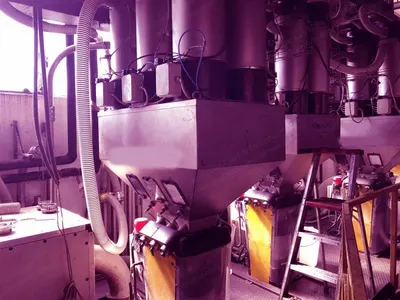

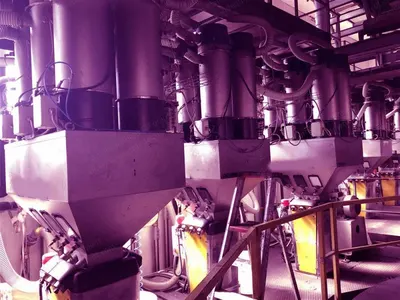

    1. Extruder 1 layer ref: A, screw diameter 60 mm, AC motor 60 kW, gravimetric dosing system Doteco 5 comp
    2. Extruder 2 layer ref: B, screw diameter 80 mm, AC motor 117 kW, gravimetric dosing system Doteco 5 comp
    3. Extruder 3 layer ref: C, screw diameter 60 mm, AC motor 60 kW, gravimetric dosing system Doteco 5 comp
  4. Condition
    1. Used
