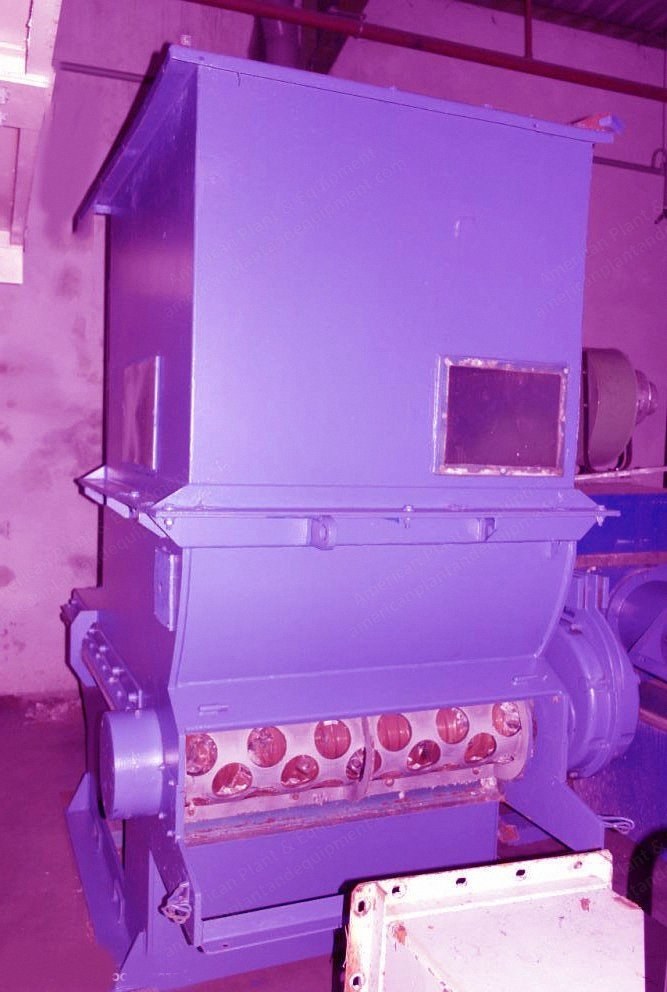

Description Overview Vecoplan paper recycling line Used condition Maximum capacity of 1 ton per hour Reported to be reconditioned Main Components Vecoplan single roll shredder, model VAZ 100/80U Hammer defibrator for the shredder, capacity 1 ton per hour Essegi bagger, model HPCF 600, capacity 2 tonnes/hr including control cabinet Dust filter Hopper/distribution tank/container for cellulose additives Three transport material screw conveyors Piping, valves, controls and additional infrastructure Shredder Specifications 9.2” (235 mm) diameter x 39” (1000 mm) roll Maximum 95 rpm roll speed Interchangeable knives Driven by a 16.5 hp/11 kW, 400 volt, 50 cycle/3 phase motor and gearbox 39” (1000 mm) x 31.2” (800 mm) product inlet Hydraulic ram hydraulic power station loading hopper with level sensor fitted Dimensions and Weight Overall dimensions: 91.7” long x 4.4” width x 46.4” high (2370 mm long x 1360 mm width x 1190 mm high) Total weight approximately 1.3 tons Included Items Extraction belt complete with control panel SpecificationsWeight: 1300
