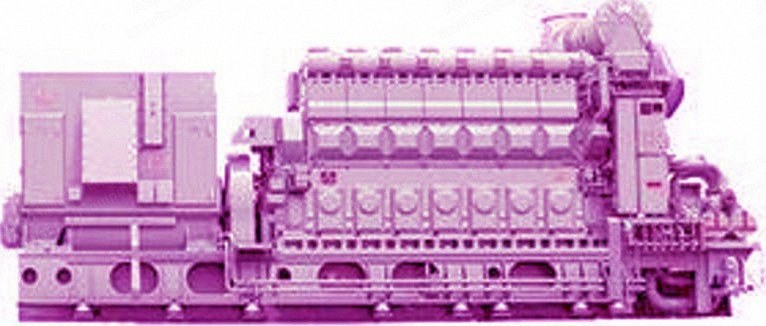

MAN, 18V32/40, 9000 kW, 50/60 Hz, HFO / Diesel Fuel Generator Set

MAN, 18V32/40, 9000 kW, 50/60 Hz, HFO / Diesel Fuel Generator Set Sold

Description

  1. Overview
    1. 21 new units of Man diesel engines 18v32/40, never installed, manufactured at Man-
    2. Gross electrical output of approximately 9 mw each specified at the generator terminals
    3. Engines are designed for firing by gas or hfo/diesel
    4. All engines are equipped with brand new abb generators
    5. All units are available for immediate delivery
  2. Performance
    1. Gross electrical power: 9 kwe, specified at the generator terminals
    2. Gross heat rate: 7,832 kj/kwh, specified at the generator terminals
    3. Given at +25°c, 30% rh and 100masl ambient conditions with ±0% tolerance, 11kv generator voltage, gas methane number >80, lhv >30mj/nm3, gas pressure min 5 bar(g), power factor 0.8
    4. Performance figures provided with 0% tolerance
  3. Specifications
    1. 9000 kw, 50/60 hz, 11 kv, hfo / diesel fuel
    2. Abb generator
    3. Pf: 0.8
    4. Gross heat rate: 7832 kj / kwh
    5. Man warranty available
    6. Diesel/hfo 18v32/40 basic man
    7. Gross electrical output approx. 9.0 mw double fuel
  4. Engine Details
    1. Brand man diesel & turbo, type 18v32/40 - 4 stroke, unused
    2. Each unit consists of motor, generator, rack / base-frame
    3. Speed: 750 rpm
    4. Power at crankshaft: 9,000 kwm
    5. Emission: wb 19 98
    6. Power-to-weight ratio (mcr) in-line engine: 11.3 - 12.7 kg/kw
    7. Power-to-weight ratio (mcr) v-engine: 9.4 - 10.2 kg/kw
    8. Cylinder output (mcr) at 750/720 rpm: 500 kw
    9. Cooling: cylinder cooling with fresh water
    10. Cooling: charge-air cooler (two-stage) with fresh water
    11. Cooling: fuel injector cooling with fresh water, only when running on hfo
    12. Starting method: compressed air
  5. Generator Details
    1. Generator: 50 hz or 60 hz
    2. Voltage: 11 kv
    3. Output approx.: 10,940 kva
    4. Alternator efficiency: 97.24%
  6. Generator Unit Performance
    1. Continuous power output: 8,752 kwel
    2. Specific fuel consumption at 100% load: 190.35 g/kwel
    3. Lube oil consumption (+ 20% tolerance): 4.5 kg/h
    4. Weight per unit: 151 ton
    5. Parameters according to: isocondition
  7. Scope Typically Included
    1. Basic engineering of the plant
    2. Detailed design of all man supplied equipment
    3. Generating sets & automation/control system
    4. Auxiliary equipment needed for the power generation
    5. Medium voltage & low voltage switchgears
    6. Technical advisors for assistance during installation
    7. Technical advisors for assistance during commission
    8. Training on site
    9. Plant operating manuals
  8. Scope Typically Excluded
    1. All civil material & work
    2. Installation and supervision
    3. All site management and site offices
    4. Piping material, cables & tanks
    5. Exhaust gas emission cleaning equipment (if required)
    6. Switchyard and step-up transformers
    7. Any other work or services not mentioned here
  9. Condition
    1. New units, never installed
    2. Unused
    1. Manufactured at Man-
