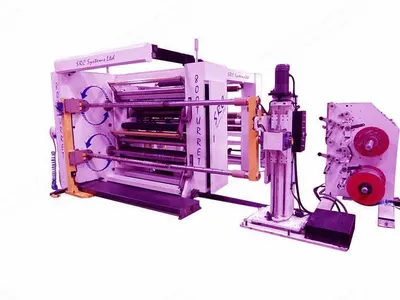

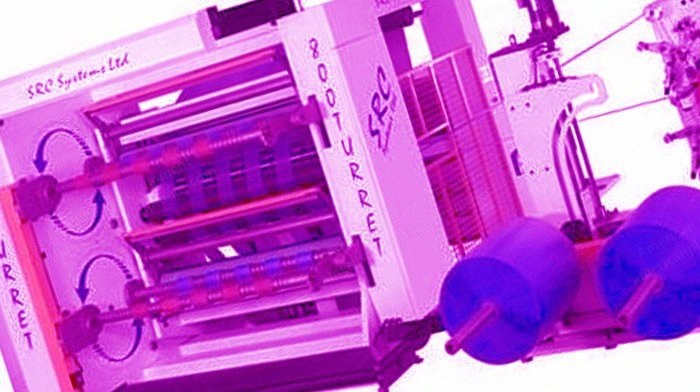

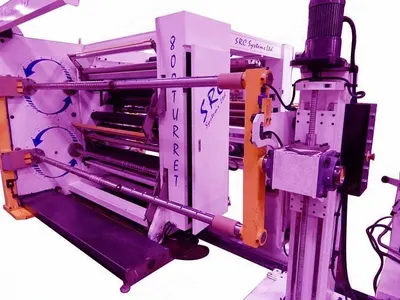

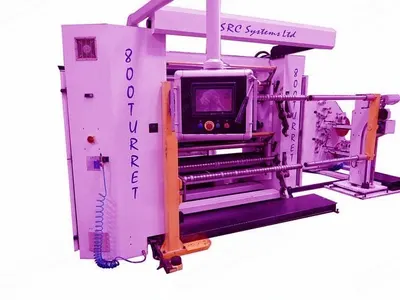

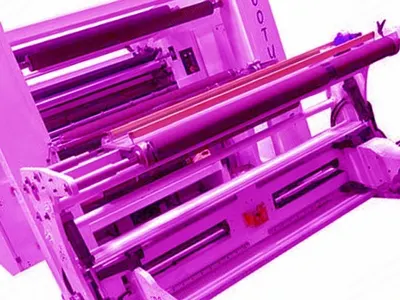

SRC Systems, 800 Turret, 63" (1700mm) Width, 32" Rewind Diameter, 1960 FPM (New)

SRC Systems, 800 Turret, 63" (1700mm) Width, 32" Rewind Diameter, 1960 FPM

Description

  1. Overview
    1. 63" SRC 800 turret duplex slitter
    2. Brand: SRC Systems Limited
    3. Model: 800 turret
    4. Width: 63.0 in (1700 mm)
    5. Condition: Used
  2. Specifications
    1. Working width max: 63" (can be increased to 80" depending on material and weight)
    2. Working width min: 26" on 66" wide machine
    3. Unwind diameter: 48"
    4. Max unwind roll weight: 3300 lb
    5. Rewind diameter max: 32"
    6. Rewind shaft type: Full differential slip shaft
    7. Minimum slit width: 2"
    8. Slitting: Rotary shear, razor, or both
    9. Max speed: 1960 ft per minute
    10. Cycle time: Less than 30 seconds
  3. Controls And Components
    1. BST EKR 500 edge guide (BST Pro Com 60 upgrade available)
    2. Omron PLC
    3. Yaskawa drives
    4. Schneider control gear
    5. Mindman pneumatics
  4. Available Options
    1. Female knife positioning
    2. Taping system
    3. Dual oscillating trim winders
    4. Kongskilde trim blower
    5. Finished roll push off
    6. Finished roll mechanical unload to pallet level
    7. Laser core positioning
  5. Additional Information
    1. SRC has over 25 years experience
    2. Lead time: Appx. 22-26 weeks; delivery dependent on production commitment at the time of order
