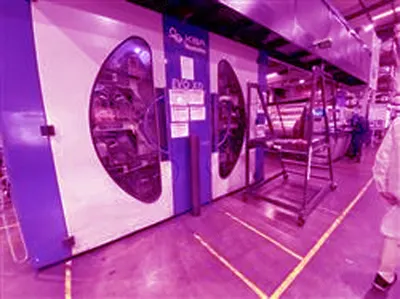

Kba Flexotecnica, Evo XD, 2017, 1220mm Print Width, 8 Colors, Gearless

Kba Flexotecnica, Evo XD, 2017, 1220mm Print Width, 8 Colors, Gearless

Description

  1. Overview
    1. Eight colors
    2. Gearless design
    3. Fast sleeve change
    4. Four motor per deck CNC position system
    5. Computer supervision
  2. Specifications
    1. Print width: 1220 mm
    2. Min print repeat: 380 mm
    3. Max print repeat: 800 mm

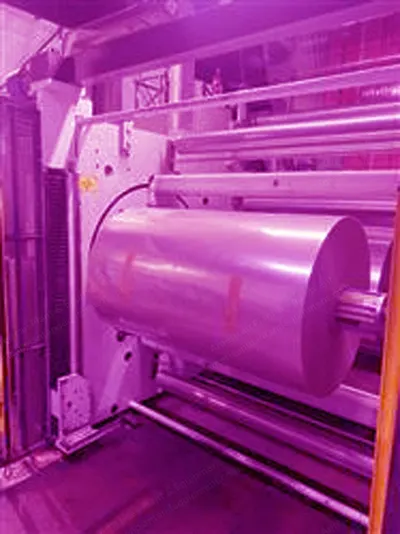

    4. Unwinder type: turret automatic with roll loading system
    5. Rewinder type: turret automatic with roll unloading system

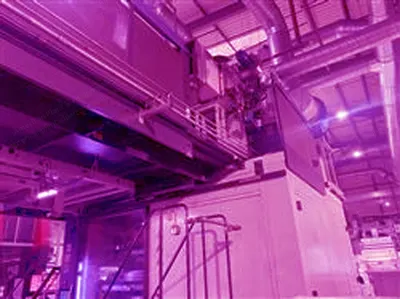

    6. Drying: 2 zones, 4 fans, final tunnel 5000 mm length, 2 gas burners 200,000 Kcal/h each
    7. Automatic air recirculation system with LEL controls on each zone (Zellweger)
    8. Videocamera: yes, AVT 100% inspection
    9. Viscosity control: yes, Gama
    10. Washing system: yes
    11. Web width: 1270mm
  3. Included
    1. 12 ceramic anilox sleeves
    2. Approximately 100 print sleeves
