This line was completely reconditioned and updated in 2017

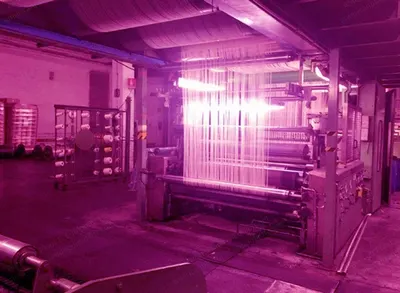

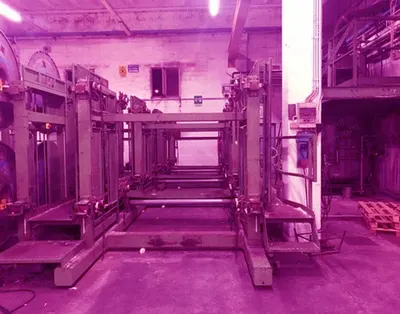

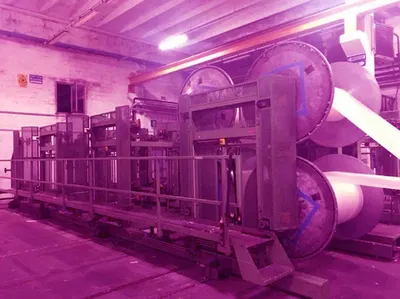

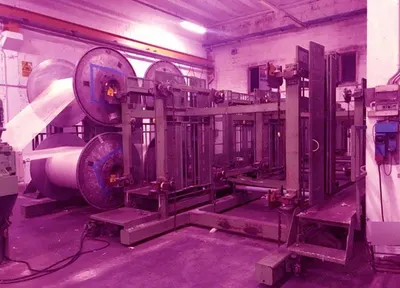

Creel And Yarn Handling
2 beam creels (one creel can be prepared while the other is running)
For maximum 14 beams of max diameter 1400 mm
Automatic yarn tension adjuster
Yarn pulling and feeding element
Pre-Dyeing And Mercerising
Soda process or wetting or pre-dyeing vat, complete with padder
6 steam heated, ptfe coated timing cans 800 mm diameter for mercerising
Fixing And Washing Vats
Fixing or 2nd wetting or washing vat, complete with stainless steel tank and mangle
Neutralising or washing vat
Washing vat complete with stainless steel tank and padder

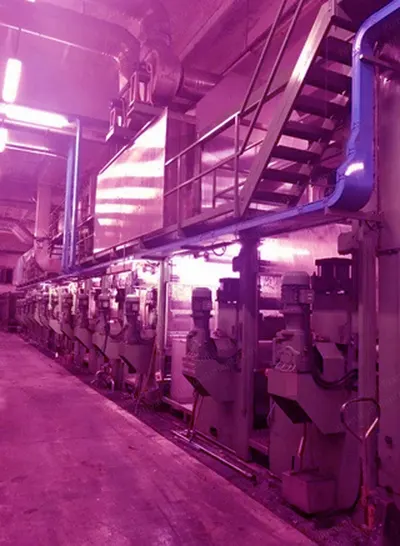

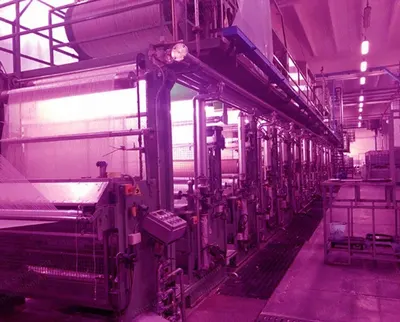

Dyeing Section

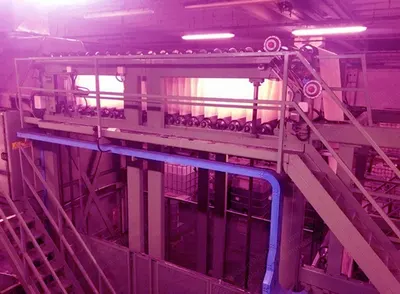

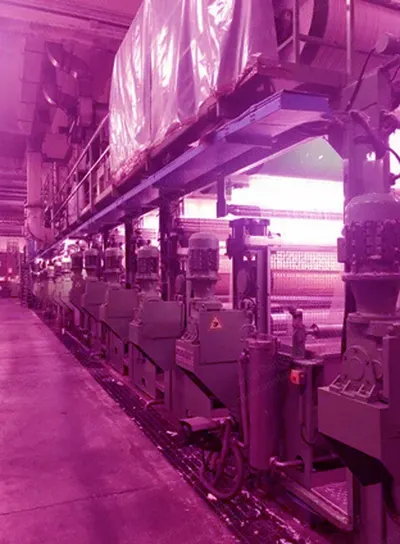

6 dyeing vats complete with stainless steel tank and intermediate padders, with overhead oxidising roller arrangement with finned stainless steel rollers and dancing roller counter current dye circulation system on dye vats control system for dyes with filters, dosing and pumps
Circulation tank for indigo

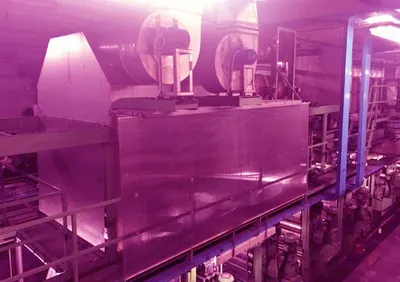

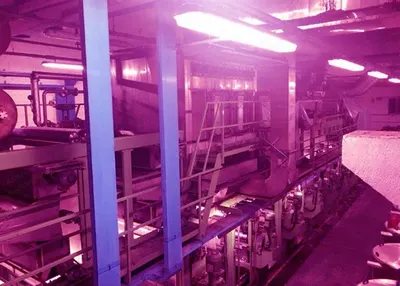

Overhead mounted steamer for colour denim / oxidiser for indigo
Post-Dyeing Treatment
3 washing or post dyeing treatment vats with intermediate padders
Accumulator for automatic storage of dyed yarn when the sizing machine stops for beam change, 150 m content (5 minutes at 30 m/min)
Drying And Sizing

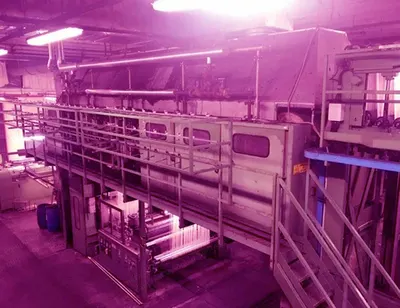

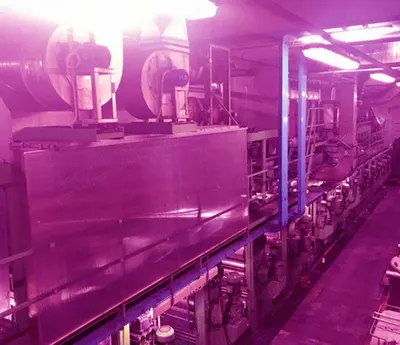

Drying cylinder pre-dryer range with 10 ptfe coated drying cylinders
Karl Mayer - Rotal sizing box with prewetting, 2002 double dip, double nip
Drying cylinder range with 14 ptfe coated drying cylinders

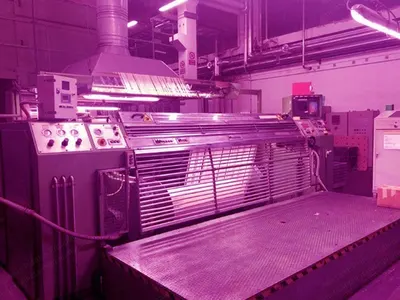

Beaming

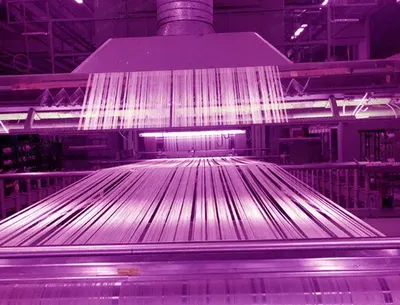

Karl Mayer - Rotal warp beaming head, year 2002
Roller width 2840 mm
Max. beam width 2400 mm between flanges
Max. weaving beam diameter 1600 mm
Preparation Kitchen And Chemical Storage

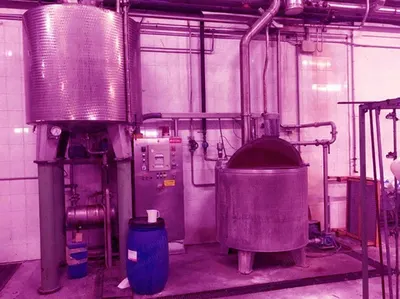

Size preparation kitchen

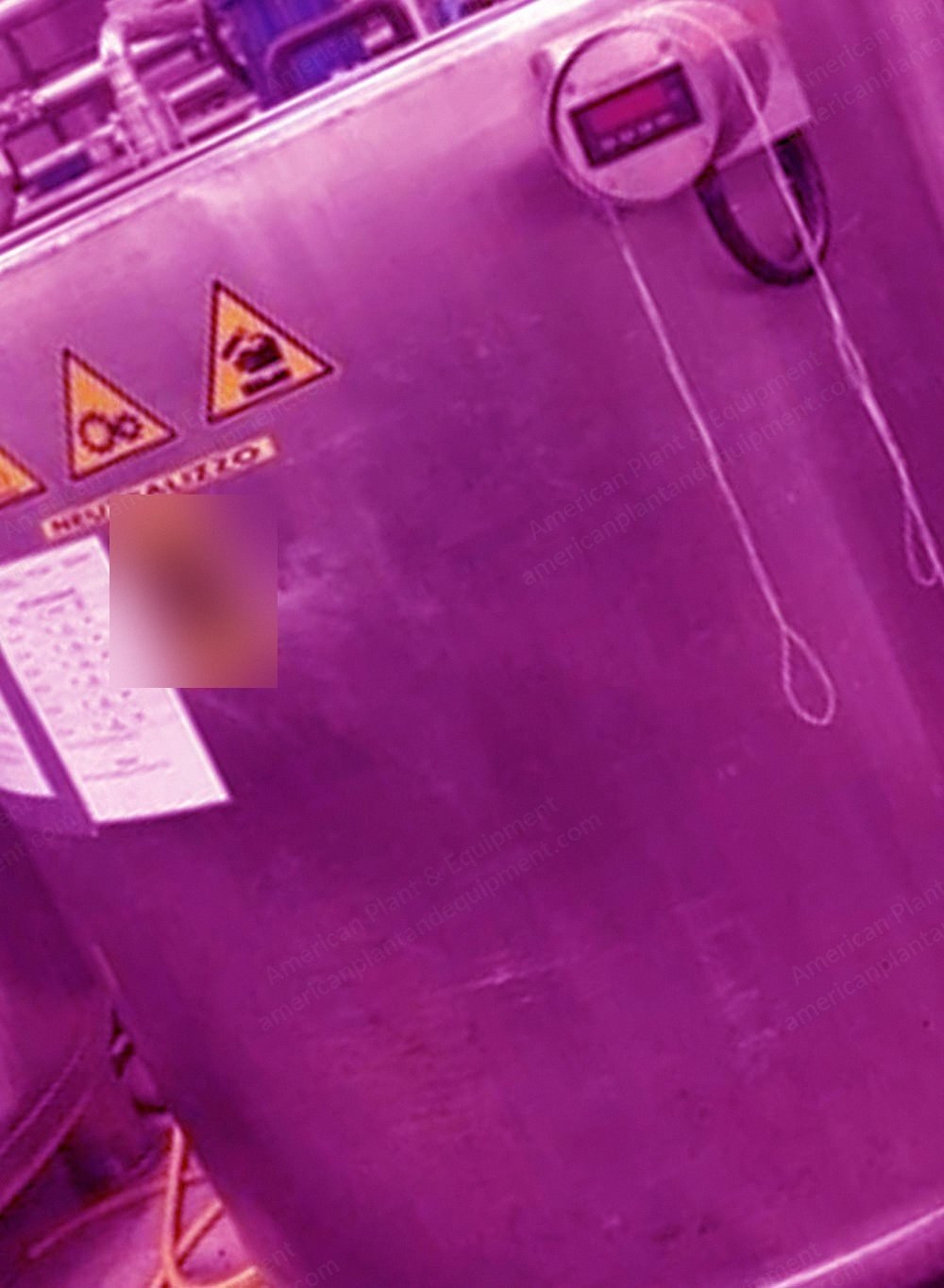

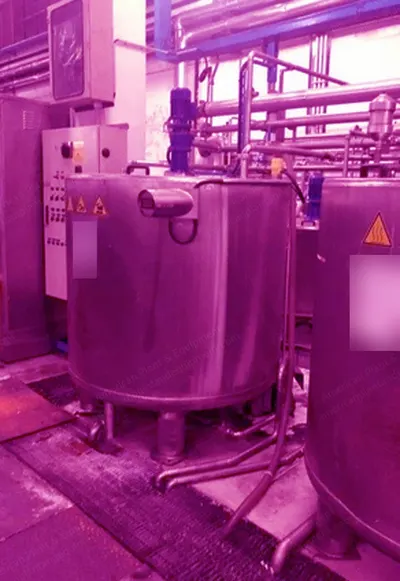

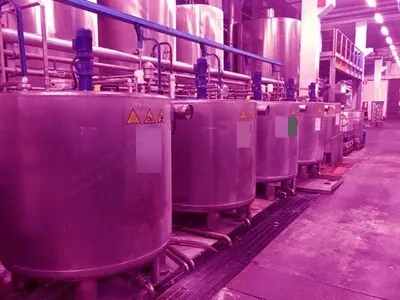

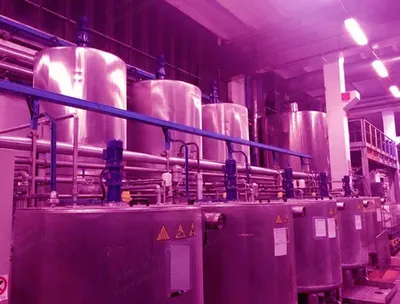

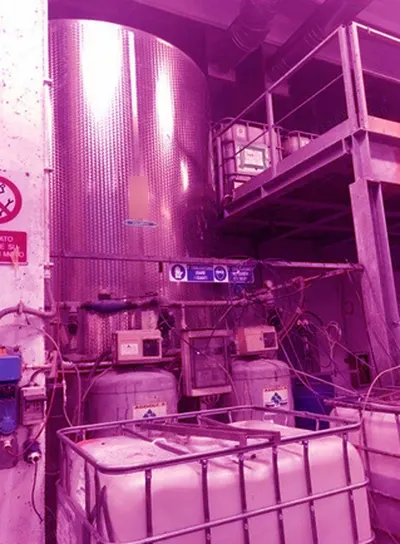

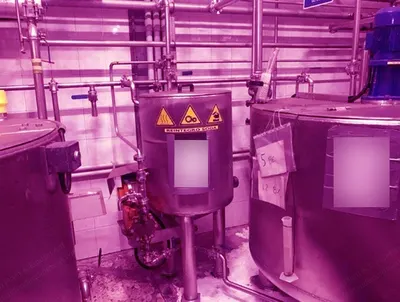

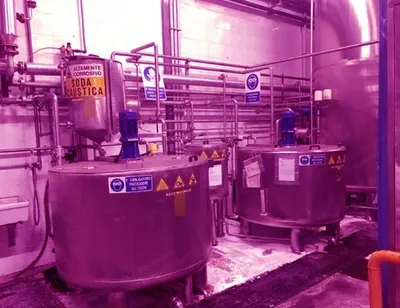

Indigo dye and chemicals storage system with:
2 tanks for chemical bath pretreatment
5 indigo tanks
1 sulphur black tank

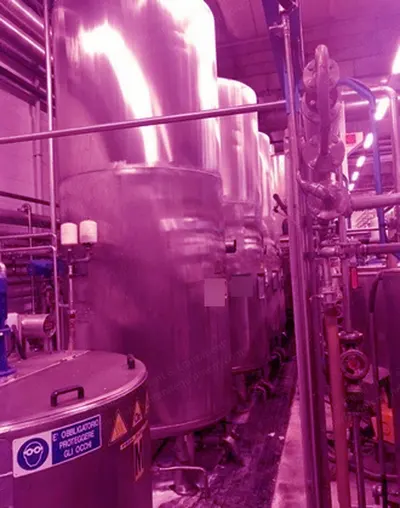

3 stocking tanks for indigo
1 tank for softened water
Additional Equipment
Canopies

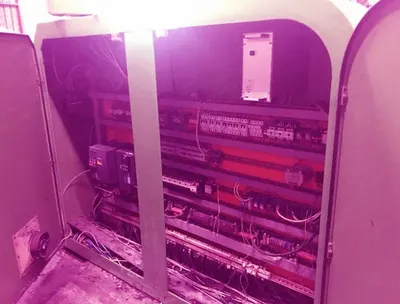

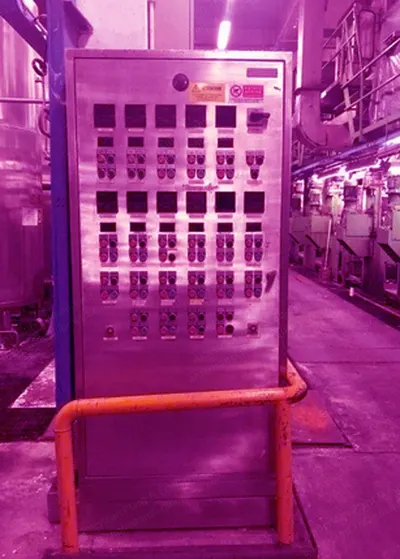

Electrical control panels
