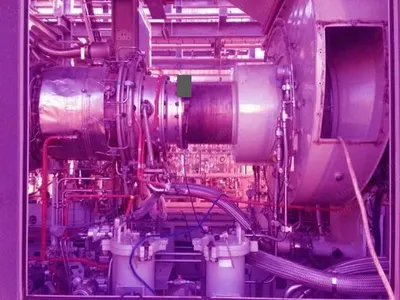

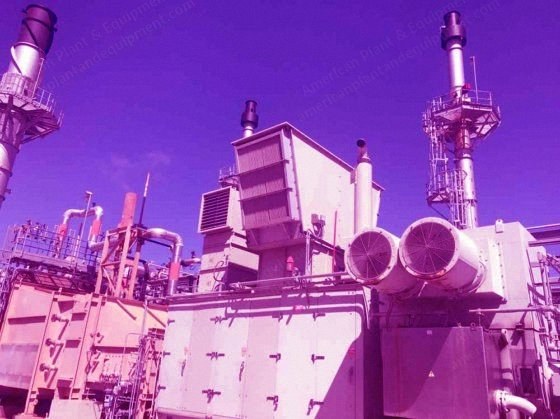

Solar Turbines, T4701, 2006, 3200 kW, 60 Hz, Wet NOx Gas Turbine Generator Set

Solar Turbines, T4701, 2006, 3200 kW, 60 Hz, Wet NOx Gas Turbine Generator Set

Description

  1. Overview
    1. Used solar centaur t4701 wet nox gas turbine generator set
    2. Model gc1-cb-1d
    3. Peak duty 3169 kw, built 2006
  2. Specifications
    1. Capacity: 3200 kw
    2. Turbine 1500 rpm
    3. Keto engineering synchronous ac generator, model aa27932000
    4. Rated 3200 kw, 1800 rpm, 4160/3/60
    5. Power factor 0.8, temperature rise 70 c
    6. Exciter field volts 100
    7. Serial number: 3966C51
  3. Gear Box Assembly
    1. Part number 196800-206-960
    2. Rated 7700 hp, service factor 1.1
    3. Input 14851 rpm, output 1800 rpm, ratio 8.305921
    4. Overhauled 2017
  4. Included Equipment
    1. Unit available with deltak hrsg 64000 lb/hr steam boiler
    2. Rated 700 psig, 16002 sq ft heat surface
    3. National board #1949, built 2007
