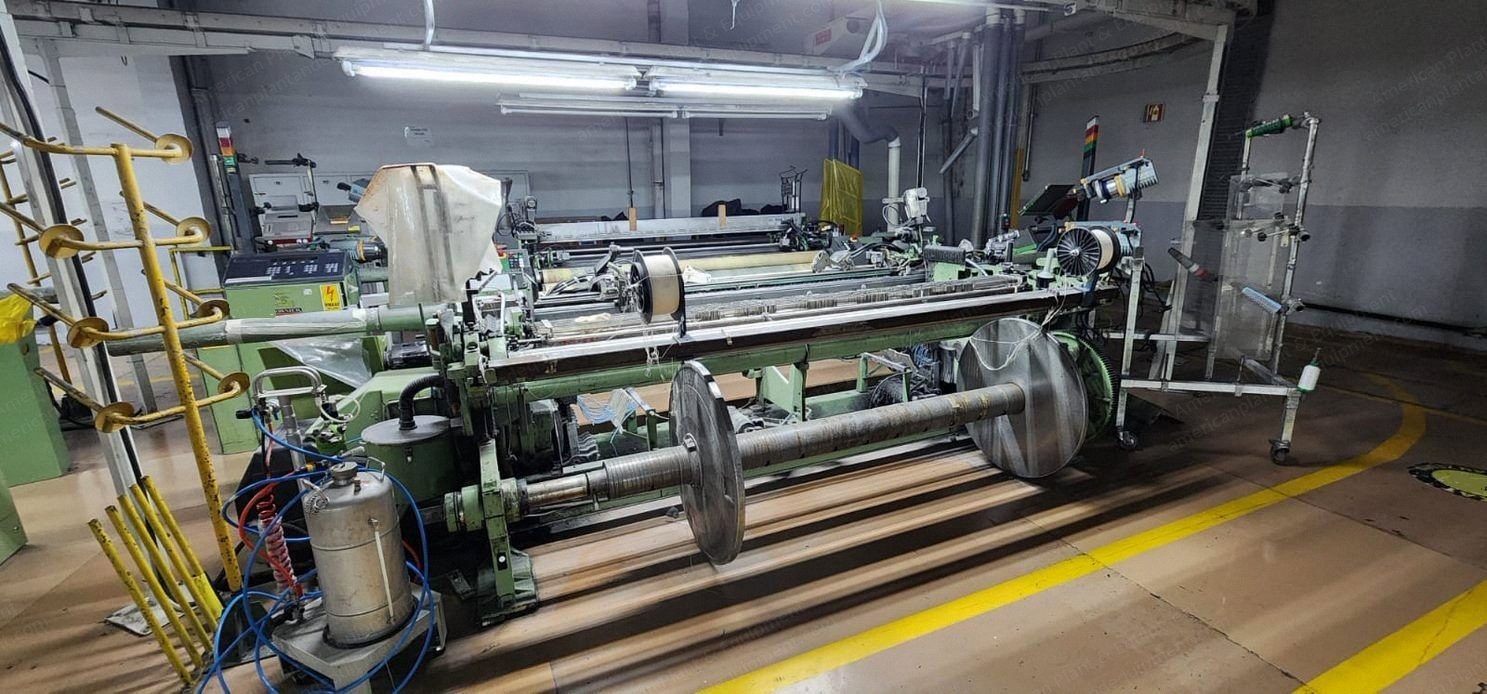

Dornier, HTVS 6/S, 1996 to 2000, Rapier Weaving Looms, Width 2100mm to 2200mm, Staubli Dobby, 8 Colors

Dornier, HTVS 6/S, 1996 to 2000, Rapier Weaving Looms, Width 2100mm to 2200mm, Staubli Dobby, 8 Colors

Description

  1. Overview
    1. Dornier HTVS 6/S rapier weaving looms
    2. Total quantity: 42 looms (12 of item 001, 30 of item 002)
    3. No split sale possible
  2. Item 001 Specifications
    1. Year: 1996
    2. Width: 2100 mm
    3. Pattern: Staubli 2667 RSV dobby (max. 22 levers)
    4. Max. no of colors: 8
    5. Selvedge type: 7 x leno, 5 x tuck-in
    6. Panel type: Diagonal AT1
    7. Color selector: ECS
    8. Weft tensioner: EFT
    9. Average installed levers: 18
    10. Running no of colors: 4
    11. Warp flange diameter: 800 mm
  3. Item 002 Specifications
    1. Year: 26 x 1998, 4 x 2000
    2. Width: 2200 mm
    3. Pattern: Staubli 2670 dobby (max. 20 levers)
    4. Max. no of colors: 8
    5. Selvedge type: 1 x leno, 29 x eco leno
    6. Panel type: Diagonal AT1
    7. Color selector: ECS
    8. Weft tensioner: EFT
    9. Average installed levers: 20
    10. Running no of colors: 4
    11. Warp flange diameter: 800 mm
  4. Condition
    1. No split sale possible
