Washing vat complete with stainless steel tank and padder

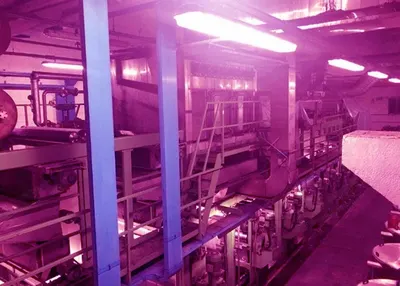

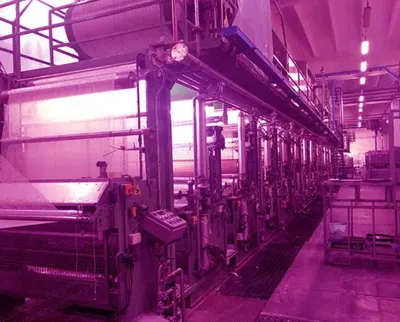

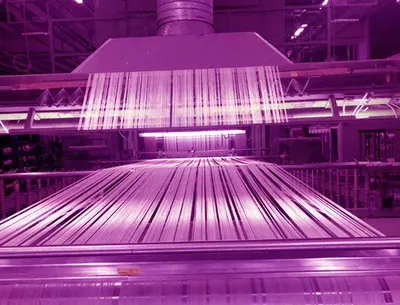

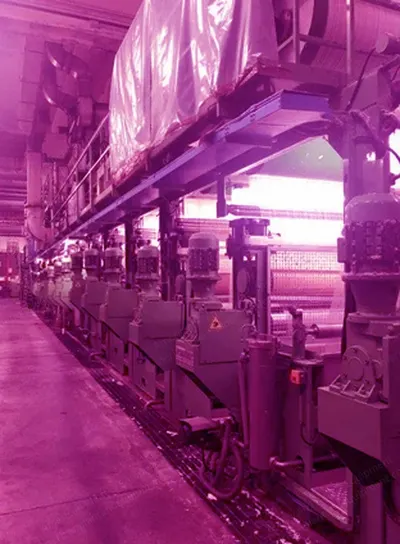

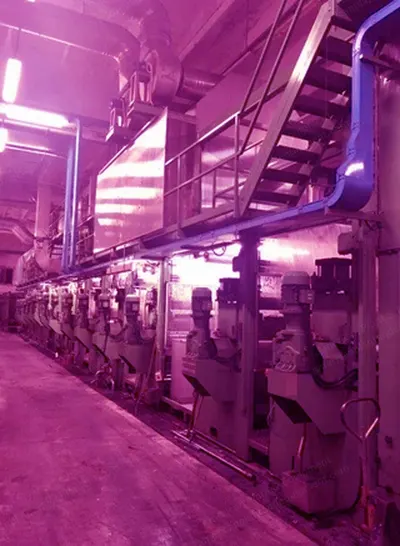

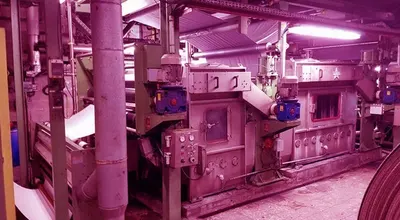

6 dyeing vats complete with stainless steel tank and intermediate padders, with overhead oxidising roller arrangement with finned stainless steel rollers and dancing roller counter current dye circulation system on dye vats control system for dyes with filters, dosing and pumps
Circulation tank for indigo
Overhead mounted steamer for colour denim/ oxidiser for indigo
3 washing or post dyeing treatment vats with intermediate padders
Accumulator for automatic storage of dyed yarn when the sizing machine stops for beam change, 150m content (5 minutes at 30m/min)

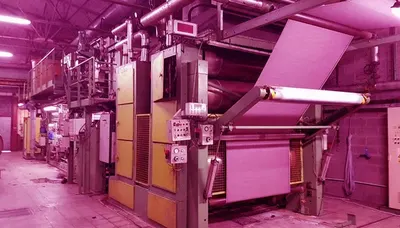

Drying cylinder pre-dryer range with 10 PTFE coated drying cylinders
Karl Mayer- Rotal sizing box with prewetting, 2002 double dip, double nip

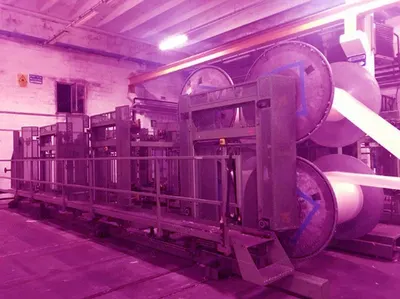

Drying cylinder range with 14 PTFE coated drying cylinders

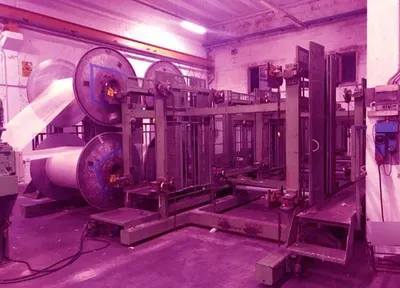

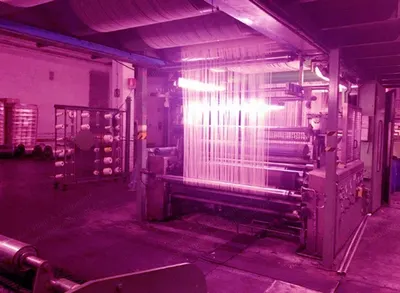

Karl Mayer- Rotal warp beaming head, year 2002
Roller width 2840mm
Max. beam width 2400mm between flanges
Max. weaving beam diameter 1600mm

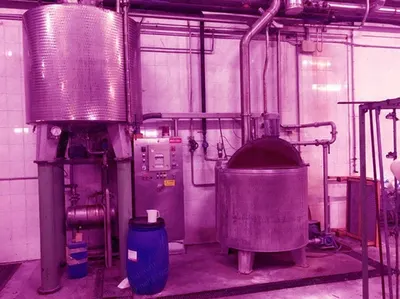

Size Preparation Kitchen

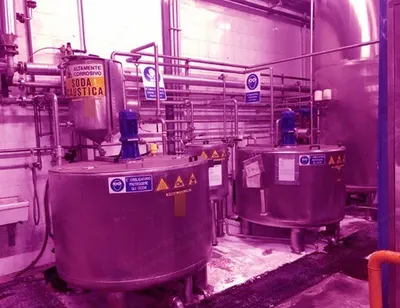

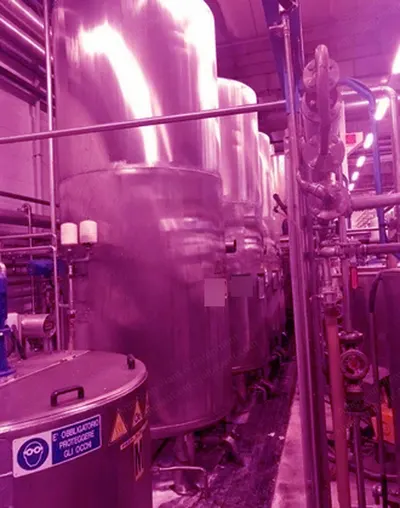

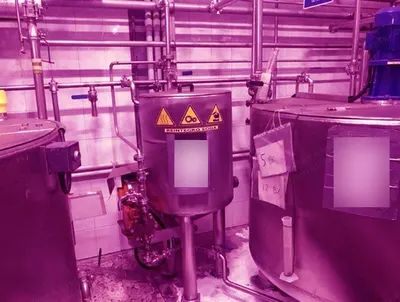

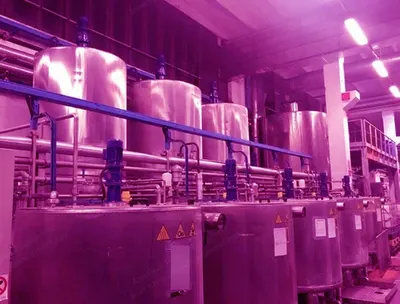

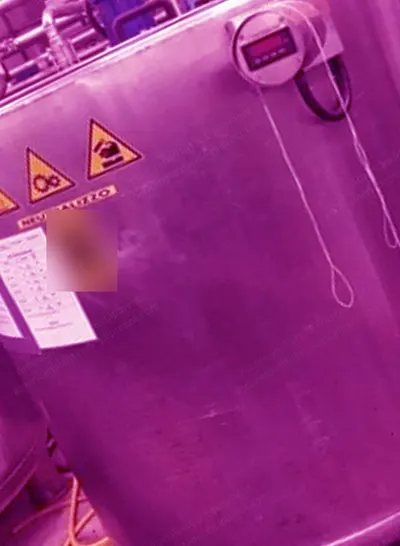

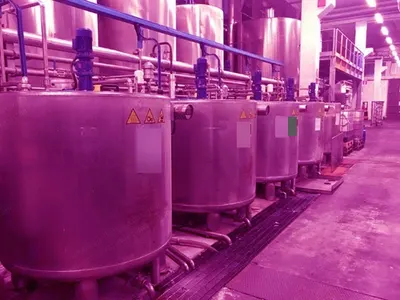

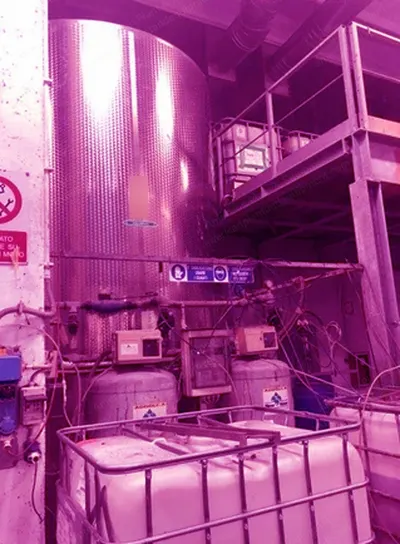

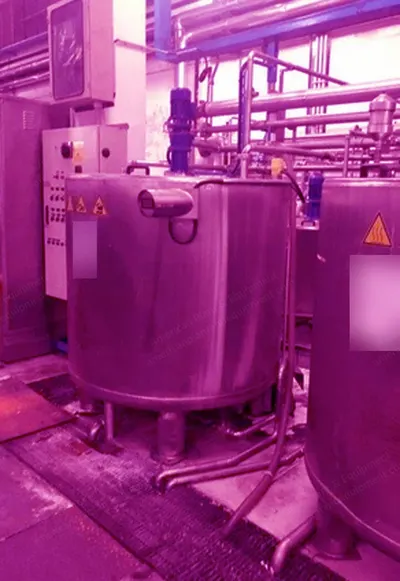

Indigo dye & chemicals storage system with:
2 tanks for chemical bath pretreatment
5 indigo tanks
1 sulphur black tank
3 stocking tanks for indigo
1 tank for softened water
Canopies

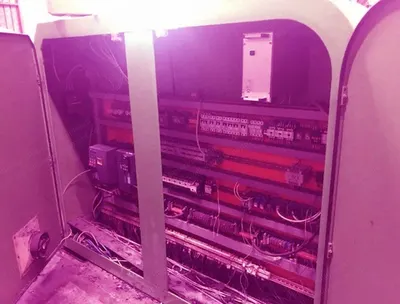

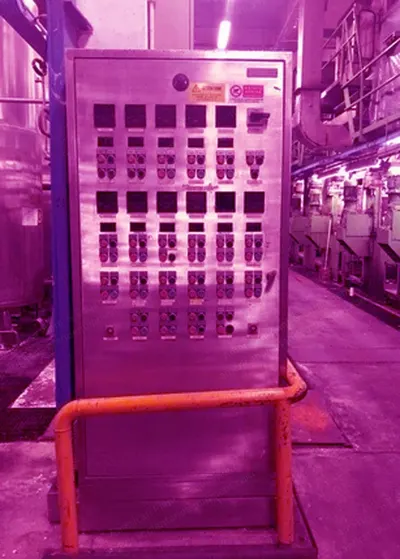

Electrical Control Panels

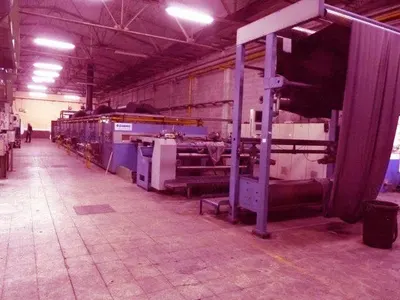

Item 002 - Comprehensive Integrated Denim Cloth Finishing Line
Working width 1800mm
Double sided brushing machine

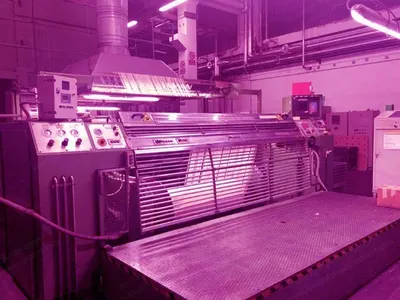

Singeing machine
Washing unit
Item 003 - Sanforiser Monforts Rubber Belt Shrinking Machine
Cylinder diameter 640mm
Rubber belt width 1850mm
Rubber belt rectification cylinder
Palmer calender with felt blanket
Cylinder 2000mm diameter
Plus 2 steam heated blanket drying cylinders
2 water cooled cylinders
Surface driven A-frame batcher

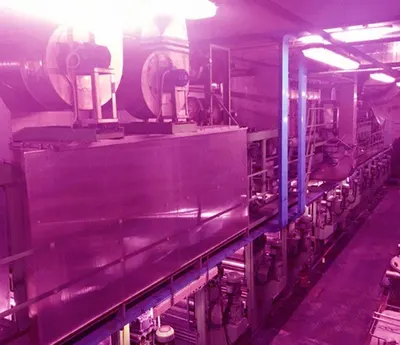

Item 004 - Bruckner Stenter Frame (Saben)
For heat setting the elastomeric content of the weft yarn (stretch denim)
Max fabric width 2000mm
Horizontal return pin chain
