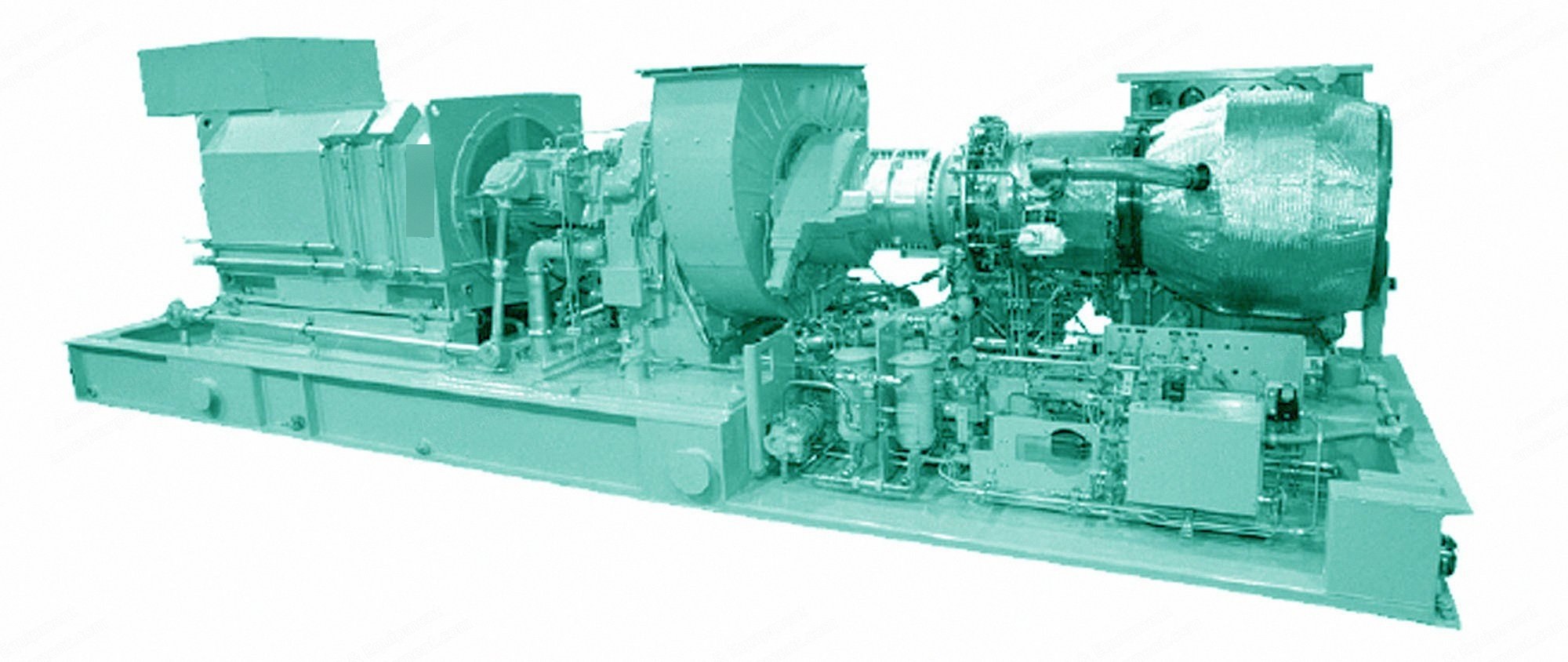

Solar, Taurus 60, 2012, Gas Turbine, Single-Shaft, 50/60 Hz

Solar, Taurus 60, 2012, Gas Turbine, Single-Shaft, 50/60 Hz

Description

  1. Overview
    1. Solar Taurus 60 gas turbines
    2. Year: 2012
    3. Industrial, single-shaft
    4. Quantity: 2
  2. Compressor
    1. Axial compressor
    2. 12 stage
    3. Variable inlet guide vanes
    4. Pressure ratio: 12.2:1
    5. Inlet airflow: 21.6 kg/sec (47.6 lb/sec)
    6. Vertically split case
  3. Combustion Chamber
    1. Annular type
    2. Conventional or lean-premixed, dry, low emission (SoloNOx)
    3. 12 fuel injectors
    4. Torch ignitor system
  4. Turbine
    1. 3 stage, reaction
    2. Max. speed: 14,950 rpm
  5. Bearings
    1. Journal: tilting pad
    2. Thrust, active: tilting pad
    3. Thrust, inactive: fixed tapered land
  6. Vibration Transducer Type
    1. Velocity
    2. Proximity probes
  7. Main Reduction Drive
    1. Epicyclic type
    2. 1500 or 1800 rpm
    3. Acceleration vibration transducer
  8. Generator
    1. Salient pole, 3 phase, 6 wire, wye connected, synchronous, with PMG exciter
  9. Construction Options
    1. Open drip proof
    2. Totally enclosed water or air cooled
  10. Electrical Specifications
    1. Sleeve bearings
    2. Solid-state voltage regulation with permanent magnet generator (exciter)
    3. Insulation/rise option: NEMA class F with B rise
    4. Voltages: 3300 to 13,800 volts
    5. Frequency: 50 or 60 Hz
    6. Vibration transducer type: velocity, proximity probes
  11. Key Package Features
    1. Base frame with drip pans
    2. 316L stainless steel piping
    3. Compression-type tube fittings
    4. Digital display panel
    5. Electrical system options: NEC class I, group D, div. 1; CENELEC zone 2
  12. Control System
    1. Turbotronic 4 control system
    2. Control log ix processor
    3. On-skid or freestanding control console
    4. Color video display
    5. Gas turbine and package temperature monitoring
    6. CGCM module
    7. Vibration monitoring
    8. Auto synchronizing
    9. Historical displays
  13. Control Options
    1. 120-VDC control battery/charger
    2. Serial link supervisory interface
    3. Turbine performance map
    4. Printer/logger
    5. Field programming
    6. Predictive emissions monitoring
    7. Start systems: direct drive AC
  14. Fuel Systems
    1. Natural gas
    2. Dual (gas/liquid)
    3. Electric fuel control
  15. Integrated Lube Oil System
    1. Turbine-driven accessories
    2. Tank vent separator
    3. Flame trap
    4. Oil cooler (optional)
    5. Oil heater (optional)
  16. Axial Compressor Cleaning Systems
    1. On-crank
    2. On-crank/on-line (optional)
    3. Cleaning tank
  17. Air Inlet and Exhaust System Options
    1. Enclosure and associated options
    2. Factory testing of turbine and package
  18. Documentation
    1. Drawings
    2. Quality control data book
    3. Inspection and test plan
    4. Test reports
    5. Operation and maintenance manuals
