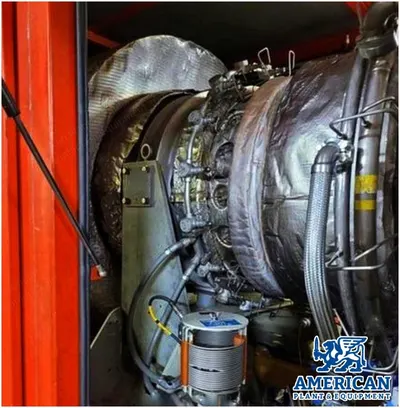

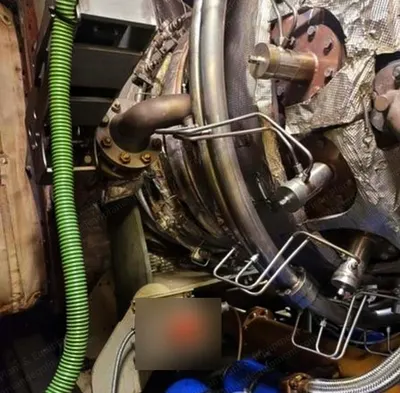

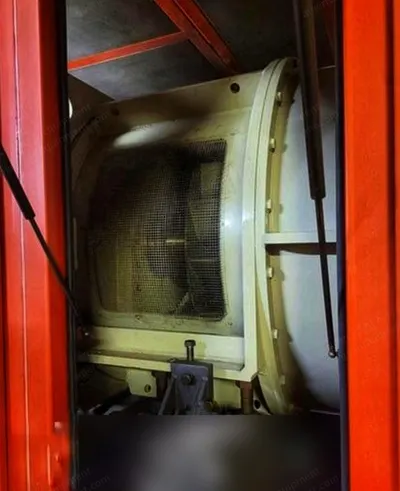

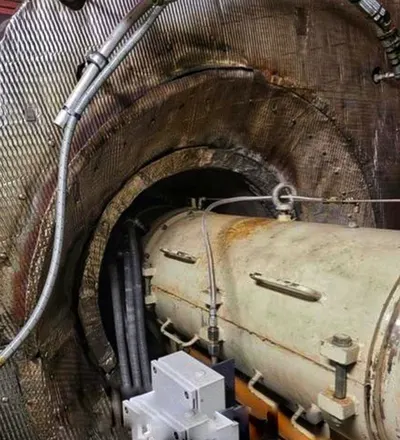

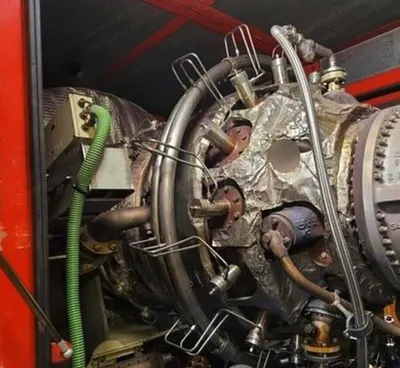

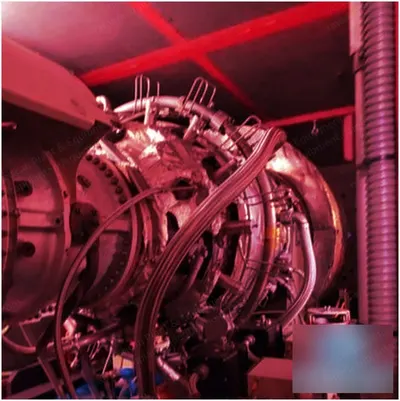

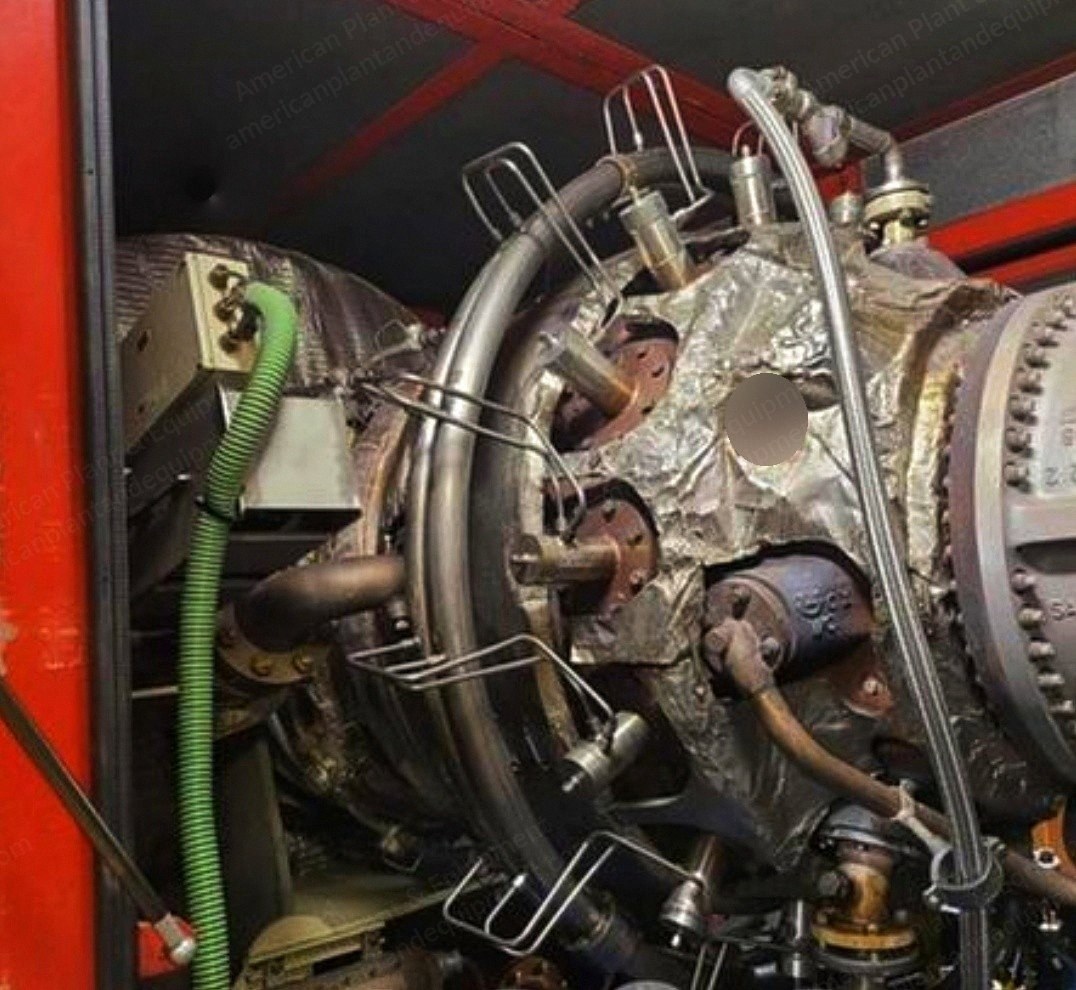

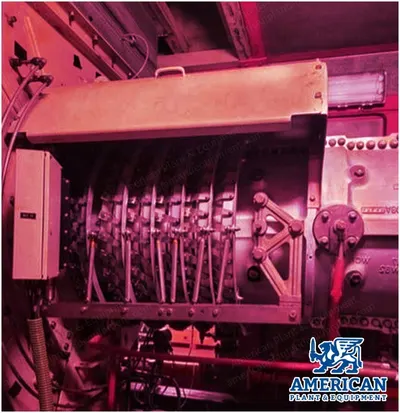

Solar, Mars 100, 2021, 11.860 MW, Mechanical Drive, 10 Hours

Solar, Mars 100, 2021, 11.860 MW, Mechanical Drive, 10 Hours

Description

  1. Overview

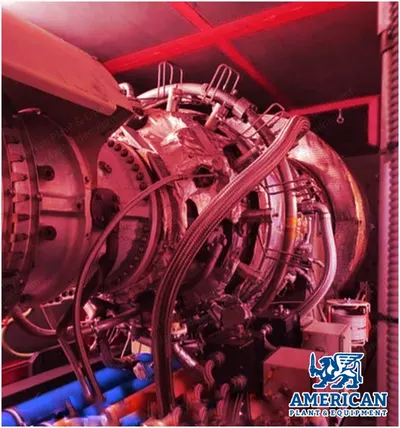

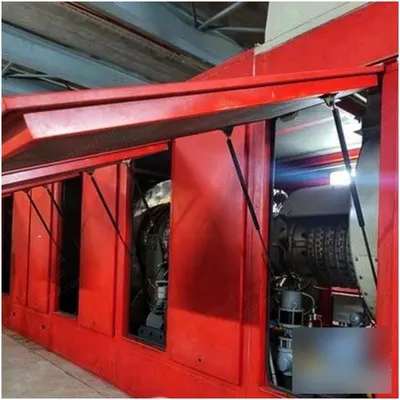

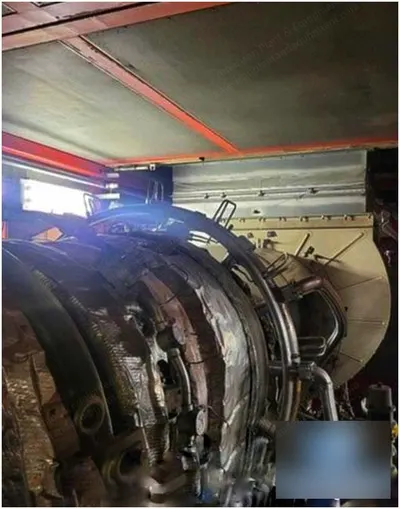

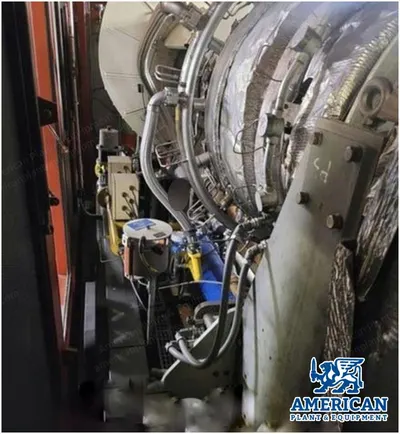

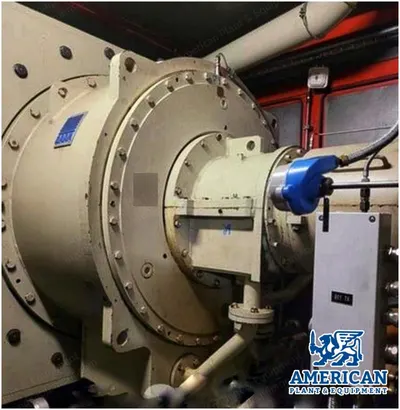

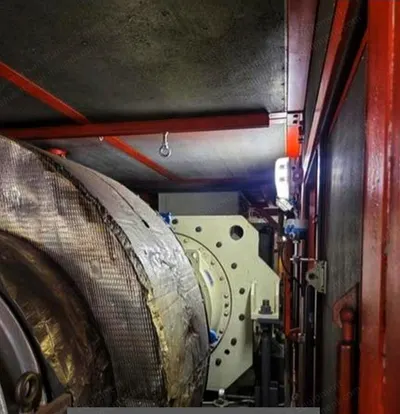

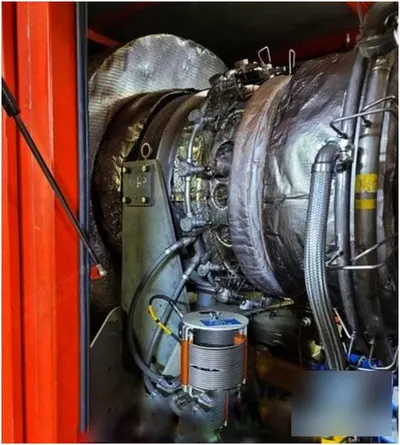

    1. Solar Mars 100 turbine for compressing
    2. Year: 2021
    3. Hours: 10
    4. Type: Mechanical drive package
    5. Not installed at present
    6. Still have been parked in boxes
  2. Engine Test Data
    1. Engine T.E.: Peterson, B.
    2. Test cell #: 10
    3. Test date: 9/24/2021
    4. Engine acceptance: ES2141_REV AL
    5. Engine control: ES2142_REV AD
    6. Match temp: High ambient
    7. Plot perf/emission gas: 9/24/2021 19:00:44
    8. 92% NGP emission gas: 2021-09-24 19:49:37
    9. Gas torch pressure [psi]: 29
    10. Crank speed [%]: 21
    11. Full load GP axial 1 gap volt [vdc]: -8.4
    12. Full load PT axial 1 gap volt [vdc]: -9.47
    13. GV high force alarm (lb-f): 345
  3. Gas Turbine Data Plate
    1. Model no.: Mars 100
    2. Version: 16000SA CS/MD
    3. Engine PN: M162S-AHG0RPRP
    4. Power [g/l]: 15763/NA hp
    5. NGP [rpm]: 11168
    6. NPT [rpm]: 9500
    7. IGV setting [deg]: +8.6
    8. T5 base uncomp [f] [g/l]: 1349/NA
    9. Setpoint full load [f] [g/l]: T5 1360/NA
  4. Performance Data
    1. Design features: Parameter power generation mechanical drive
    2. Power output: 11.350 MW (power generation), 11.860 MW (mechanical drive)
    3. Efficiency: 32% (power generation), 34.4% (mechanical drive)
    4. Heat rate: 10.935 kJ/kWh (power generation), 10.465 kJ/kWh (mechanical drive)
    5. Pressure ratio: 17.7 (power generation), 17.0 (mechanical drive)
    6. Exhaust mass flow: 41.6 kg/s
    7. Exhaust temperature: 485 °C
    8. Turbine speed: 11.170 rpm
  5. Specifications
    1. Turbine speed rpm: 11170
