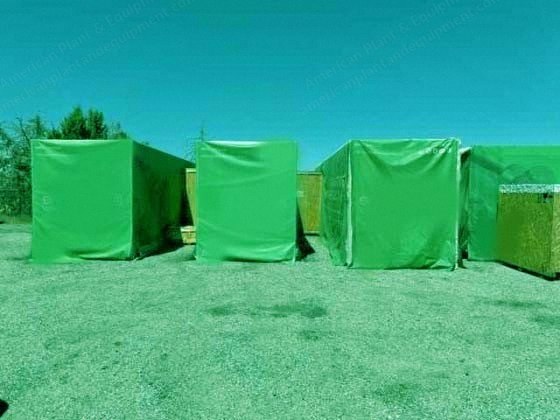

Capstone, C1000S, 2023, 1 MW, 50/60 Hz, Landfill Gas, 400/480V

Capstone, C1000S, 2023, 1 MW, 50/60 Hz, Landfill Gas, 400/480V

Description

  1. Overview
    1. Condition: Used
    2. Year built: 2023
    3. Designed for landfill gas feedstock
  2. Electrical Specifications
    1. Capacity: 1000 kW
    2. 400/480 V, 3-phase, 4-wire wye electrical service
    3. 50/60 Hz frequency
    4. 33% electrical efficiency LHV
  3. Fuel and Engine Characteristics
    1. Fuel/engine characteristics: 13.0-22.4 MJ/m³ (350-600 BTU/scf)
    2. Landfill gas HHV
    3. Less than 5,000 ppmv H₂S content
    4. 517-551 kPa gauge (75-80 psig) inlet pressure
    5. 12,000 MJ/hr (11,400,000 BTU/hr) fuel flow HHV
    6. 10.9 MJ/kWh (10,300 BTU/kWh) net heat rate LHV
  4. Exhaust Characteristics
    1. Less than 9 ppmvd (18 mg/m³) NOx emissions @ 15% O₂
    2. 6.7 kg/s (14.7 lbm/s) exhaust mass flow
    3. 280 °C (535 °F) exhaust gas temperature
  5. Dimensions and Weight
    1. 117 in wide x 360 in deep x 119 in high
    2. 17,100 kg (37,700 lbs) weight
