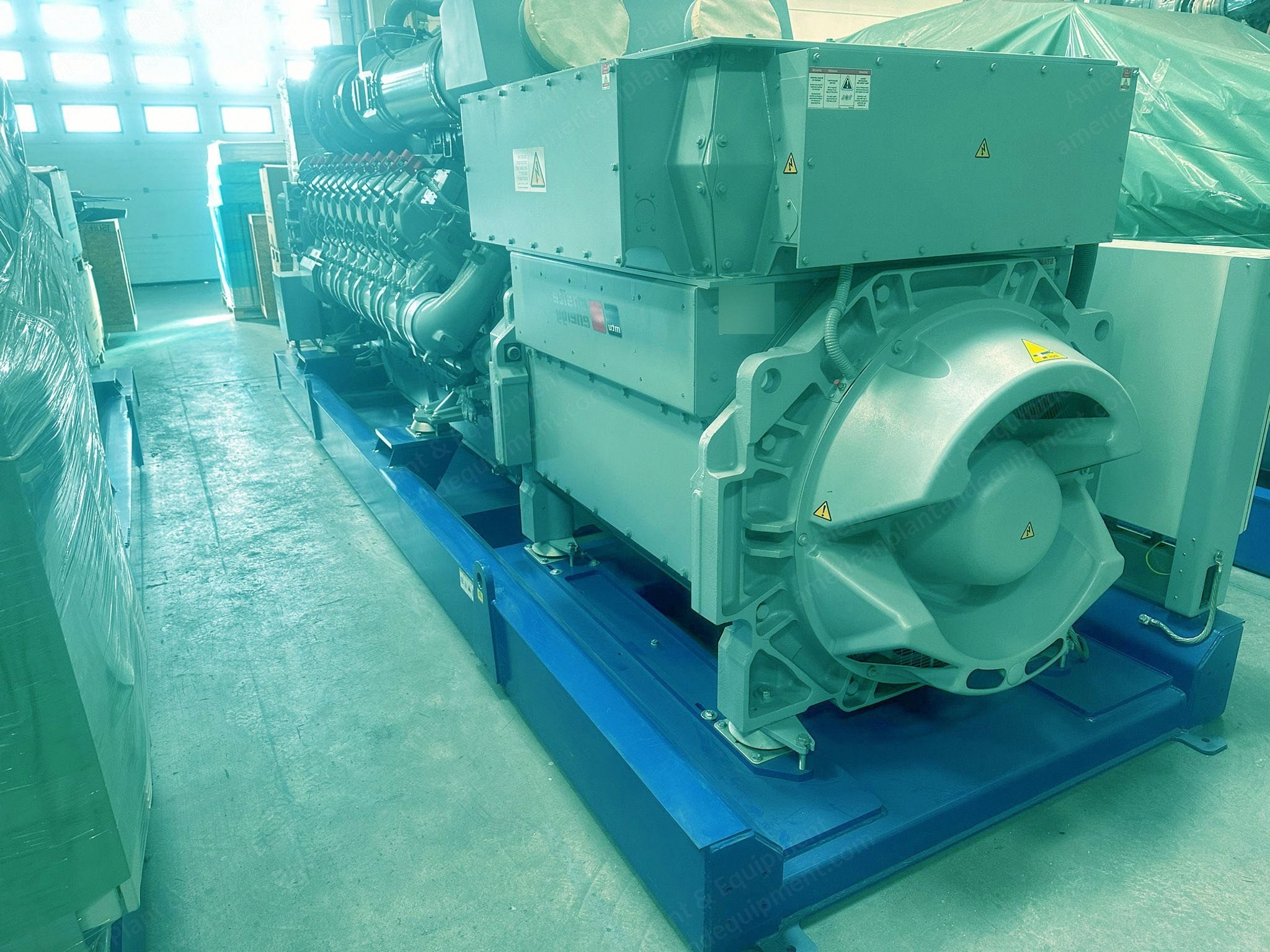

MTU, 20V4000L64FNER, 2024, Natural Gas Genset, 2.5 MW, 50 Hz, 1500 RPM (New)

MTU, 20V4000L64FNER, 2024, Natural Gas Genset, 2.5 MW, 50 Hz, 1500 RPM

Description

  1. Overview
    1. Mtu 20v4000l64fner tr open type natural gas genset
    2. 1 unit 400 v
    3. 2 units 6.3 kv
  2. System Description
    1. Product type gg20v4000d1 mtu 20v4000 gs
    2. Application group 3a - heavy duty, unrestricted, icxn
  3. Power As Per Mtu Sales Program
    1. Power per genset (iso 8528) 2.600 kw
    2. Engine speed 1.500 rpm
    3. Intake air temperature 35 °c
    4. Coolant temperature 58 °c
    5. Altitude 100 m
  4. On-Site Power
    1. Power per genset (iso 8528) 2.600 kw
    2. Engine speed 1.500 rpm
    3. Intake air temperature 35 °c
    4. Coolant temperature 58 °c
    5. Altitude 100 m
    6. Requirements
    7. Frequency 50 hz
    8. Gas type natural gas
    9. Generator voltage 400 v
    10. Engine type 20v4000l64fner
    11. Generator model leroy somer
    12. Island operation yes
    13. Grid guideline no requirements
    14. Methanzahl >= 80
  5. Technical Data
    1. Data-relevant design: technical data sheet - 023290122_290124_q01_2_20l64_2539_50_500_en_si_v1 *)
    2. Power-related data, electrical: electrical power, 100% cp kwel 2539 *)
    3. Engine power iso 3046-1 - 100% a kw 2600 cp
    4. * = contract value, l = limit value, a = design value, r = guideline value
