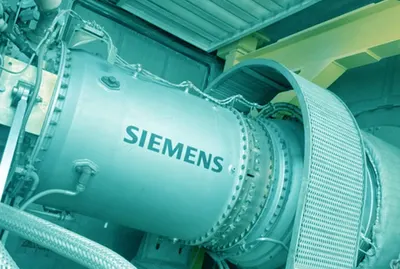

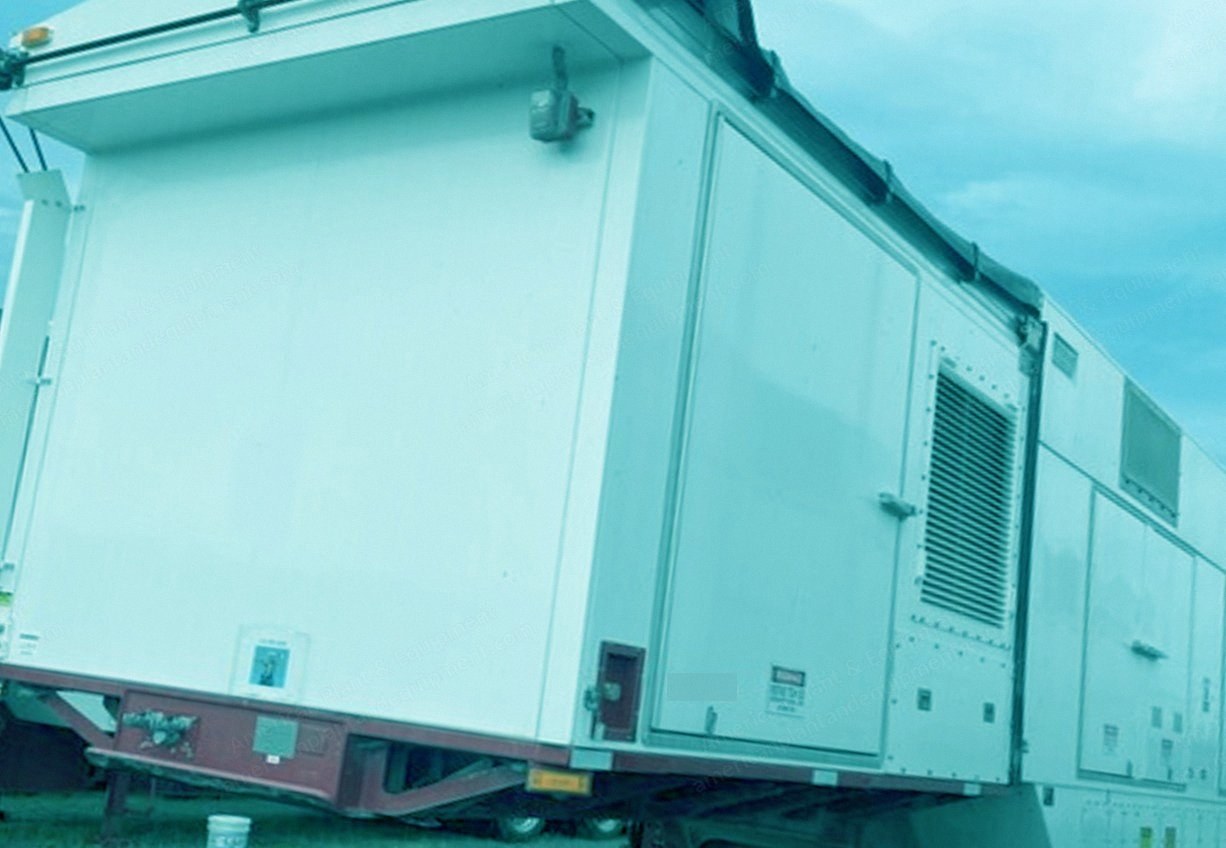

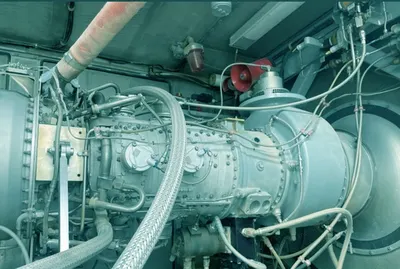

Siemens, SGT-A05 KB7-S, 2020, 5.4MW, 60Hz, Mobile Package, Dual Fuel

Siemens, SGT-A05 KB7-S, 2020, 5.4MW, 60Hz, Mobile Package, Dual Fuel

Description

  1. Specifications
    1. Output power @ iso conditions: 5.7 kva, 2.6 kv, 60 hz
    2. Fuel type: lng, cng, field/line gas
    3. 128,000 lbs
    4. 9’8” wide x 50’ long x 12’8” high
    5. Weight: 58060
    6. Operating hours: 2000-3000
  2. Gas Requirements - Modular Dle Turbine
    1. Max flow rate per turbine: 40-60 mcf per hour
    2. Supply pressure: 270 - 280 psi
    3. Min gas temperature: 36 f above dew point
    4. Max gas temperature: 200 f
    5. Min/max lhv: 800 - 1100 btu
    6. Wobbe index: 1170 ±130 btu/scf
    7. Max liquids: no liquids/moisture/oils permissible
    8. Max particle size: 1 mm
    9. Ethane content: <10%
  3. Gas Requirements - Modular Wle Turbine
    1. Max flow rate: 40-60 mcf per hour
    2. Supply pressure: 270 - 280 psi
    3. Min gas temperature: 30 f above dew point
    4. Max gas temperature: 200 f
    5. Min/max lhv: 600 - 2000 btu
    6. Modified wobbe index: 1040 -1300 btu/scf
    7. Max liquids: no liquids/moisture/oils permissible
    8. Max particle size: 1 mm
