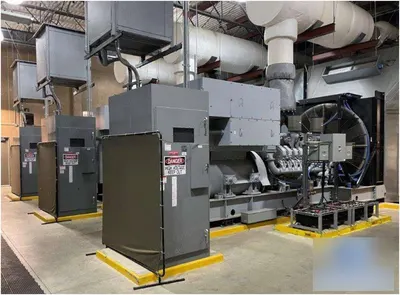

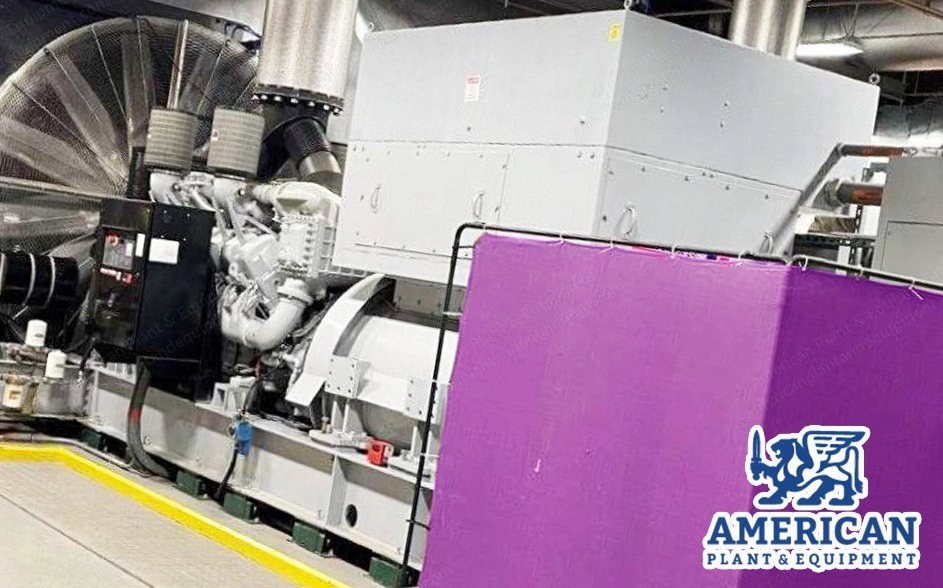

MTU, Generator Package, 14MW, 60Hz, 13800V, 7 Units

Description

Overview
1. Mtu generators
2. 2 mw each (14 mw total)
3. All 7 units parallel together using asco switchgear
4. Almost new
5. Stock for immediate delivery

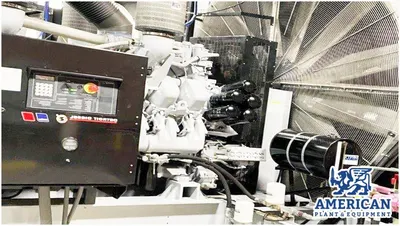

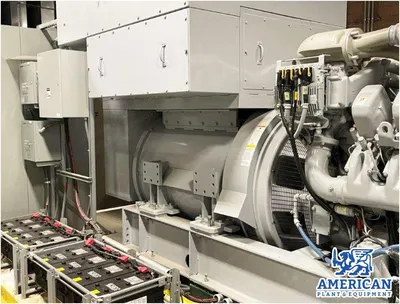

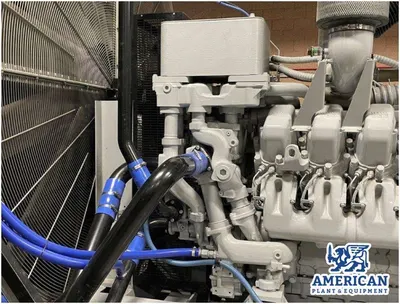

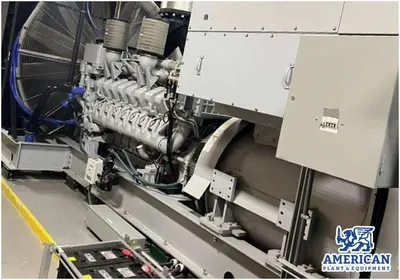

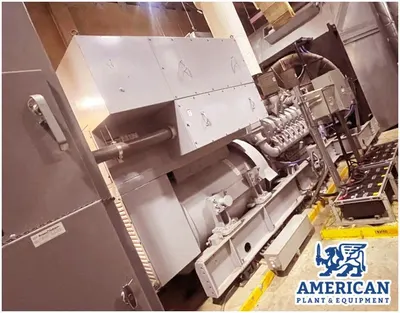

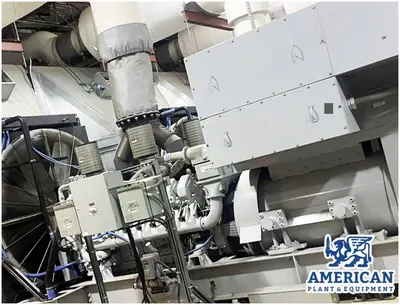

Generator Specifications
1. (4) tier 2, 16v4000 mtu
2. (3) tier 1, t1637m36 mtu
3. 13,800/7,970 vac
4. 3 phase 3 wire 60 hz
5. Short circuit rated 18,000 asym
Engine Hours
1. Tier 1 engines: all less than 1800 hours
2. Tier 2 engines: all less than 1000 hours

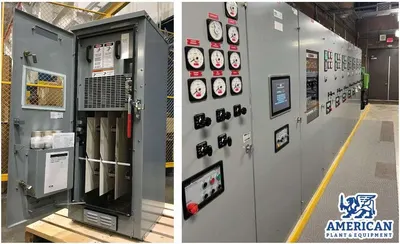

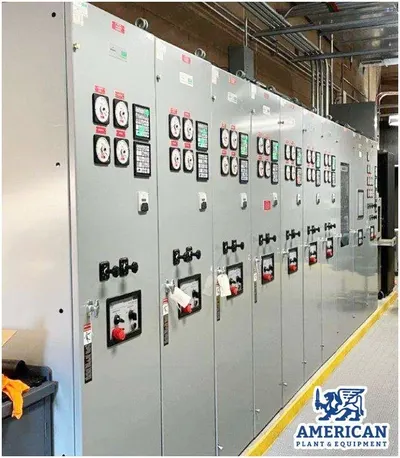

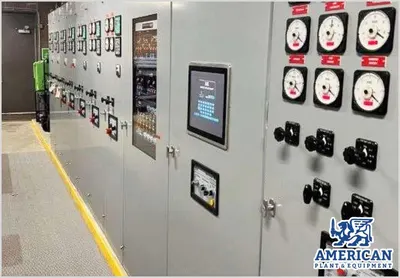

Switches and Switchgear

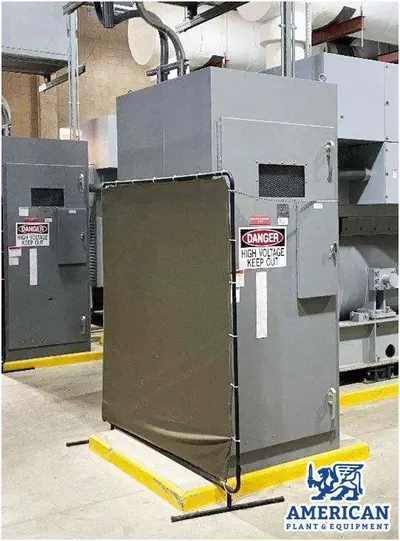

1. Load break fusible switches: (7) switches, 15 kv rated, 200 amps, nema1
2. Stand-alone switches positioned at grade on generator side
3. Asco paralleling switchgear set up for (7) input breakers from generators to main buss
4. (5) output breakers square d mv model vr breakers 1200a, 60 hz, 500 mva rated each fitted with ge multilin 750 feeder management relay and integrated into the asco system

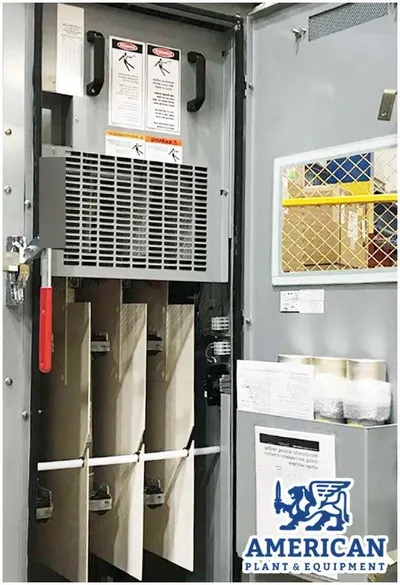

5. 15 kv load break fused disconnects for each generator

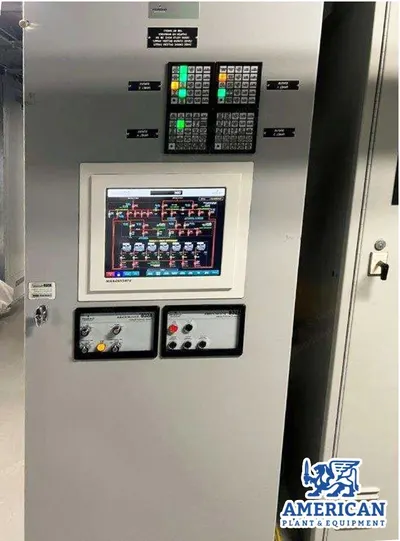

Control System
1. Dc control, trip & charge
2. Each generator is connected to an asco synchpower controller
3. Each generator can be controlled in manual or automatic operation
4. The generator control is equipped with remote operating panels allowing: syncing, load sharing, load shedding

HS code	8502.13

Capacity	14MW Total (7 x 2MW)
Engine Details	(4) Tier 2 16V4000 MTU, (3) Tier 1 T1637M36 MTU
Switchgear	ASCO Paralleling Switchgear, (5) Output Breakers Square D MV Model VR 1200A
