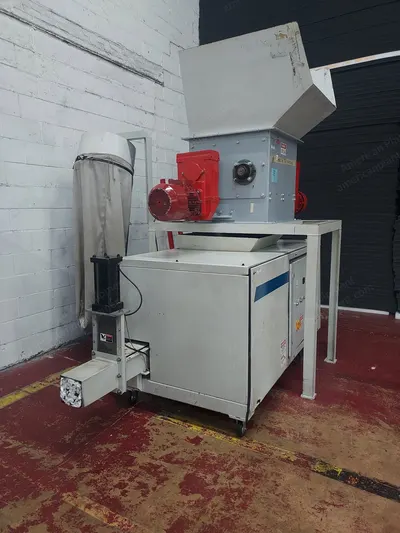

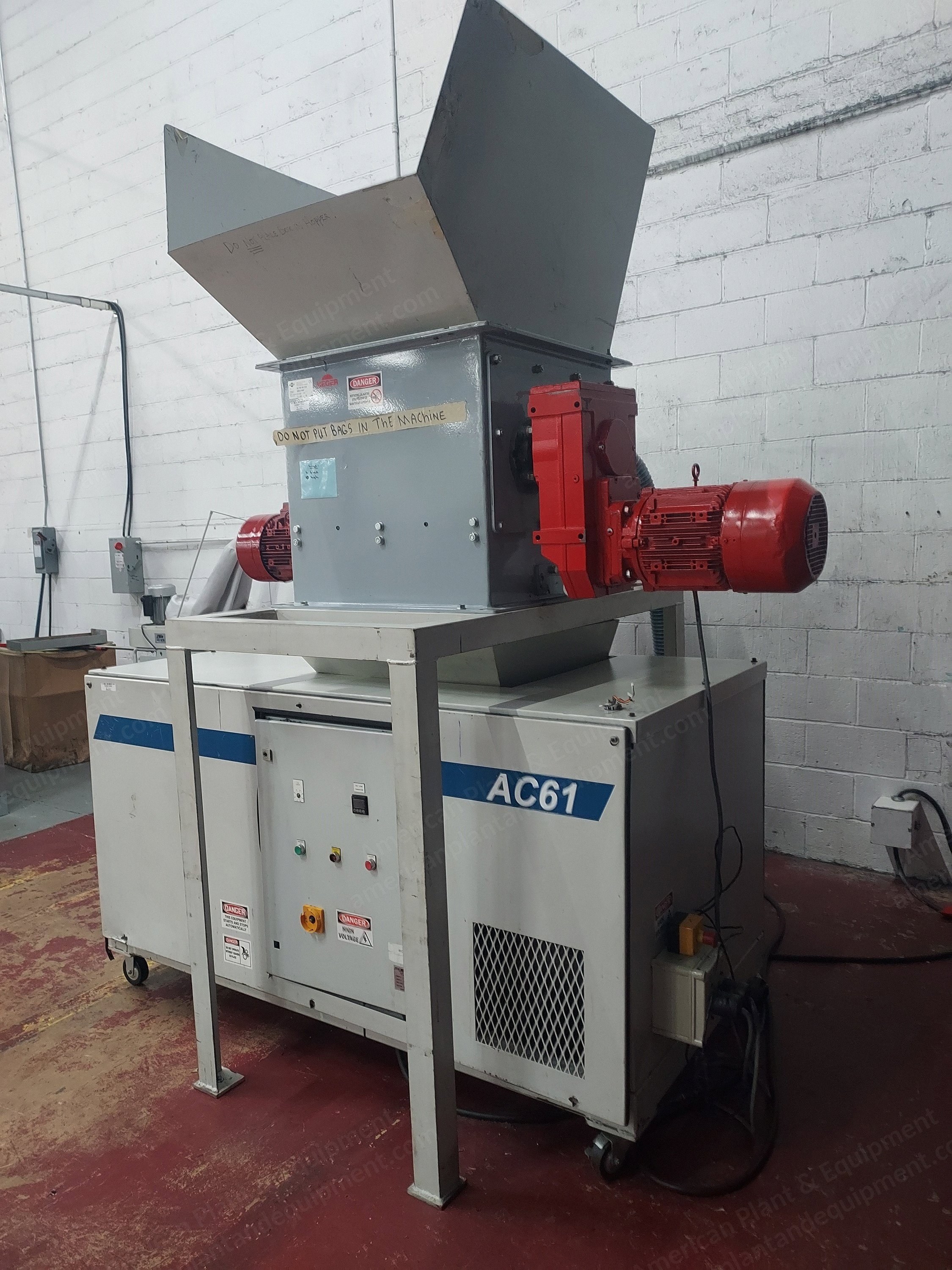

Description Overview Jtw densifier Model ac-61 Year built in 2007 3/60/480 volts Specifications Capacity: 0 to 400 lb/hr Log dimensions: 6” x 6” Log length: adjustable from 8” to 48” L x w x h: 138” x 42” x 83” (approx) Compressed air requirement: 90 psi @ 3 cfm Connection: 3/8" npt female Weight: approx. 3,500 lb Weight: 1588Log dimensions: 6x6 inches Included Components In-feed vacuum blower Dust collector The hopper is 39 x 37 at the top and tapers down to 27 x 27 where the hopper attaches to the shredder This fan is externally mounted beside the unit and provides air flow in the hopper chamber Which pulls material down into the compacting chamber The exhaust air is sent to a filter to catch any contaminants in the air stream
