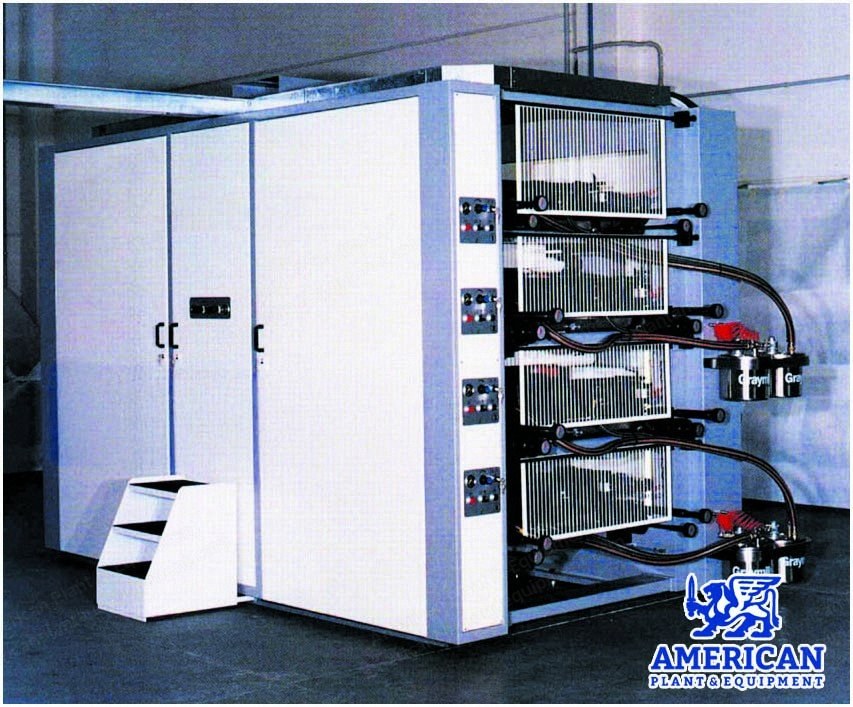

Flexotechnica, Tachys, 2003, 8 Color, 950mm Web Width, CI Flexopress

Flexotechnica, Tachys, 2003, 8 Color, 950mm Web Width, CI Flexopress

Description

  1. Overview

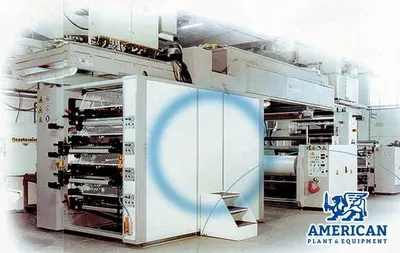

    1. Flexotechnica-Tachys 8 color flexopress
    2. Year 2003
    3. With mounter-proofer
    4. Closed ink chambers
    5. Doctor blade system
  2. Specifications
    1. Print repeat from 280mm to 650mm
    2. Speed: 250 meters per minute, depending on job
    3. Gear 10mm step

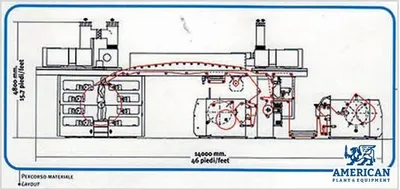

    4. Dimensions: length 14480mm x height 4820mm x width 5500mm
  3. Unwinding and Rewinding

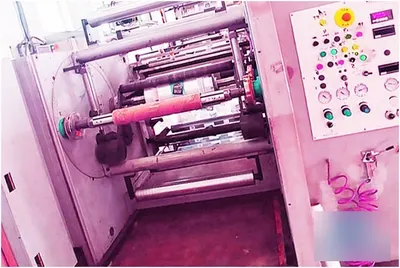

    1. Double simple unwinder with tension control
    2. Double automatic rewinder with turret
    3. 3 zones of tension control
  4. Web Handling and Quality Control
    1. Corona treatment
    2. BST guide before drum
    3. BST guide before rewinder
    4. Banana roller
    5. Chill roller
    6. 3 chip camera system, with additional inspection unit
    7. Slitting unit
    8. Drum temperature controller
  5. Changeover and Auxiliary Equipment

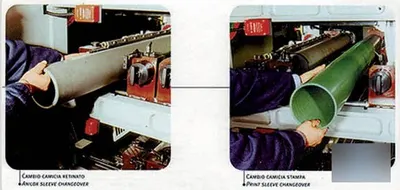

    1. Quick anilox and sleeve change
    2. Electrical ink pumps
    3. Approximately 200 sleeves and 22 anilox-cylinders
  6. Optional Equipment
    1. Optional mounter-proofer, width 1500mm, year 2005 (separate cost)

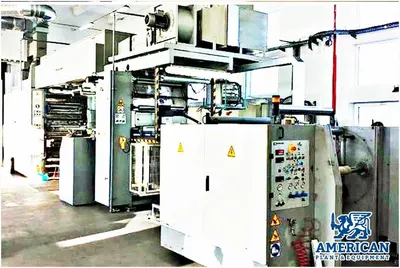

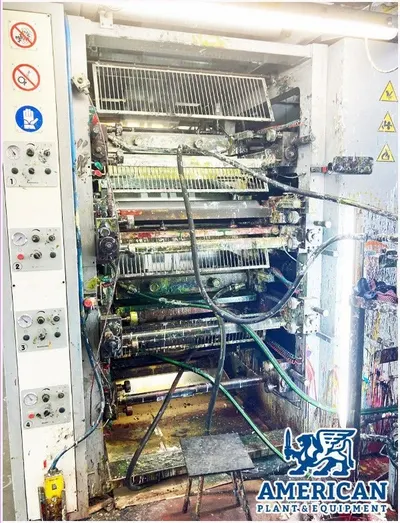

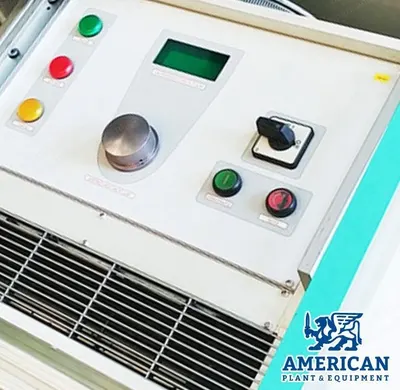

  7. Images
