Babcock, 1988, 3400mm Width, 7 Chambers, Gas Fired, Combined Pin & Clip Chain

Description

Overview

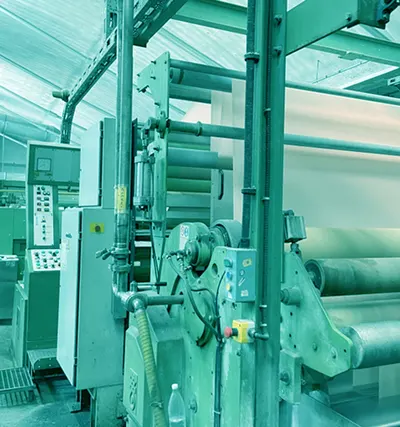

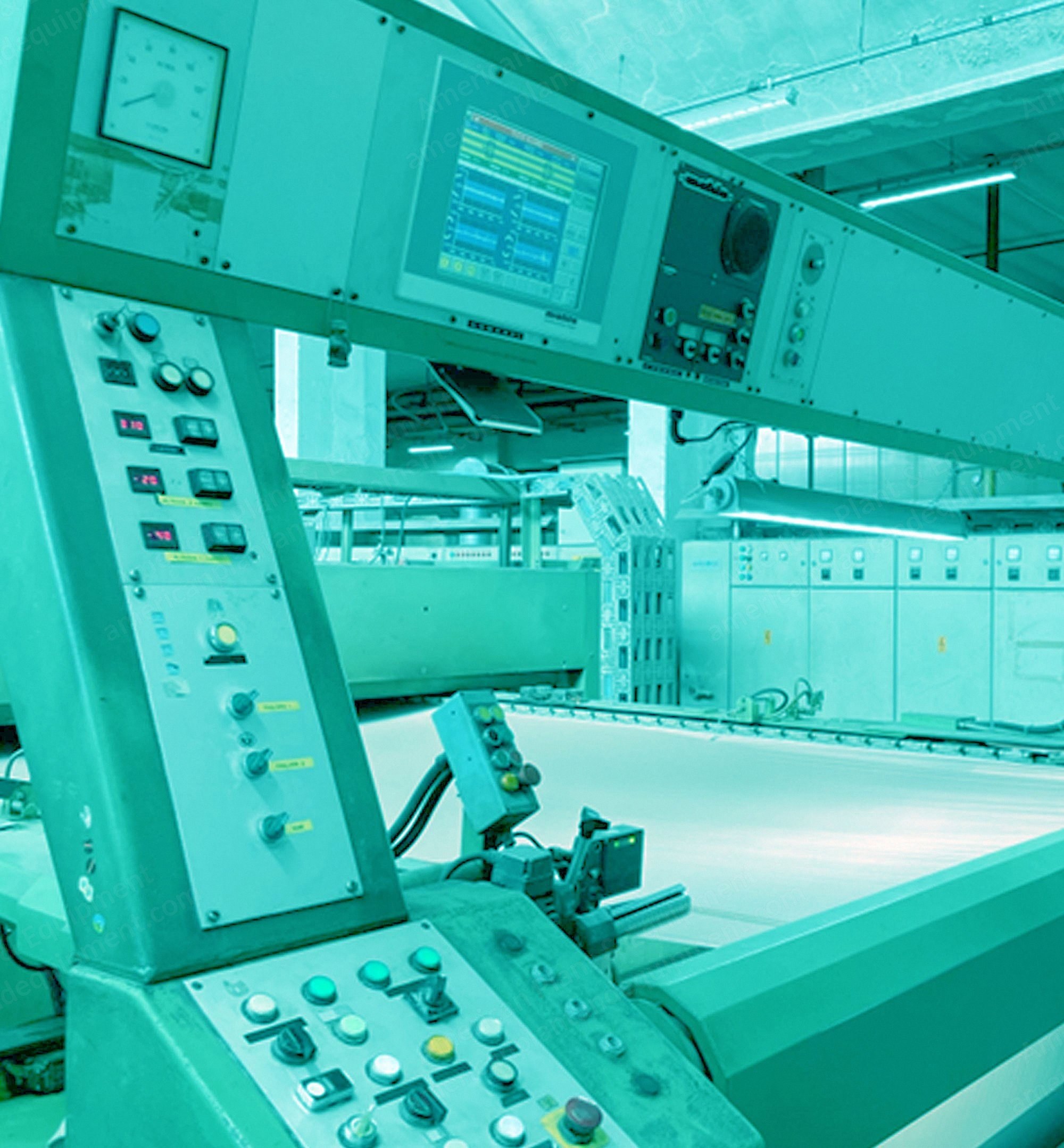

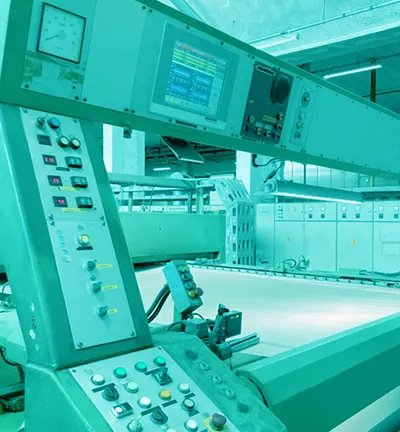

1. Babcock stenter frame
2. Working width 3200 mm
3. Year 1988
4. 7 chambers
5. Gas fired
6. Combined pin and clip chain (only clips installed)
7. Entry from a batcher to small Kusters wash box
8. Erhardt and Liemer guiders
9. Invertor driven
Padder and Weft Straighteners
1. 2 x Kusters 2 bowl padder
2. Mahlo weft straightener RFMC-10AP year 2005 (8 reading heads)
3. Mahlo weft straightener at exit equipped with 4 reading heads
4. Mahlo humidity sensor
Winder and Accumulator
1. Corino cylinder and accumulator
2. Corino two position surface winder with traversing roller E and L installed in year 2019
Condition and
1. Running on factory floor
2. Excellent condition
Specifications
1. Nominal width: 3400mm

Entry Components	Batcher, Small Kusters wash box, Erhardt & Liemer guiders, 2 x Kusters 2 bowl padder
Exit Components	Corino cylinder and accumulator, Corino two position surface winder with traversing roller E & L installed in year 2019
Features	Combined Pin & Clip Chain (only clips installed)
Weft Straighteners	Mahlo RFMC-10AP Year 2005 (8 reading heads) at entry, Mahlo with 4 reading heads at exit

Width	3,400 mm
Working width	3,200 mm
