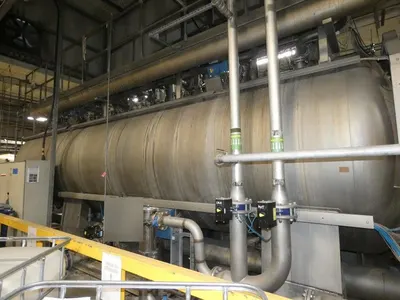

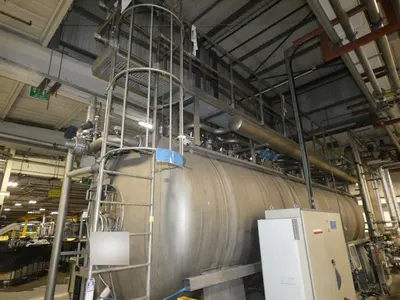

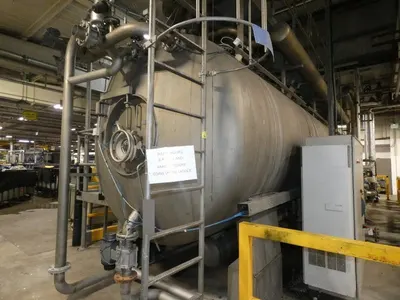

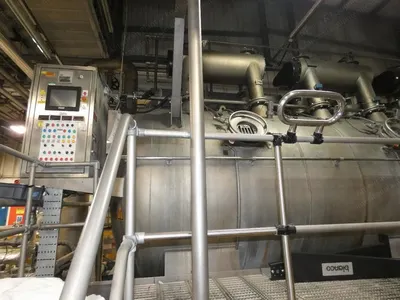

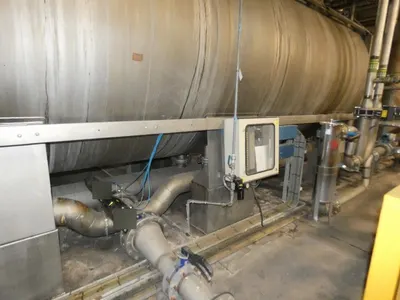

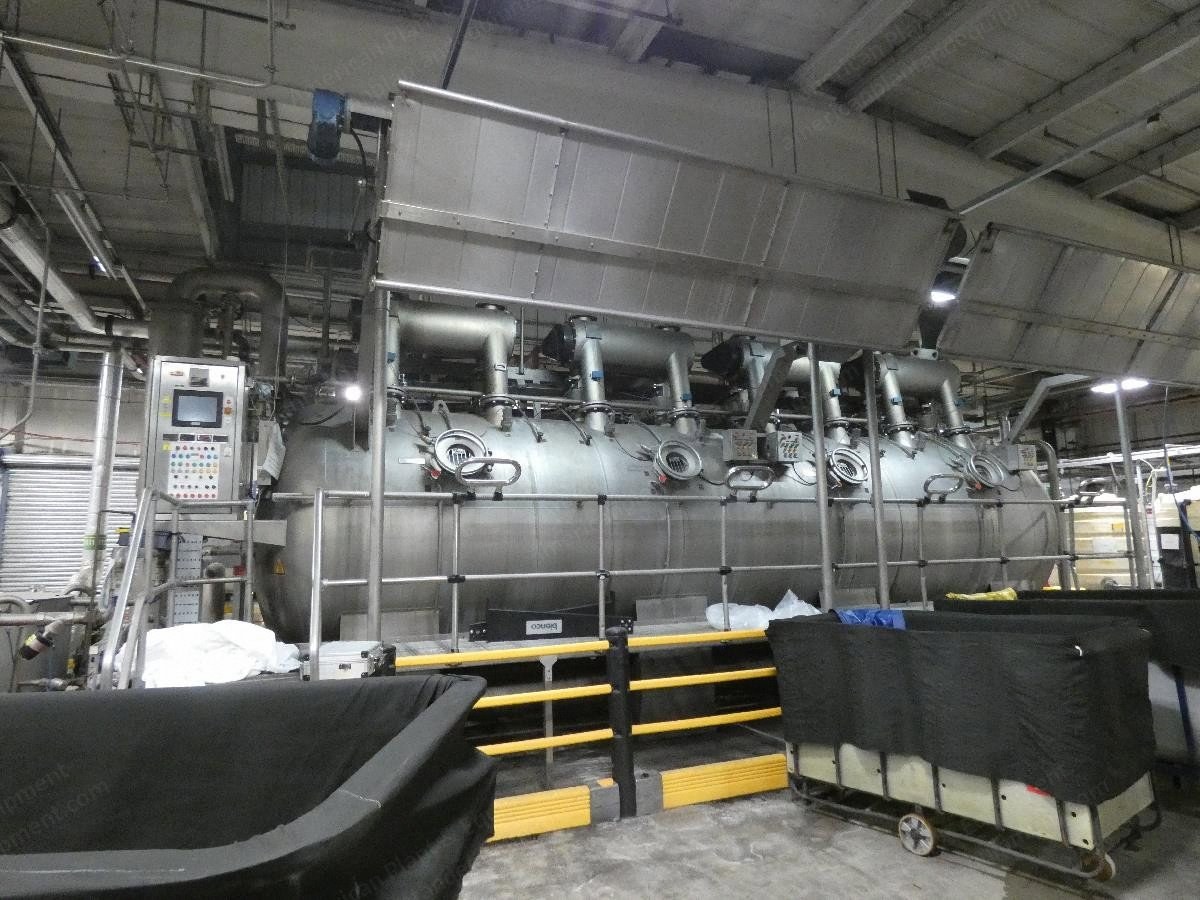

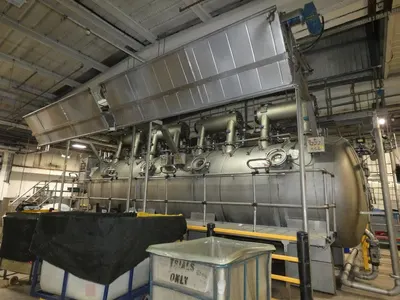

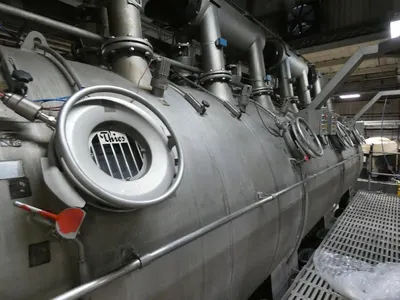

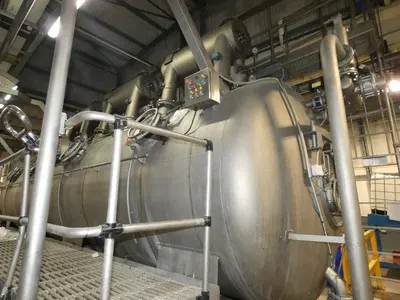

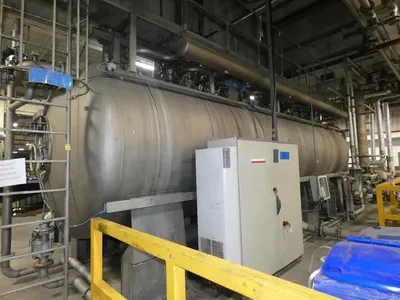

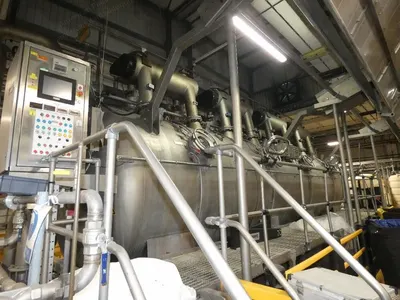

Thies, Eco-Soft Plus 140/4-DS/PL, 2007, 2 Tonne, 4 Double Winches, 140 Degree C Max Temp

Thies, Eco-Soft Plus 140/4-DS/PL, 2007, 2 Tonne, 4 Double Winches, 140 Degree C Max Temp

Description

  1. Overview
    1. Thies Eco-Soft Plus
    2. Type: 140/4-DS/PL
    3. Year of manufacture 2007
    4. Dyeing of woven and knitted fabrics
    5. Liquor ratios 1:5 to 1:10
  2. Specifications
    1. Maximum temperature of 140 degree C
    2. X4 double winches, 8 ropes
    3. Rope weight 100 to 250 kg
    4. Internal plaiter speed of 30 r.p.m at 50 Hz
    5. Winch fabric speed adjustable 40-400 m/min
    6. Nozzle pressure can be adjusted using throttle flap or differential pressure average between 0.5-1.0 bar

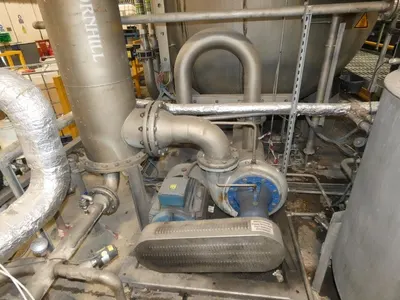

    7. Circ pump designed for an average liquor volume of 500-1000 l/min

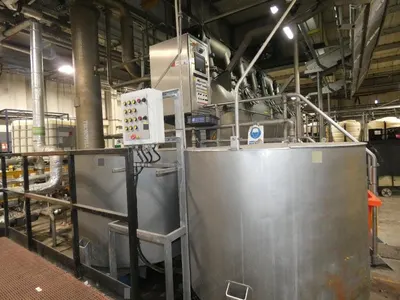

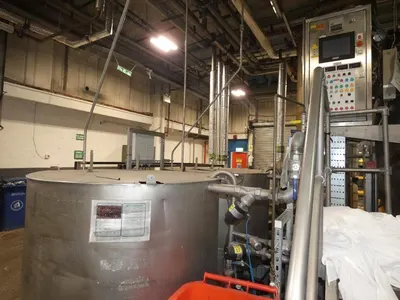

    8. Unloading speed max 100 m/min x2 1400 ltr side tanks
    9. Electrical supply: 3 phase 380-440 V, 50 Hz
    10. Capacity: 2 Tonne
  3. Condition
    1. All manuals available in the factory (if any)
