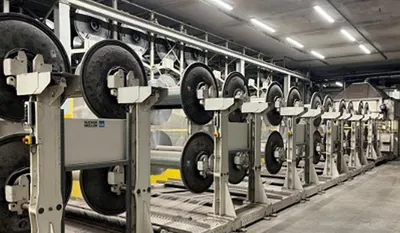

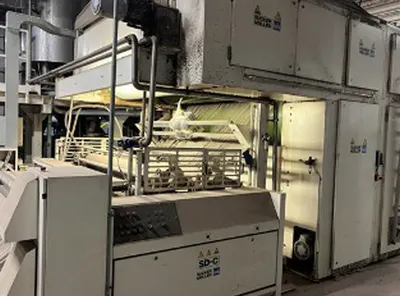

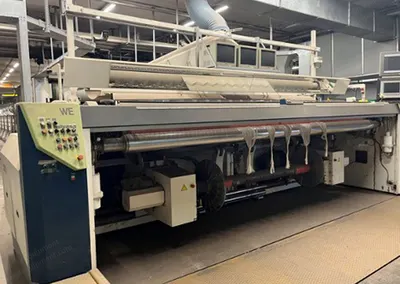

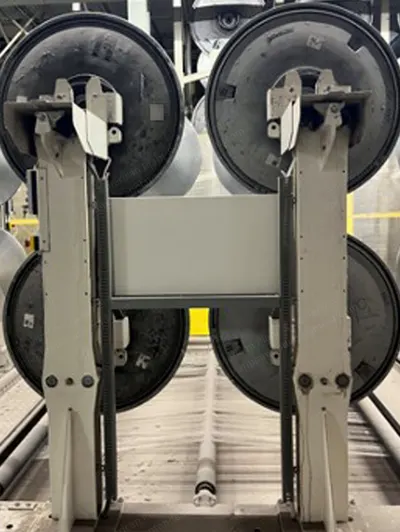

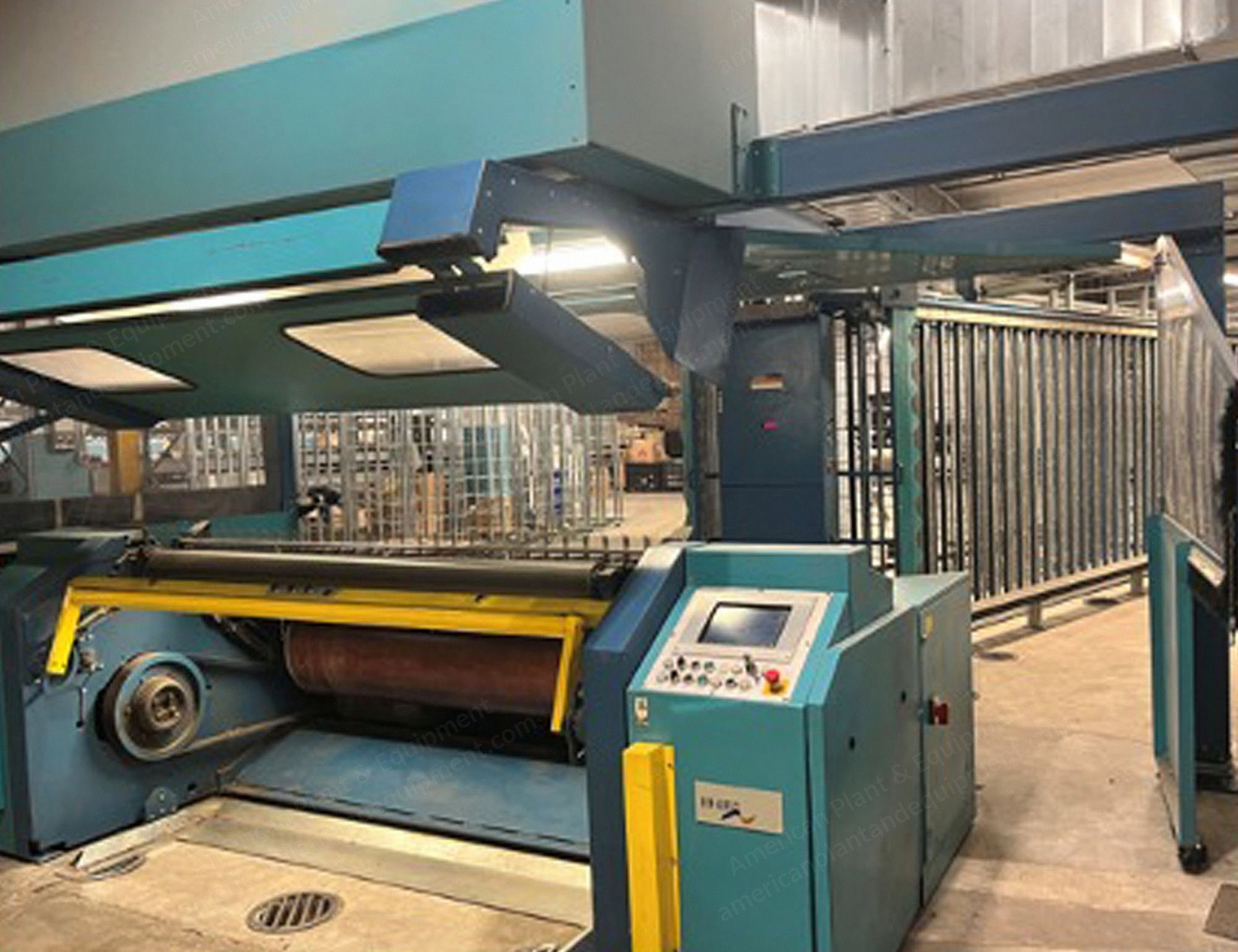

Description Overview Sizing machine brand Sucker-Muller-Hacoba Width 4200 mm Year 2002 Suitable for plain and terry looms Moisture meter model EMC9 supplied by Mahlo to automatically set the machine speed Electronic beaming model WE-12 PC Specifications Cylinders width 4400 mm Beam flange diameter 700 to 1270 mm Max beaming width about 4000 mm Working speed 10-160 m/min Beaming tension without pressure roller 400-11200 N Beaming tension with pressure roller 400-10400 N Max tension on separation rods 7470 N Pressure roller capacity 300-6000 N Separation field length 8000 mm No. 23 separation rods Sizing Box Model SD-C 40 Cylinders width 2200 mm Useful working width 2000 mm No. 2x2 squeezing rollers No. 2 dipping rollers Max squeezing pressure into the main squeezing rollers 40 kN Telecoll device to measure and regulate the amount of size consisting of integrated SW and Pleva Sizing Dryer Cylinders Module model Delta ZM 2/2-6 Drying cylinders width 2200 mm, useful working width 2000 mm With 10 drying cylinders, diameter 800 mm, thickness 3.0 mm Max operating pressure 5.0 bar No. 7 cylinders covered by Teflon No. 4 heating groups Extraction hood installed above the dryer Sizing Beams Creel Machine inlet for direct warping beams from metallic framework model AM-24 No. 24 positions, flange max diameter 1000 mm Direct beams width 2000 mm, pneumatic block brake Alternatively, inlet for sectional warping beams with unwinding device model AP Flange max diameter 1000 mm, max width expansion 2000 mm Working tension 200-2000 N Unwinding regulator device model AC300 to measure the unwinding tension, adjustment range up to 2700 N Measuring system composed of 2 rollers, one guide roller, one dance roller, nominal width 2200 mm, diameter 100 mm Kitchen Tank One mixing tank with motor and one store tank of 10 L Tanks are made of steel metal Direct Warper / Fractional Warper Benninger model Ben-Direct, year 2002 Direct warping machine Benninger, type Ben-Direct, nominal width 2000 mm Beam diameter 1000 mm, max warping speed 1200 m/min Beaming pressure from 2000 to 6000 N Equipped with Cleanvac dust extraction system Warper Creel The machine is combined with a Ben-Creel V With autostop braking system 1024 operating cones, 1088 spare cones Vertical and horizontal gauge 270 x 240 mm, peg length 180 mm With manual cutting device 40 direct warping beams will be provided with the machine
