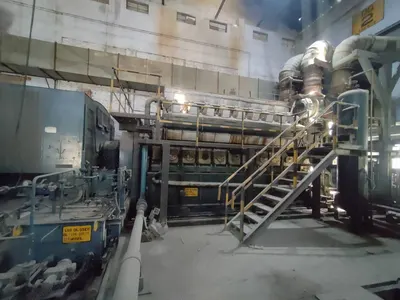

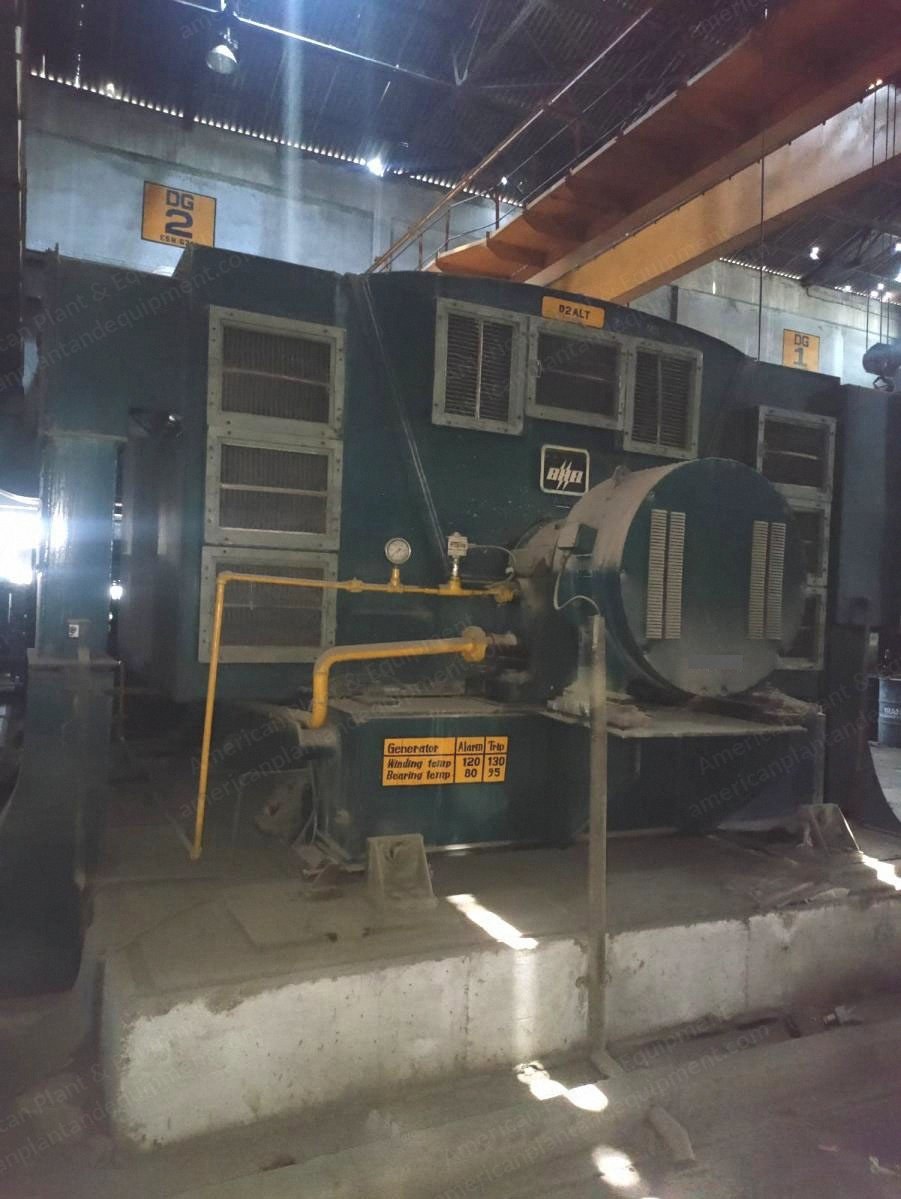

Description Overview Wartsila 18v32d hfo fired generator set Year 1995 Type 18v32d Hfo fired generator set 6 mw Voltage of 6.6 kv Immediate delivery Excellent condition Technical Specification Engine details Alternator details Engine Details Engine: 6mw-dg2 and 6mw-dg1 Brand: Wartsila Type: 18v32d Power capacity: 6 mw Rpm: 750 Manufacturing year: 1994 to 1995 Installation year: 1996 Last overhauling done: 2011-12 Running hours before o/h: 55-60000 hours approx and 65000 hours approx Running hours after o/h: 70 hours to 100 hours Fuel: Hfo Alternator Details Brand: Bhel and jyoti ltd Type: Thgb195-8-d5 Kw/kva: 6000/7500 Rpm: 750 Phase/hz/pf: 3p/50c/s/0.8pf: 3p/50c/s/0.8pf Volt: 6600 Stator amps: 656 amps Excitation volts: 225 volts Excitation amps: 350a Insulation class: F Scope Of Supply - Dg Set 1 D.g set - 1 Wartsila d.g Type: 18v32 Rpm: 750 Generator: brand: jyoti Kw: 6000 Kva: 7500 Volts: 6600 Amps: 656 Rpm: 750 Lub. oil separator unit: brand: alfalaval Type: Mopx-207 Control unit: Dcu-30 Capacity: 2000 lph Kw: 7.5 L.o. filter: brand: finn-filter-oy Type: Ffp Filt.design.pr: 11.0bar Filter working pr.: 8.0bar Working temp.: 100degc Filt filtration size: 30 Filt. surface area: 150 Filter flow media: Hsd L.ophe: brand: alfalaval Model: Ak20fm Type: Plate heat exchanger Pr.bar: 10 Working temp.: 110deg. Lt water phe: brand: alfalaval Model: Ak20fm Type: Plate heat exchanger Pr.bar: 10 Working temp.: 110deg. No. of plates: 174(l-735) Ht water phe: brand: alfalaval Model: Ak20fm Type: Plate heat exchanger Pr.bar: 10 Work temp.: 110deg. No of plates: 50, l-22mm Pre lube pump: brand: imo Type: Screw Model: Acg60-2n3f Kw: 11 Pump head: 33m Pressure: 2.0kg/cm2 Rpm: 2900 Air receiver tank: design pr.: 33.6kg/cm2 Test pr.: 50bar Full water wt.: 1000kg Turbo charger a bank.: brand: abb Type: Vtr354-11 No.ht: 830041 Turbo charger b bank.: brand: abb Type: Vtr354-11 No.ht: 394729 Governor: brand: woodward Type: Pgg-58 Gov. dr. set speed: 853-122 Engine speed: 750 Fuel feeder unit: lpm: 35 Kw: 3.7 Aircomp.unitl: brand: ingersoll rand Model: 15t2 Kw: 22 Pressure: 30bar Hfo separator: brand: alfalaval Type: Mopx-308sgt-24 Cont unit: Epc-400 Cap.: 3500lph Revolution: 118-125 Motor: 30 Rpm: 1500 Fo transfer unit: capacity: 2.2kw Scope Of Supply - Dg Set 2 D.g set - 2 Wartsila d.g Type: 18v32 Rpm: 750 Generator: brand: bhel Kw: 6000 Kva: 7500 Volts: 6600 Amps: 656 Rpm: 750 Lube oil separator unit: brand: alfalaval Type: Mopx-207 Control unit: Dcu-30 Capacity: 2000lph Kw: 7.5 L.o. filter: brand: finn-filter-oy Type: Ffp Filt.design.pr: 11.0bar Filter working pr.: 8.0bar Working temp.: 100degc Filt filtration size: 30 Filt. surface area: 150 Filter flow media: Hsd L.ophe: brand: alfalaval Model: Ak20fm Type: Plate heat exchanger Pr.bar: 10 Working temp.: 110deg. Nos. of plates: 154 (l-647mm) Lt water phe: brand: alfalaval Model: Ak20fm Type: Plate heat exchanger Pr.bar: 10 Working temp.: 110deg. No. of plates: 174(l-735) Ht water phe: brand: alfalaval Model: Ak20fm Type: Plate heat exchanger Pr.bar: 10 Work temp.: 110deg. No of plates-: 50,l-22mm Pre lube pump: brand: imo Type: Screw Model: Acg60-2n3f Kw: 11 Pump head: 33m Pressure: 2.0kg/cm2 Rpm: 2900 Air receiver tank: design pr.: 33.6kg/cm2 Test pr.: 50bar Full water wt.: 1000kg Turbo charger a bank.: brand: abb Type: Vtr354-11 No.ht: 830041 Turbo charger b bank.: brand: abb Type: Vtr354-11 Governor: brand: woodward Type: Pgg-58 Part no.: 8575-956 Gov. dr. set speed: 853-122 Engine speed: 750 Fuel feeder unit: lpm: 35 Kw: 3.7 Air comp. unit1: brand: ingersoll rand Model: 15t2 Kw: 22 Pressure: 30bar Hfo separator: brand: alfalaval Type: Mopx-308sgt-24 Cont unit: Epc-400 Cap.: 3500lph Revolution: 118-125 Motor: 30 Rpm: 1500 Fo transfer unit: capacity: 2.2kw Other Auxiliaries Hfo tanks: Na Hfo sludge tanks: Na Cooling tower: Na Coolingwaterpumpsets-3 nos.: Na Hfo separators-2 nos.: Available Hfo unloading pump set-1 no.: Na Hfo transfer pumps-2 nos.: Na Hfo feed pumps-2 nos.: Available Booster unit -2nos.: Available Hfo filter unit-2 nos.: Available Pre-lube pump-2 nos.: Available Heat exchangers-phe: Available Water preheater unit-2 nos.: Available Lube oil seperator-2 nos.: Available Charge air filter unit: Available
