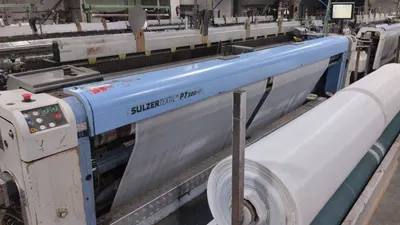

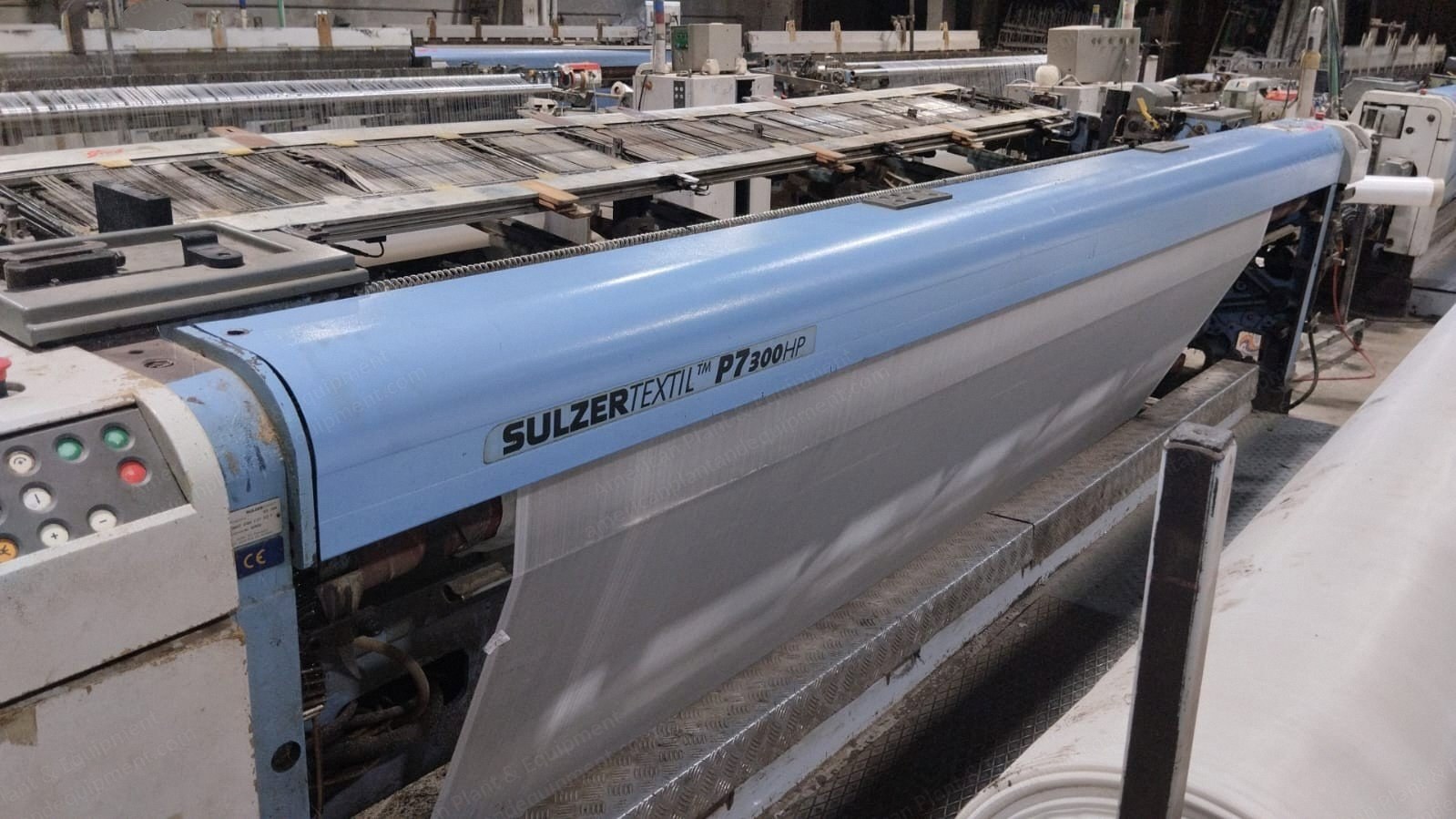

Sulzer, P7300 B 360 2 EP D12 R, 2003-2006, 3600mm Working Width, 2 Colors, Cam Shedding, Denim

Sulzer, P7300 B 360 2 EP D12 R, 2003-2006, 3600mm Working Width, 2 Colors, Cam Shedding, Denim

Description

  1. Overview
    1. Brand: Sulzer
    2. Model: P7300
    3. Type of fabric: Denim
    4. Shedding mechanism: Cam
    5. Complete model written on name plate: P7300 B 360 2 EP D12 R
  2. Specifications
    1. Working width: 3600 mm
    2. Number of colors: 2
    3. Number of prewinder per set: 2
    4. Picking degree: 110
    5. Machine structure: Re-inforced
    6. Shedding motion brand: Sulzer
    7. Shedding motion model: EP
    8. Shedding motion capacity: 10
    9. Shedding motion installed capacity: 10
    10. Selvedge type: Leno
    11. Let-off motion: Electronic
    12. Warp beam diameter: 1000 mm
    13. Number of frames supplied: 10
    14. Number of warp beam supplied: 1.5
    15. Number of warp stop bar: 6
    16. Cloth take-up type: Batching motion
    17. Beam type: Twin
    18. Projectile type: D12
    19. Number of back rest roll: 1 (torsion type)
  3. Year And Sets
    1. 11 sets from year 2003 to 2004
    2. 9 sets from year 2006
  4. Condition
    1. Machine running: RPM 330-360
    2. Machines running in very good condition
