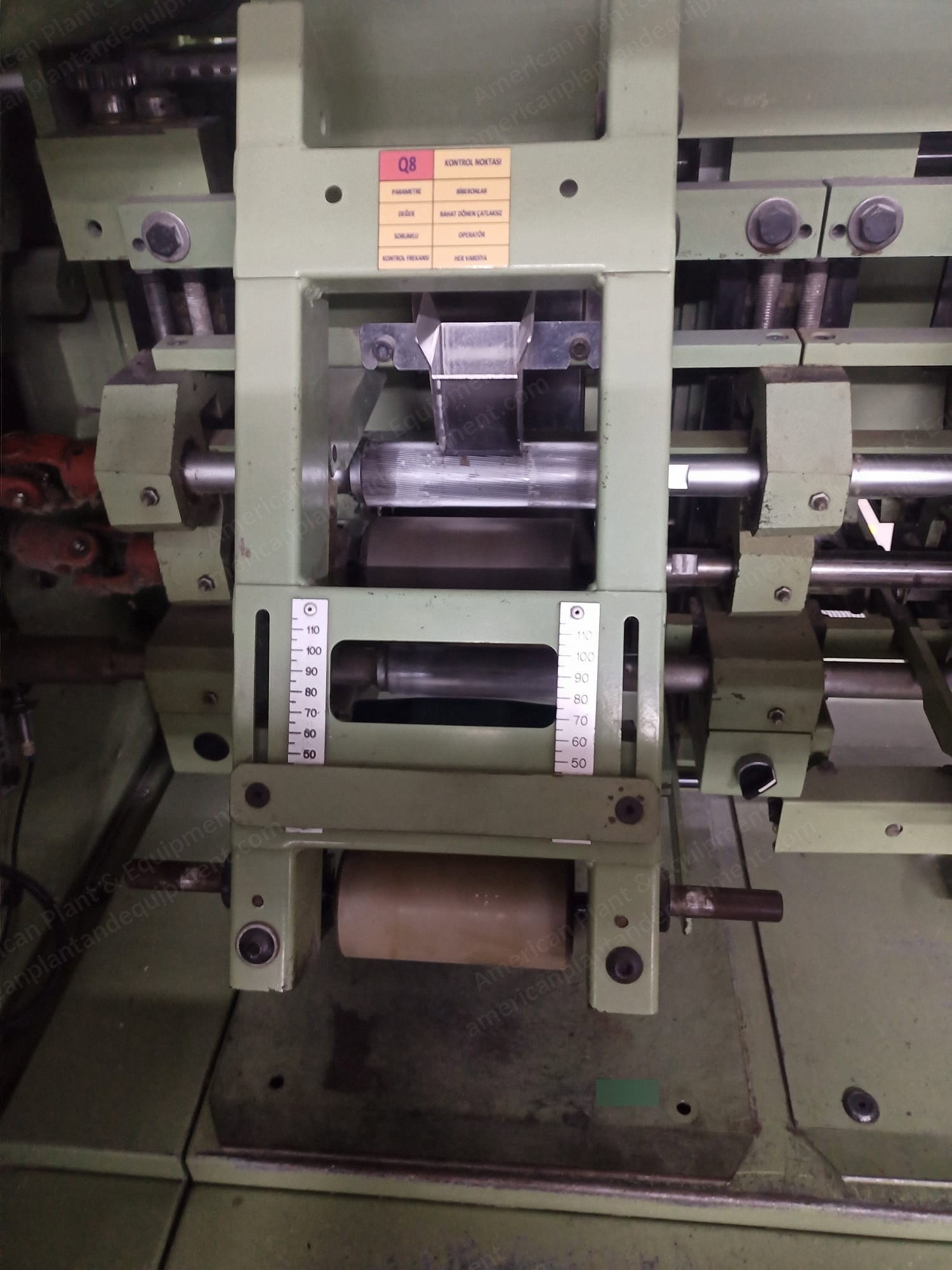

NSC, GV20M, 2002, Drafting Machine, Double Cans 700x1000mm, Max Speed 280 m/min

Description

Overview
1. Machine task: Doubling/drafting
2. Machine type: Drafting machine, preparation passage
3. Machine model: NSC-GV20M
4. Year: 2002
Specifications
1. Maximum speed: 280 m/min
2. Doubling: 4 x 4
3. Drafting: 4.5 to 13.2
4. Nip distance: 40 to 110 mm

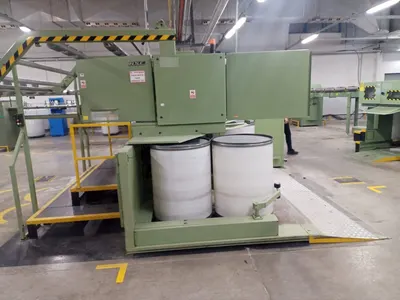

Coiler and Cans
1. Coiler type: Double cans - 2 can x 2 end (in 1 can)
2. Cans type: 700 x 1000 mm

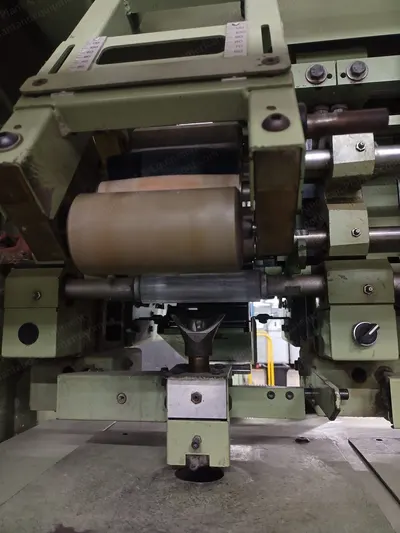

Front Side Faller
1. Front side faller type: Apron

Cans Type	700 x 1000mm
Coiler Type	Double Cans - 2 Can x 2 End (In 1 Can)
Front Side Faller Type	Apron
Machine Task	Doubling/Drafting
Type	Drafting Machine, Preparation Passage

Nip Distance	40-110 mm
