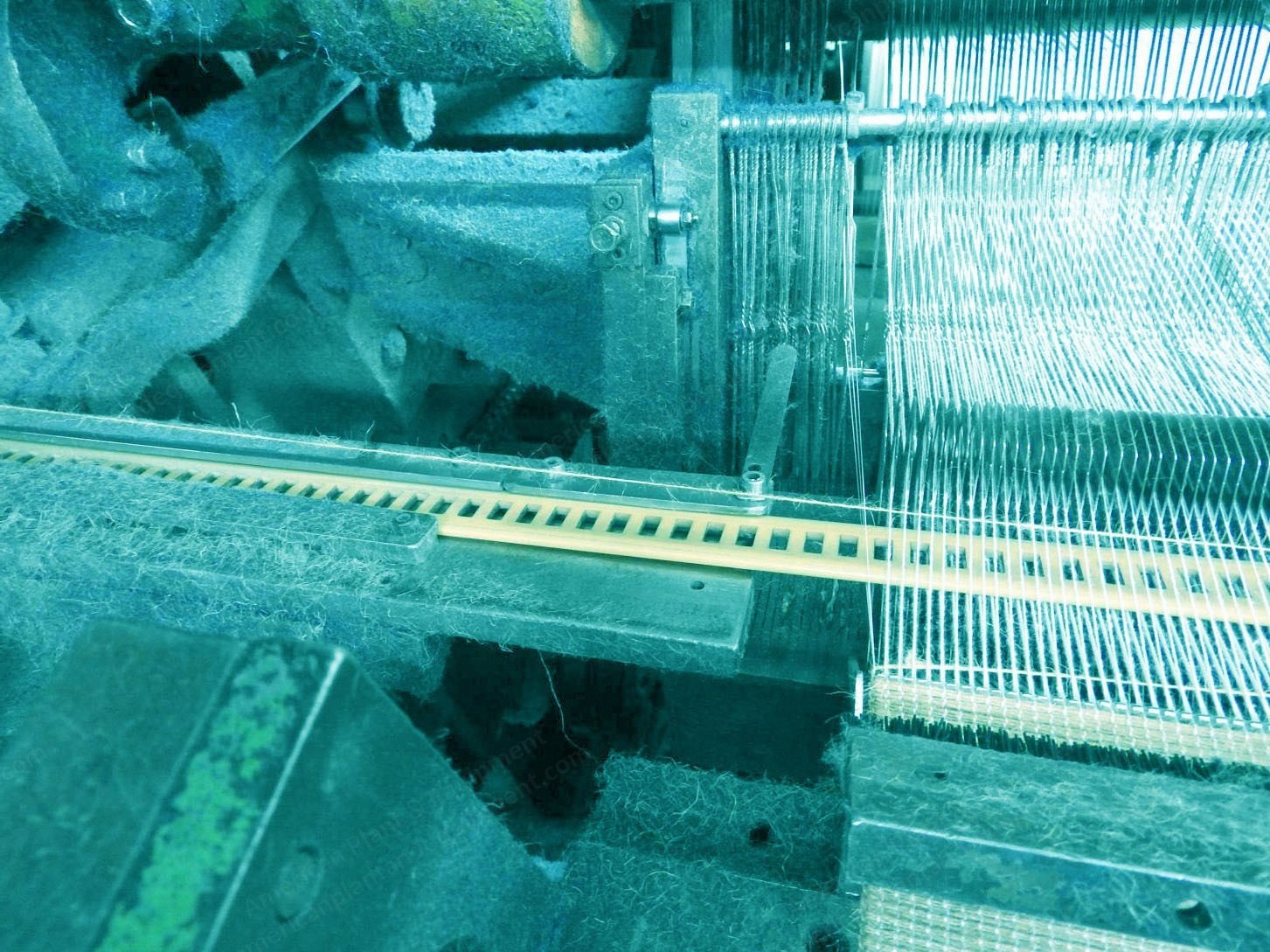

Crabtree, Stage IV, 2004, 4000mm Working Width, 1 to 11 Colors, Jacquard Carpet Loom

Crabtree, Stage IV, 2004, 4000mm Working Width, 1 to 11 Colors, Jacquard Carpet Loom Sold

Description

  1. Overview
    1. Axminster Crabtree stage IV carpet looms
    2. Type: jacquard loom
    3. Years: 1995 (sold) and 2004 (under option 6/5/25)
  2. Specifications
    1. Working width: 4000 mm
    2. Colors: 1 to 11
    3. Reed density: 7 pitch per inch; 276 pitch per meter
    4. Linear qualities: 7 rows per inch to 12 rows per inch
    5. Pile length at draw off: 21-29
    6. Speed: 10-11 picks per minute
    7. Nominal speed: 0.8 - 2.6 m/h
    8. Efficiency: 2 m/h
    9. Wool type used: 330x2-300x3 pile - wool weft - jute, pp
    10. Max. power: 7.5 kW
    11. Power supply: AC 240/400 V, 50 Hz
  3. Dimensions And Weight
    1. Length of the loom without frame: 5450 mm
    2. Width: 3050 mm
    3. Height: 4320 mm
    4. Weight: 18450 kg
  4. Features And Components
    1. Jacquard: Crabtree (original)
    2. Rapier: elastic rapier powered by Lenze step motor
    3. Camera matrix detectors of missing ends
    4. Machine can make any design wanted controlled by jacquard
