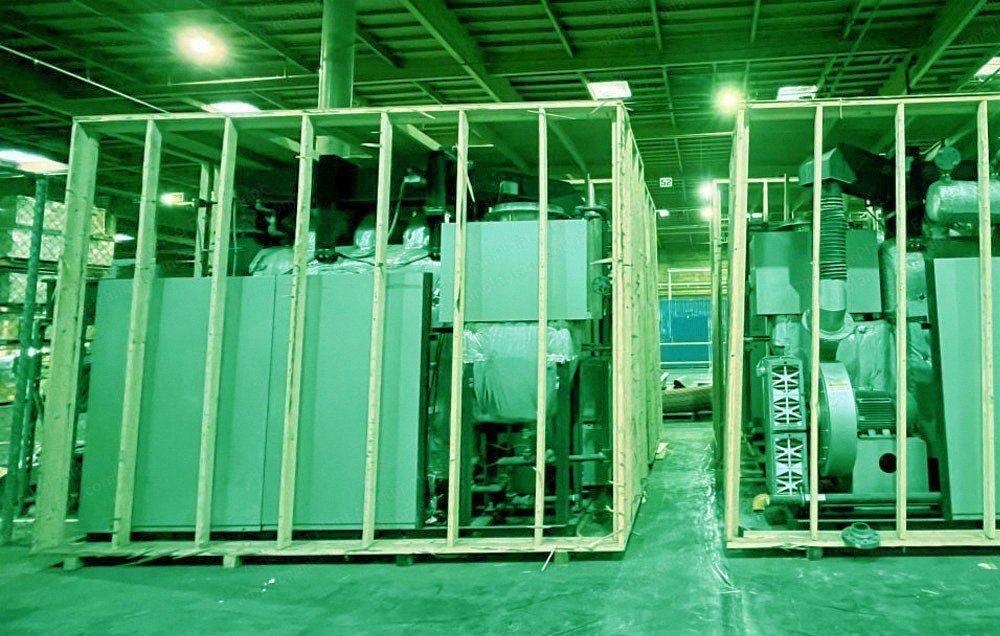

Miura, LXH-300, Gas-Fired Steam Boiler, 300 BHP, 30 PSI, Water Tube

Miura, LXH-300, Gas-Fired Steam Boiler, 300 BHP, 30 PSI, Water Tube

Description

  1. Overview
    1. Miura LXH-300 is a high-pressure, gas-fired steam boiler.
    2. Water tube, capacity of 300 boiler horsepower (BHP).
    3. Rated 30 PSI.
    4. Producing an equivalent output of 6900 to 10,350 lb/hr and a maximum heat output of 10.043 mm BTU/hr, with a heating surface area of 613 ft² and a turn-down ratio of 4:1 (25%).
    5. The boiler is compatible with natural gas or propane, requiring a fuel supply pressure of 3-5 PSIG and a heat input of 11.678 MMBTU/hr, delivering an efficiency of 86%.
    6. It maintains flue gas excess oxygen at 5.0% with a flue gas temperature of 230°F.
    7. Emissions include NOx levels of 20 PPM for natural gas and 25 PPM for propane, while CO emissions remain at 100 PPM.
    8. The boiler has a shipping weight of 11,800 lbs and an operational weight of 13,000 lbs, with an operational water content of 140 gallons and a fully flooded capacity of 300 gallons.
    9. Its dimensions measure 63 in width, 153 in length, and 127 in height.
  2. Specifications
    1. Brand: Miura
    2. Model: LXH-300
    3. Type: High-pressure, gas-fired steam boiler
    4. Boiler type: Water tube
    5. Horsepower: 300 BHP
    6. Pressure rating: 30 PSI
    7. Steam output: 6900 - 10,350 lb/hr
    8. Heat output: 10.043 MMBTU/hr
    9. Heating surface area: 613 ft²
    10. Turn-down ratio: 4:1 (25%)
    11. Fuel type: Natural gas or propane
    12. Fuel supply pressure: 3-5 PSIG
    13. Heat input: 11.678 MMBTU/hr
    14. Efficiency: 86%
    15. Flue gas excess oxygen: 5.0%
    16. Flue gas temperature: 230°F
    17. NOx emissions: 20 PPM (natural gas), 25 PPM (propane)
    18. CO emissions: 100 PPM
    19. Shipping weight: 11,800 lbs
    20. Operational weight: 13,000 lbs
    21. Operational water content: 140 gallons
    22. Fully flooded capacity: 300 gallons
    23. Dimensions: 63 in W × 153 in L × 127 in H
    24. Weight: 5352
  3. Condition
    1. Used Miura LXH-300 high-pressure steam boiler.
    2. High-efficiency, water-tube boiler designed for industrial and commercial steam applications.
    3. Engineered for superior performance with a 4:1 turn-down ratio for flexible operation.
    4. Low NOx emissions ensure environmentally friendly operation.
    5. Compact footprint with low water content for fast start-up and load response capabilities.
  4. Included
    1. Miura LXH-300 high-pressure gas-fired steam boiler.
    2. 300 BHP high-pressure gas-fired boiler.
    3. Industrial steam boiler.
    4. Water tube steam boiler 30 PSI.
    5. High-efficiency natural gas boiler.
    6. Propane steam boiler with 4:1 turn-down ratio.
    7. Low NOx emissions boiler for industrial use.
    8. Compact high-performance steam generator.
  5. Applications
    1. Industrial manufacturing - process steam for production lines.
    2. Food and beverage processing - breweries, distilleries, dairy, packaged foods.
    3. Pharmaceutical and biotech - clean steam for sterilization and production.
    4. Commercial laundry and textile - high-efficiency steam for large-scale operations.
    5. Healthcare and hospitals - steam for sterilization and HVAC systems.
    6. Chemical and petrochemical processing - high-pressure steam applications.
