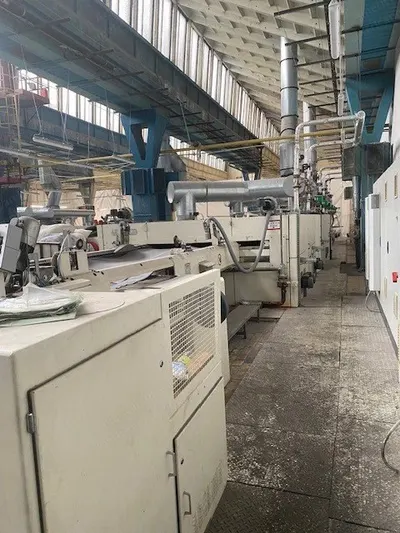

Bruckner, Power Frame-Split Flow VN 26/6, 2008, 2600mm Working Width, 6 Chambers, Pin/Clip Chain

Description

Overview
1. Stabilizer frame
2. Brand: Bruckner, type: Power Frame-Split Flow, VN 26/6
3. Year 2008
4. Working width: 600 to 2600 mm
5. Vertical chain type: SK 999
6. Drive side: right, operating side: left
7. Entry field: 6000 mm, exit field: 4500 mm
Drying System

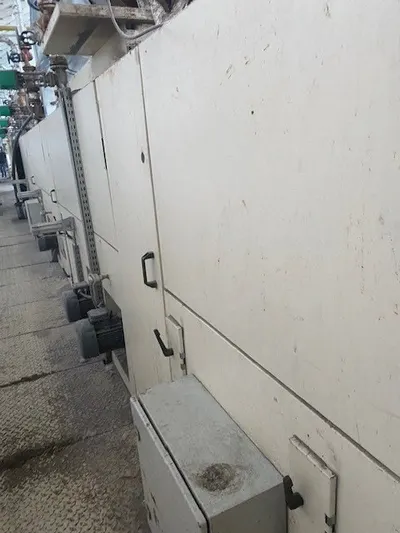

1. 6 chambers, each 3000 mm length
2. Two heating and ventilation sections with separate air circulation for upper and lower parts by a hot air fan
3. Steam and electric heating
4. Temperature: 90–180 °C
5. Volume of exhaust air: 2 x 10,800 m³/h
6. Machine speed: 4 to max 80 m/min
Media and Power
1. Media: 3 x 400 V AC, 50 Hz
Composition

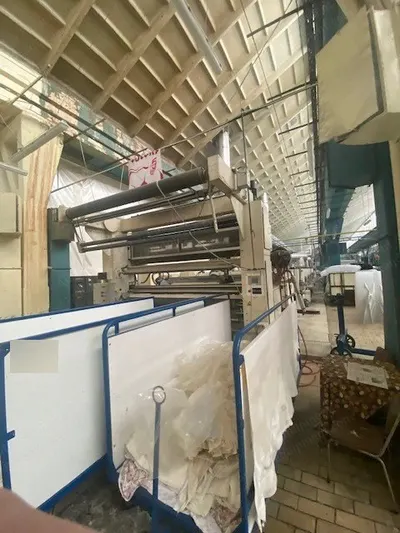

1. Infeed rollers
2. Foulard 2 beams

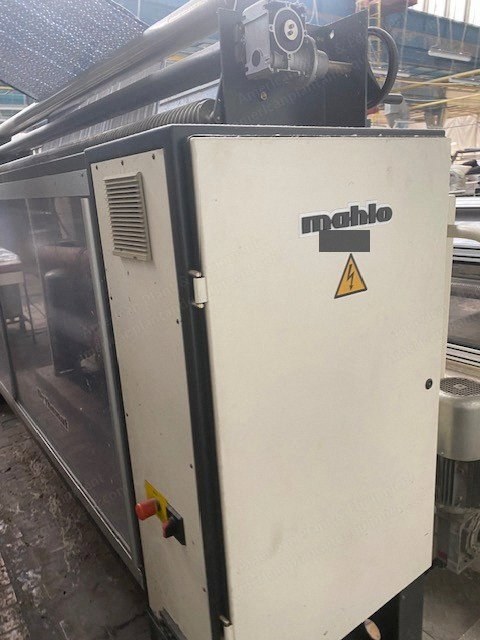

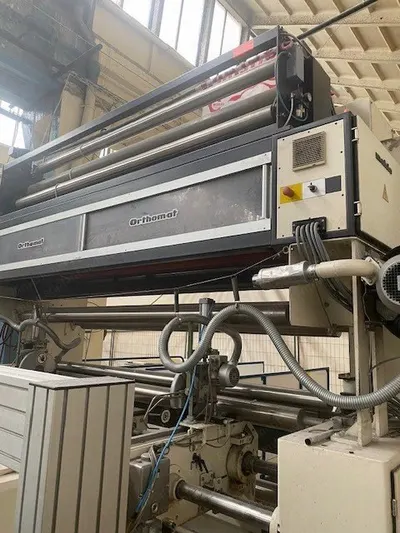

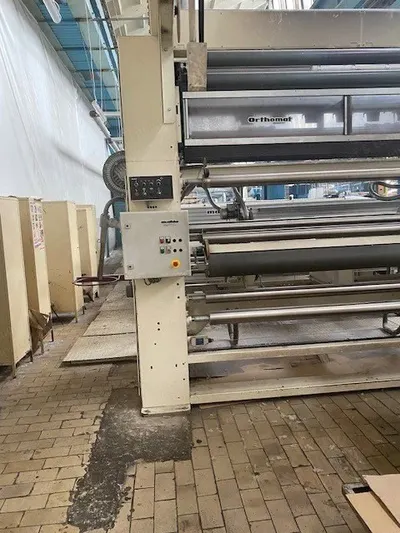

3. Mahlo Orthomat weft straightener
4. Working width 2600 mm (rollers 3000 mm long on stenter; foulard and Bianco - 2800 mm)
5. Vertical pin/clip chain
6. 6 x 3 m chambers
7. Cooling zone
Specifications
1. Exhaust air volume: 2 x 10.800 m3/h

Capacity	Machine speed: 4 - max 80 m/min
Drying Chambers Count and Length	6 chambers, length 3000mm each
Features	Vertical chain type: SK 999 (Pin/Clip)
Included	['Infeed rollers', 'Foulard 2 beams', 'Mahlo Orthomat weft straightener', 'Cooling zone', 'Delivery Orthomat', 'Plaiter on delivery']

Voltage	3 V
