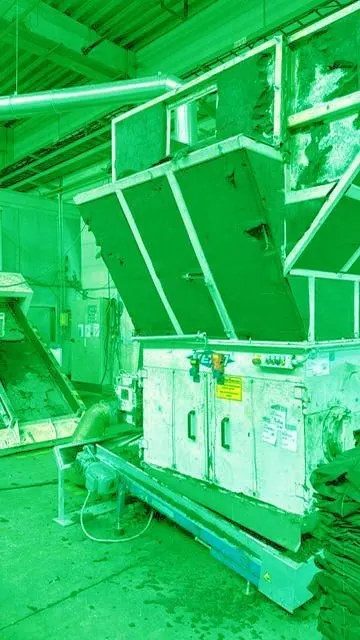

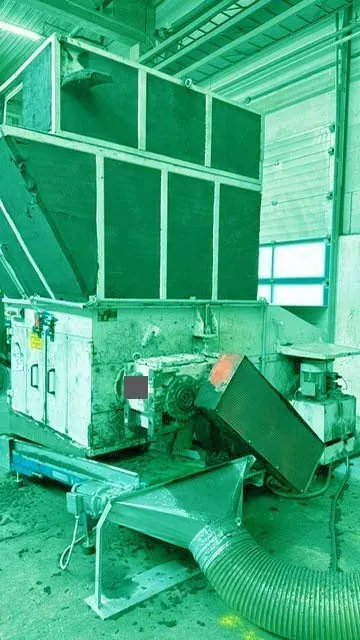

Zeno, ZTLL 1400 x 1600, 2010, Waste Crusher, 1400mm Working Width, 45 kW

Zeno, ZTLL 1400 x 1600, 2010, Waste Crusher, 1400mm Working Width, 45 kW

Description

  1. Overview
    1. Working width: 1400 mm
    2. Inlet cross-section: 1400 x 1600 mm
    3. Year of construction: 2010
  2. Drive and Rotor
    1. Drive: 45 kW, 1500 rpm, 400/690 V, 50 Hz
    2. Rotor flight circle: 380 mm
    3. Rotor speed: approx. 105 rpm
  3. Cutting Tools and Sieve
    1. Cutting tools: 52 positive cutting inserts on tool holders with mechanical cutting gap adjustment
    2. Sieve design: 12 mm standard perforation
    3. Currently installed sieve: 30 mm round
  4. Hydraulic Unit
    1. Hydraulic unit: 2.2 kW, 1420 rpm, 230/400 V, 50 Hz
  5. Dimensions and Weight
    1. Dimension: 2740 x 2270 x 2390 mm (L x W x H)
    2. Weight: approx. 5400 kg
