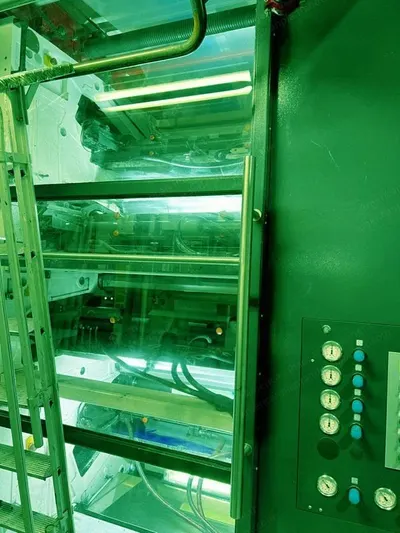

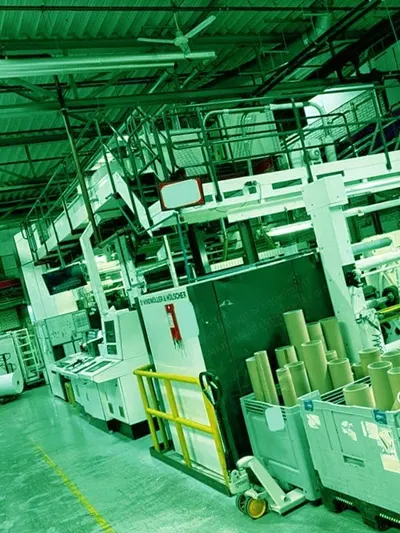

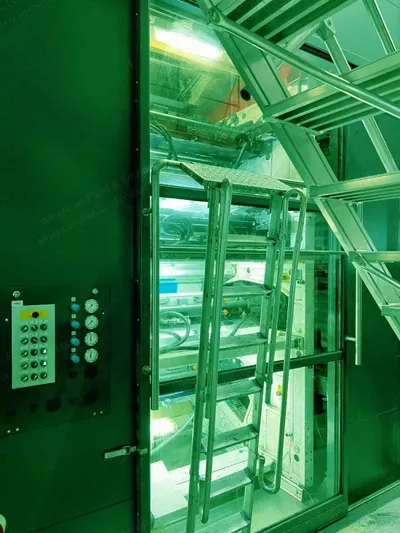

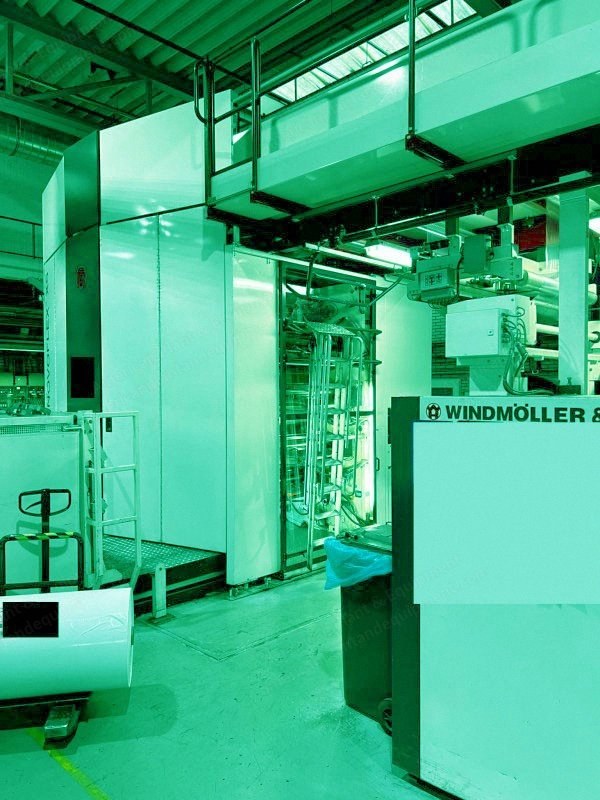

Windmoller & Holscher, Novoflex, 2005, 10 Colors, 1270mm Print Width, Gearless

Windmoller & Holscher, Novoflex, 2005, 10 Colors, 1270mm Print Width, Gearless

Description

  1. Overview
    1. Windmöller & Hölscher Novoflex
    2. Year 2005
    3. Gearless
    4. 10 colors CI
    5. Printing width 1270 mm
    6. Number of colors: 10
    7. Gearless: yes
    8. Fast sleeve change: yes
    9. 4 motor per deck CNC position system: yes

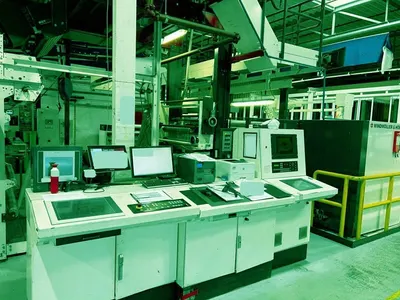

    10. Computer supervision: yes
  2. Specifications
    1. Print width: 1270 mm
    2. Min print repeat: 370 mm
    3. Max print repeat: 800 mm

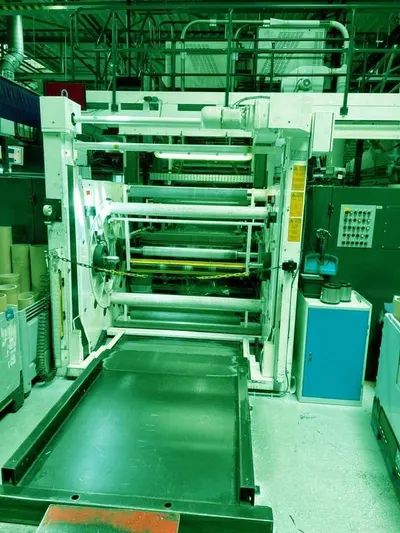

    4. Unwinder type: turret with and without shafts, with reel lifting
    5. Max reel diameter unwinder: 1000 mm
    6. Rewinder type: turret with and without shafts, with reel lifting
    7. Max reel diameter rewinder: 1000 mm
    8. Drying: 2 zones, 4 fans, 4.7 m tunnel, 2 thermo oil heaters, automatic air recirculation with LEL control
    9. Videocamera: BST Premius digital
    10. Corona treatment: yes, driven
    11. Viscosity control: yes
    12. Washing system: automatic washing system with double pump system each colour station
    13. Inking system: closed chambers doctor blades
    14. Web width mm: 1320

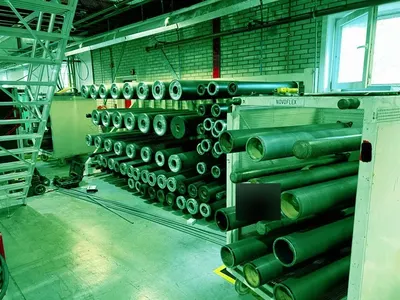

  3. Anilox And Sleeves
    1. Anilox: totally 18, among which 4x 400 l/cm - vol 6; 2x 500 l/cm - vol 4; 5x 200 l/cm - vol 19; 3x 180 l/cm - vol 12.5
    2. Print sleeves: 2 sets of sleeves plus
    3. Easy set and easy reg system by W&H
