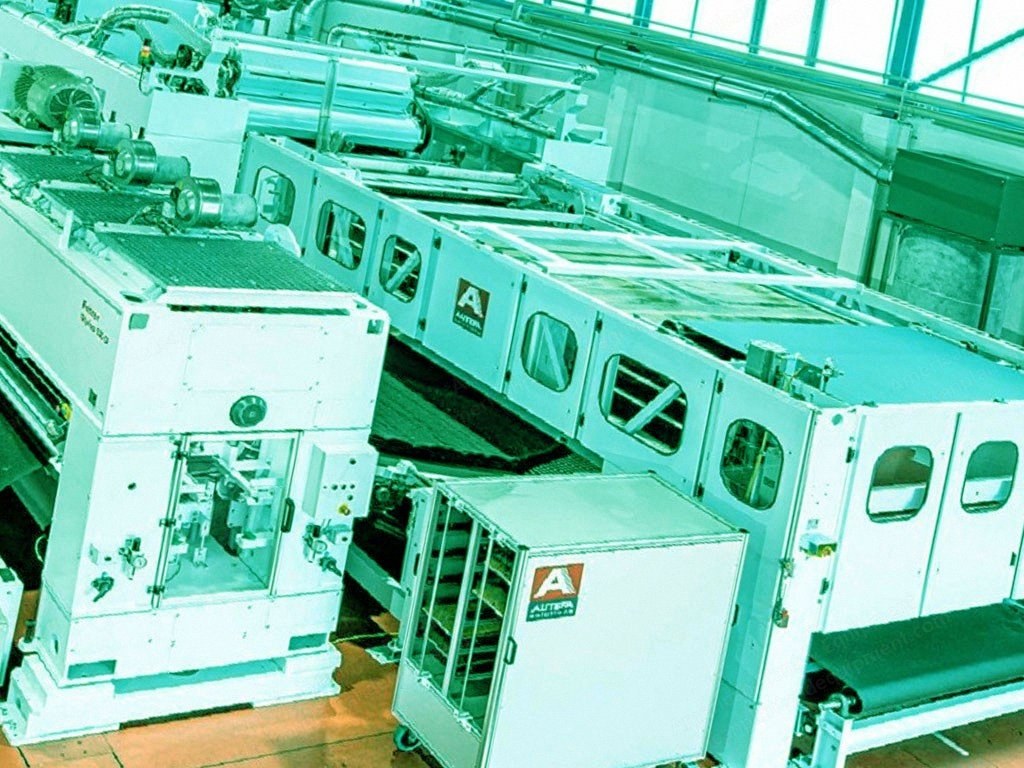

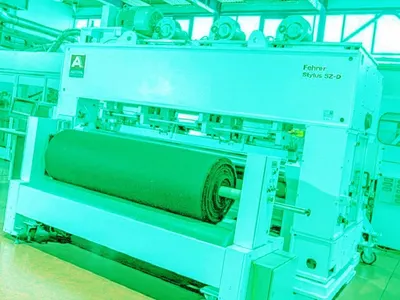

Description Overview Complete Autefa nonwoven carbon fibre recycling line Year 2023 Working width 2500 mm Range: wide variety of organic and inorganic fibers (such as polypropylene, polyamide, jute, hemp and flax) Item 001 - Double Bale Opener Type CED/1650 Suitable for 1 line of bales Working width: 1650 mm Item 002 - Fine Opener Type FTO Working width: 1600 mm Item 003 - Automatic Hopper Feeder Working width: 2000 mm Including static condenser on top of the feed tower Item 004 - Weighing Bridge Working width: 2000 mm Item 005 - F.O.R. Minicard Working width: 2000 mm Including 3 workers and 3 strippers Apron to by-pass the card 4 bag filter units Capacity: 14,000 m³/h per unit Item 006 - Eco Liner Type CL 3000SF Working width of the card: 2000 mm Layering width: 2500 mm Max. possible web lay-down speed: 80 m/min Including set of supporting rollers Lapper height: 500 mm (total height) Carriage to turn the delivery belt Intermediate apron between delivery belt resp. first intermediate apron and following machine Item 007 Max. width up to 2500 mm Item 008 - Feeding System Type RDF mounted on the needleloom Working width: 2600 mm Item 009 - Single Board Needle Loom Type Stylus SZ-D (Variliptic) Needling: from top to bottom Needle pattern: 2143 needles/lin. m. Working width: 2600 mm Vertical stroke: 60 mm Stroke frequency: 1300 rpm Horizontal stroke: 0 to 6 mm The line can be sold with/without this needle loom Item 010 - Process Control System and Visualization Main operator's console Industrial PC (Microsoft Windows® operating system) Redundant hard disk system 3 pcs. 19-inch monitors Including special sealed control cabinets Including electric wires Available: immediately
