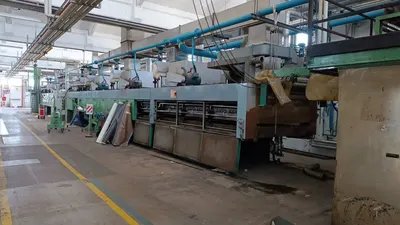

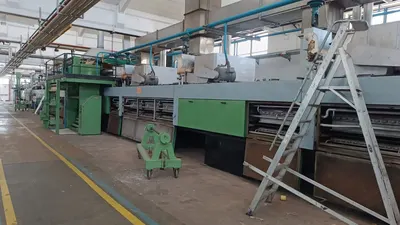

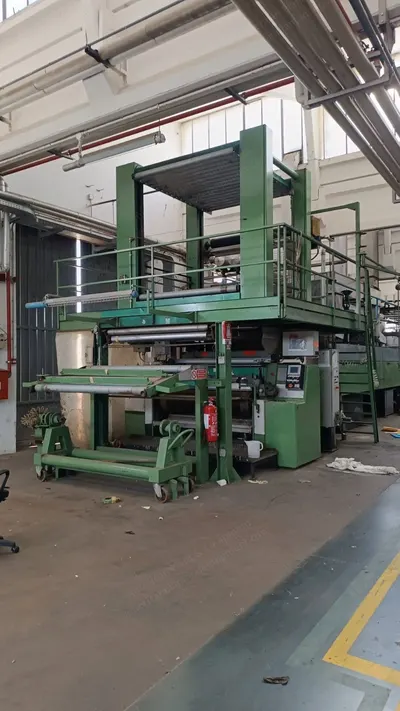

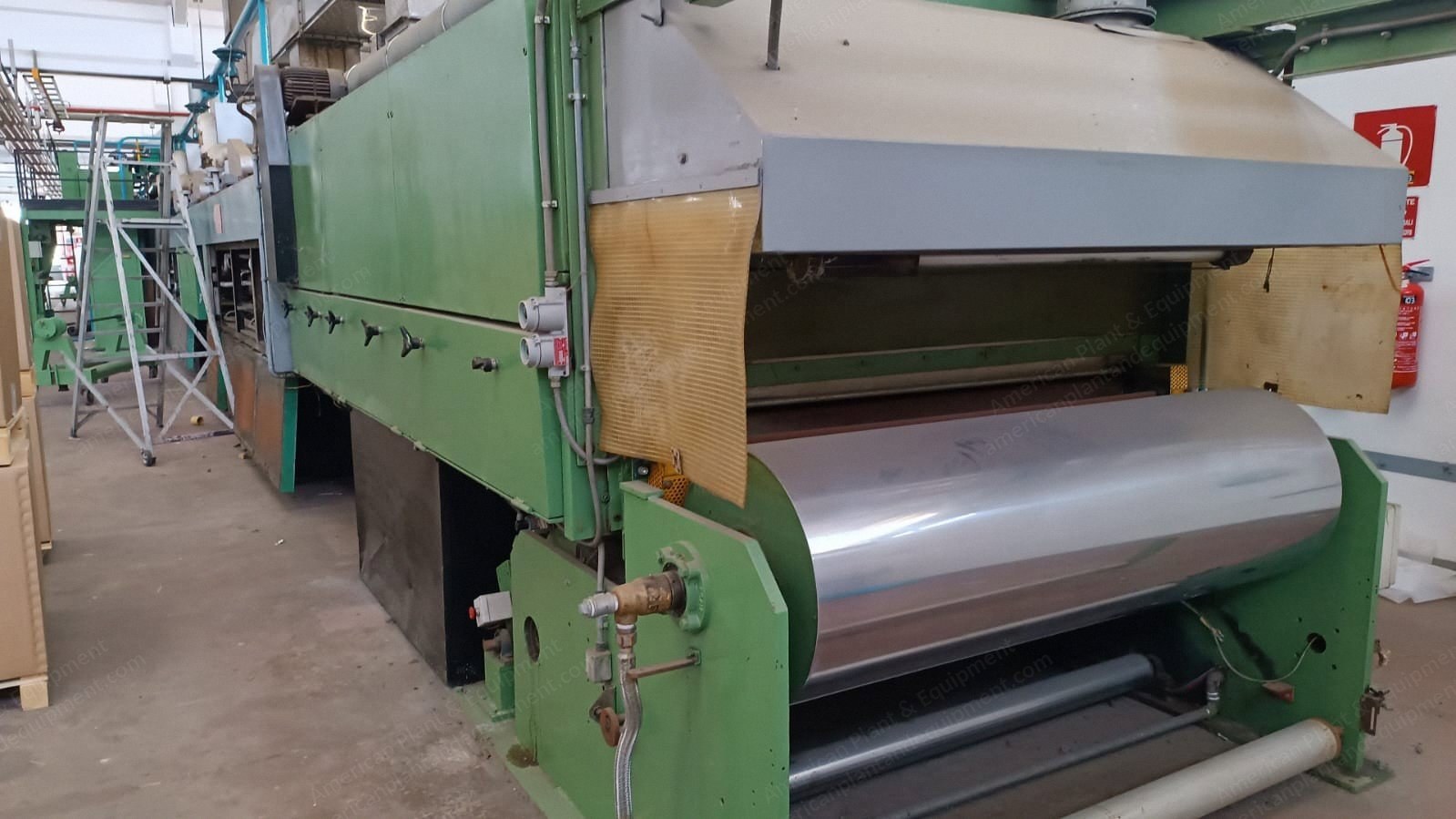

Comapa Coating Line, 1985, 1800mm Working Width, 3-Head, Wet Lamination

Comapa Coating Line, 1985, 1800mm Working Width, 3-Head, Wet Lamination

Description

  1. Overview
    1. Comapa coating line
    2. Year 1985
    3. With 3-head polishing machine
    4. 3-head paper transfer coating line
  2. Specifications
    1. Paper compensator 80 mtl in accumulation
    2. Trolley paper unwinder
    3. Maximum table 1800 mm
    4. 3 Comapa coating heads
    5. 3 thermoventilated diathermic oil ovens, supplied by ct
    6. Maximum speed 30 mt/min
    7. Steam-powered hot-lamination unit (ocs)
    8. Wet lamination unit
    9. Fabric compensator to be coupled 30 m in accumulation
    10. Self-centering axial paper winder with two groups
    11. Axial material rewinder with revolver
    12. Cooling cylinders
