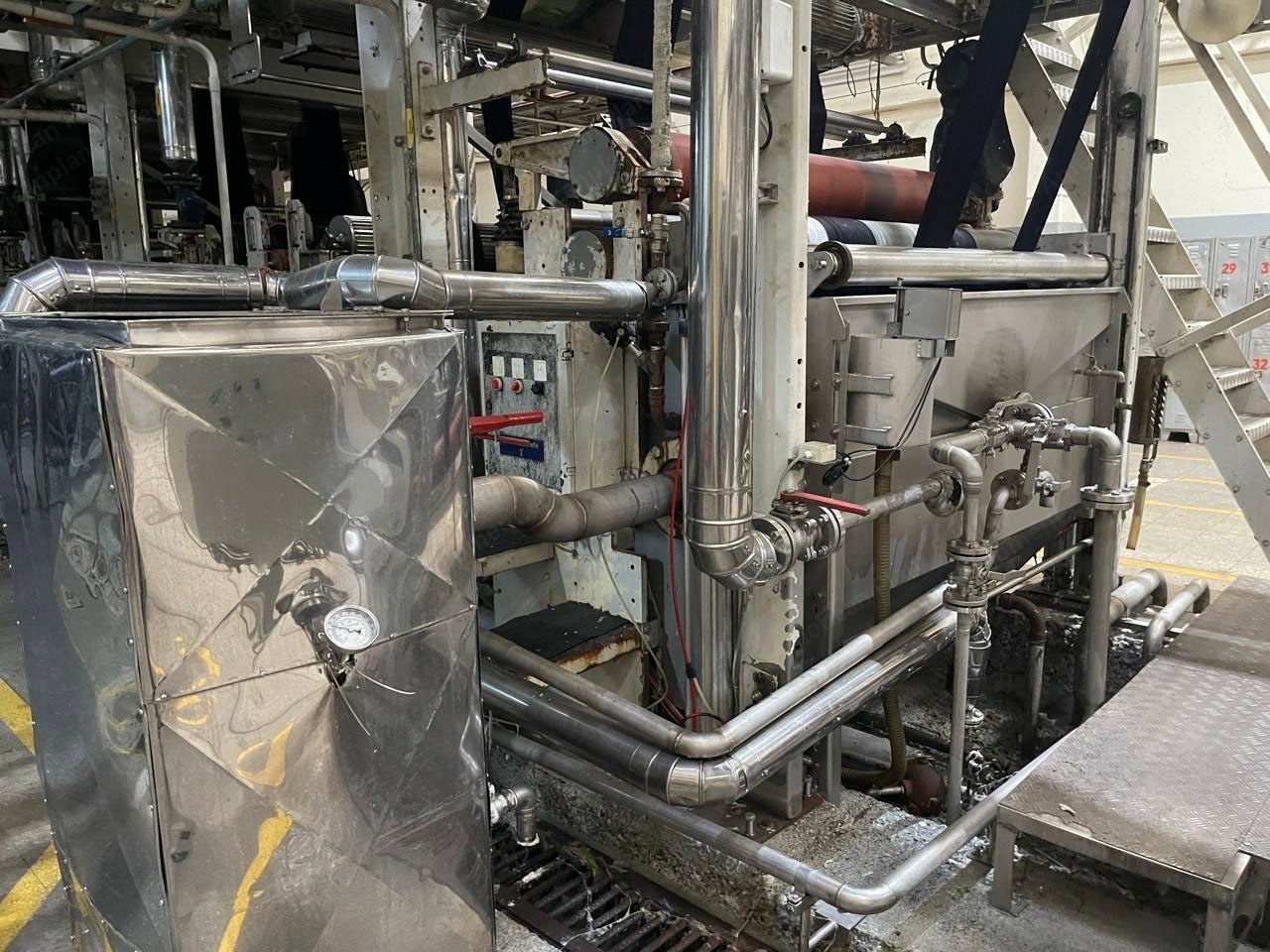

Sucker Muller Hacoba, Denim Dyeing, Sizing and Warping Line, 2003, 1600-1800mm Width, 8 Dyeing Boxes, 2 Sizing Boxes

Sucker Muller Hacoba, Denim Dyeing, Sizing and Warping Line, 2003, 1600-1800mm Width, 8 Dyeing Boxes, 2 Sizing Boxes

Description

  1. Overview

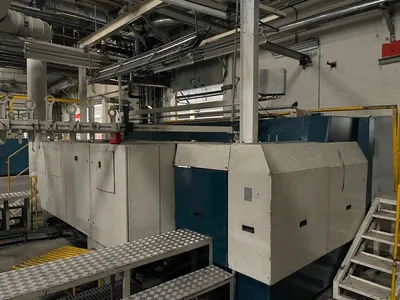

    1. Sucker Muller Hacoba dyeing, sizing and warping denim line
    2. Year: 2003
    3. Brand: Sucker Muller Hacoba
    4. General description: The process consists of indigo dyeing and sizing as preparation for the weaving process
    5. Frequency: 60 Hz
    6. Voltage: 440 VAC
    7. Control voltage: 24 V DC
    8. Operating capacity: 1,900,000
    9. Energy consumption: 48 kWh
    10. Steam consumption: 4800 lb/h
    11. Water consumption: 18 m³/h
    12. Machine speed: 25 to 35 m/min

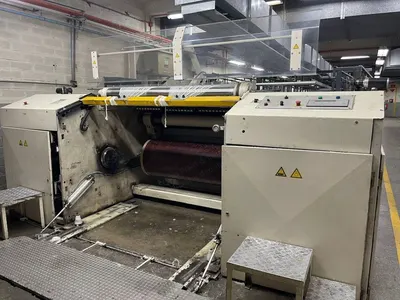

  2. Item 002: Sucker Warping Machine
    1. 460 positions, 1600 to 1700 mm width
    2. Year: 2003
    3. Control system: Siemens S7300/S7200

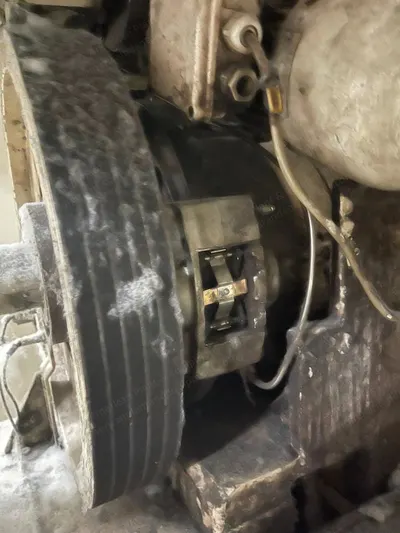

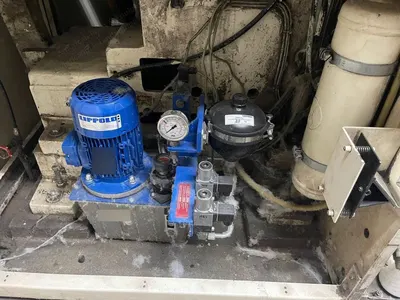

    4. Braking system: Hydraulic, drum Ø 575 mm

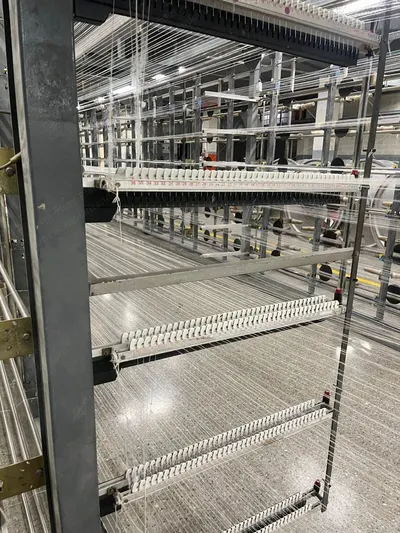

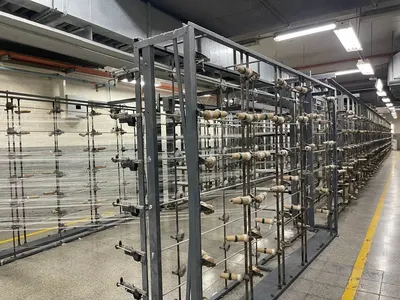

    5. Creels: Electric hook stop sensor, manual warp cutting
    6. Machine speed: 800 RPM
    7. Energy consumption: 55 kWh
  3. Direct Warper Specifications
    1. 442 positions
    2. 800 RPM
    3. Width: 1600 mm to 1800 mm
    4. Plate diameter: 1400 mm (55.1)
    5. Cylinder diameter: 456 mm (17.95)
    6. Mechanisms: Entry, exit
  4. Specifications
    1. Capacity: 442 positions, 800 RPM, 50,000L indigo storage tank
    2. Control system: Siemens S7400
