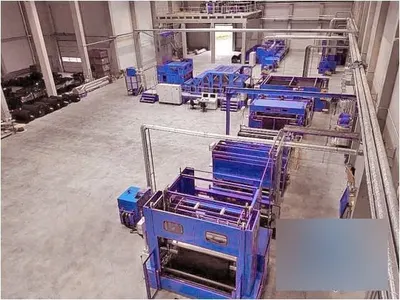

Complete Nonwoven Needlepunch Line, 2400mm, 2017, 2000 Tons/Year

Complete Nonwoven Needlepunch Line, 2400mm, 2017, 2000 Tons/Year

Description

  1. Overview
    1. Complete nonwoven needlepunch line
    2. Year 2017
    3. Working width 2400 mm
    4. Fiber type: PP, PET staple fiber (virgin, recycled)
    5. Fiber length: 60 mm to 80 mm
    6. Basic product specification: 2 layer, 50% PP + 50% PET, 1300 gsm
    7. Final product weight in g/m²: 250 to 1500 gsm (car side 1050 gsm + street side 250 gsm)
    8. Final product dimension: winding roll type (dia. max. 1500 mm)
    9. Inner paper tube diameter: 100 mm
    10. Speed: surface fabric 12 m/min, inner fabric 4 m/min
    11. Weight tolerance of final product: +/- 5%
    12. Ratio of mechanical property over MD: 1500 N, CD: 2700 N
    13. Capacity: 2000 tons/year (240 days x 24 h x 85%)
    14. Total power consumption: 266.09 kW
  2. Opening And Blending Section

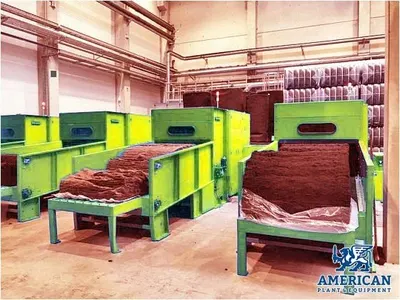

    1. 4 blending feeders, type SH-BF60, width 1500 mm, 450 kg/h
    2. 1 cylinder opener, type SH-CO60, width 1500 mm, 750 kg/h
    3. 3 magnetic traps, type SH-MGT 300, diameter 300 mm
    4. 1 mixing tank, type SH-MT 250, content 60 m³, 750 kg/h
    5. 1 fine opener, type SH-FO 60, width 1500 mm, 750 kg/h
  3. Carding And Crosslapping
    1. 1 hopper feeder, type SH-HF100, width 2310 mm

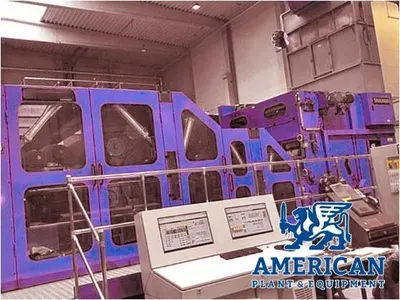

    2. 1 double doffer card, type SH-C100DD, width 2500 mm, 500 kg/h
    3. 1 crosslapper, SHCH4-3200, input 2.5 m - output 3200 mm, 80 m/min

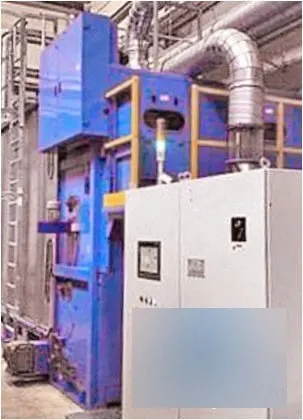

  4. Needlepunch And Finishing
    1. 1 web conveyor + feeding system, type SH-WC3000 + SHWFS-3000
    2. 1 needlepunch machine, SHS-DR3000, width 3000 mm, 1200 stks/min, single board downstroke, 4850 needles, 55 mm needle beam strokes
    3. 1 needlepunch machine, SHD-UR2800, width 2800 mm, 1400 stks/min, double board upstroke, 10,000 needles, 40 mm needle beam strokes
    4. 1 needlepunch machine, SHD-DR2600, width 2600 mm, 1400 stks/min, double board downstroke, 12,000 needles, 35 mm needle beam strokes
    5. 1 Mahlo measuring device, type QMS, year 2017
    6. 1 unwinder, type SH-UW 2600, width 2600 mm, speed 13 m/min
    7. 1 accumulator, type SHDA-2600, width 2600 mm
    8. 1 edge & cross cutter, type SHCC, MC-2600, width 2600 mm
    9. 1 auto winder, type SHAW-2600 with metal detector, width 2600 mm
    10. 1 edge picking machine, type SHEP3-500, width 500 mm
  5. Condition And Availability
    1. Condition: used
    2. The line is CE-certified
    3. Available: immediately
