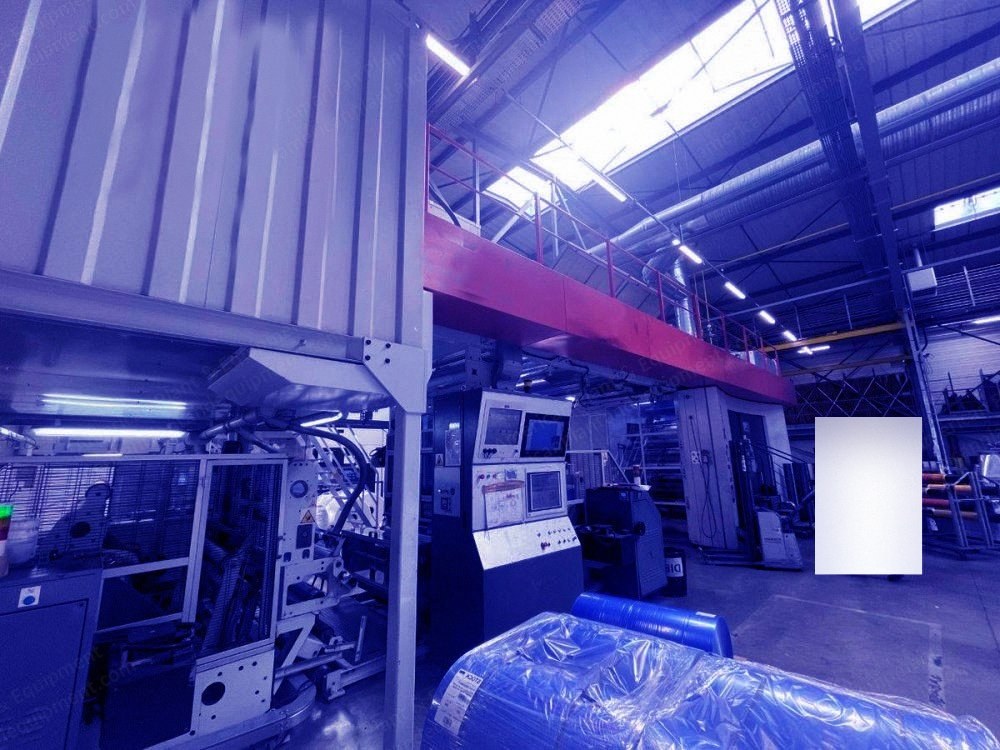

Uteco, Onyx 808, 2010, 8 Colors, 1300mm Print Width, Gearless

Uteco, Onyx 808, 2010, 8 Colors, 1300mm Print Width, Gearless

Description

  1. Overview
    1. Uteco Onyx 808 flexographic printing machine
    2. Brand: Uteco
    3. Model: Onyx 808
    4. Year: 2010
    5. Number of colors: 8
    6. Print possibilities: 8+0
    7. Gearless: yes
    8. Fast sleeve change: yes
    9. 4 motor per deck CNC position system: yes
    10. Computer supervision: yes
  2. Specifications
    1. Print width: 1300 mm
    2. Min print repeat: 360 mm
    3. Max print repeat: 800 mm
    4. Unwinder type: turret automatic
    5. Max reel diameter unwinder: 800 mm
    6. Rewinder type: turret automatic
    7. Max reel diameter rewinder: 800 mm
    8. Drying: 2 zones, 4 fans, final tunnel 4 m long, 2 gas burners, automatic air recirculation system with LEL control
    9. Videocamera: yes, BST
    10. Viscosity control: yes, automatic
    11. Washing system: yes, auto wash up system
    12. Inking system: closed chamber doctor blades and ceramic anilox rollers, 8 ink pumps
    13. Web width mm: 1350
  3. Included Components
    1. 8 ceramic anilox sleeves: 1 x 90 l/cm, 1 x 100 l/cm, 1 x 140 l/cm, 1 x 180 l/cm, 2 x 200 l/cm, 1 x 340 l/cm, 1 x 420 l/cm
    2. Print sleeves: 8 x 540 mm, 8 x 600 mm, 8 x 640 mm
