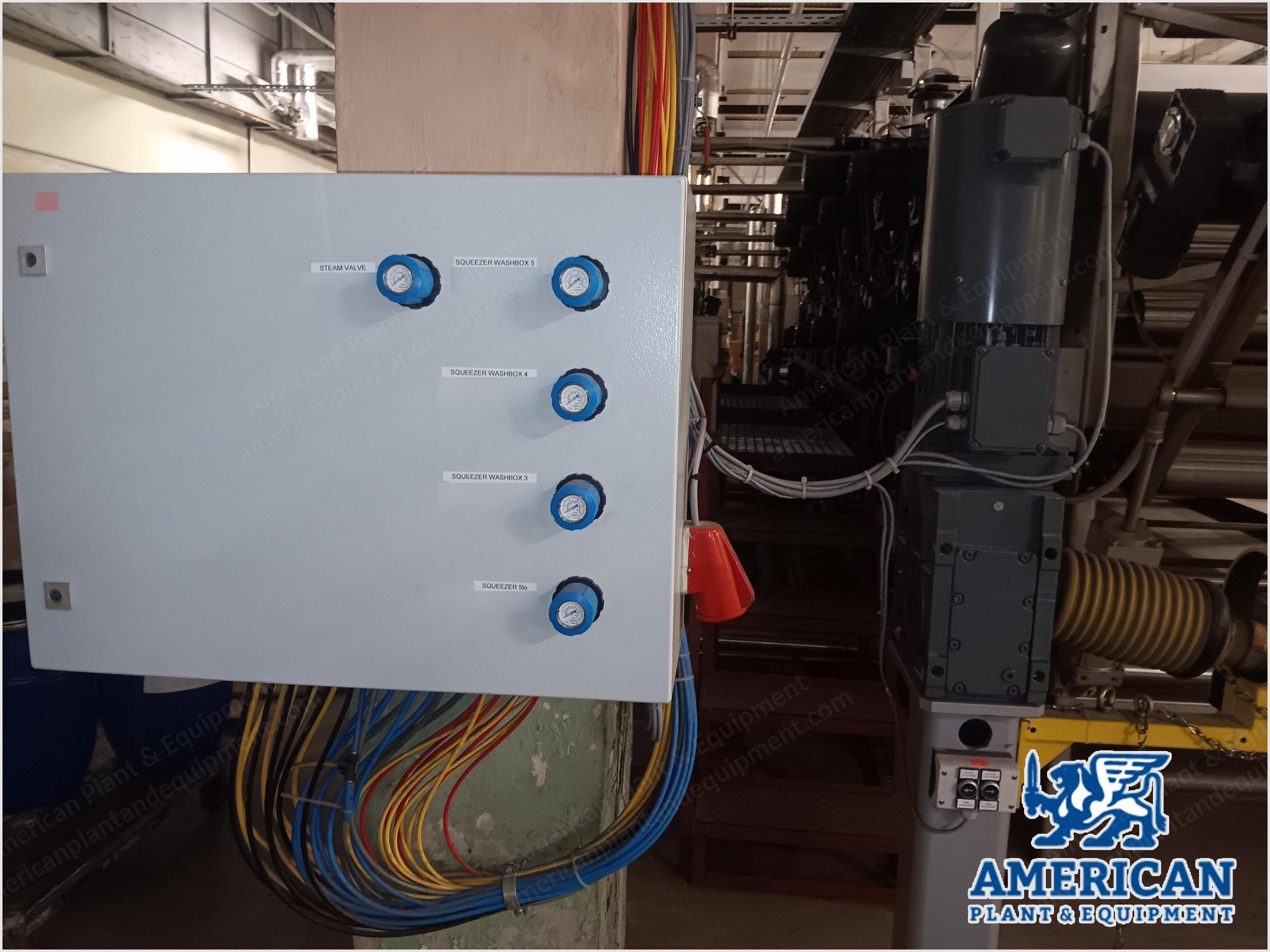

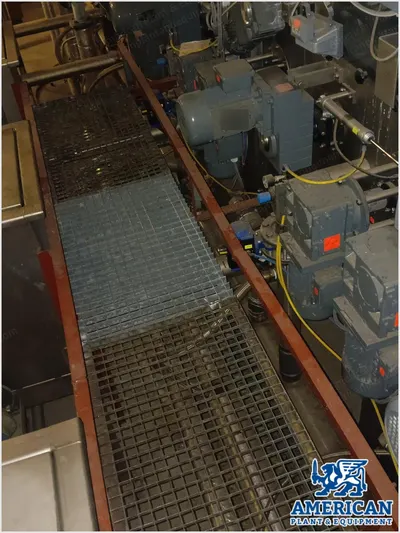

Menzel, Washing Line, 2013, 3400mm Roller Width, 40 m/min

Menzel, Washing Line, 2013, 3400mm Roller Width, 40 m/min

Description

  1. Overview
    1. Menzel washing line
    2. Type Menzel
    3. Year 2013
    4. Process: spun oil removing water-based washing
    5. Operation side: left
    6. Drive side: right
    7. Color of range: grey / steel
  2. Fabric Specifications
    1. Type of fabric: warp knit, lace, raschel goods, tricot
    2. Material composition: 100% polyamide, 100% polyester, polyamide / spandex (elastane up to 30%)
    3. Material width: 2200 to 3200 mm
    4. Roller width: 3400 mm
    5. Fabric weight: 50 to 265 g/m2
    6. Production speed: up to 40 m/min
  3. Chemicals
    1. Oil-emulsifier, washing/wetting agent, alkali, acetic acid for pH-neutralisation
  4. Construction Materials
    1. Steel grade
    2. Lateral frames: AISI 304 (V2A)
    3. Parts in contact with media: AISI 316 (V4A)
  5. Batch Diameters
    1. Unwinder: 1400 mm
    2. Winder: 1800 mm
  6. Utility Requirements
    1. Voltage: 230/400 V 50 Hz 3 ph
    2. Steam pressure: 4 to 6 bar
    3. Compressed air, dry-oilfree: 6 to 7 bar
    4. Water pressure: 2 to 3 bar
    5. Water consumption: approx. 5 to 81/kg, related to procedure
  7. Specifications
    1. Machine number: 1105188
