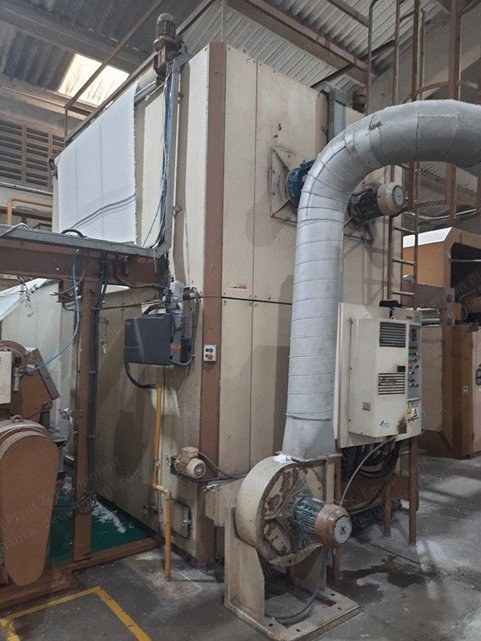

Jaume Anglada Viñas, TSR - 2.6 QG, 2006, 2.50m Max Towel Width, 5 Drying Modules, 0.75 Ton/Hr Capacity

Name: Jaume Anglada Viñas, TSR - 2.6 QG, 2006, 2.50m Max Towel Width, 5 Drying Modules, 0.75 Ton/Hr Capacity
Brand: Jaume Anglada Viñas
SKU: TT-7847

‹ Go Back Next Product ›

Description

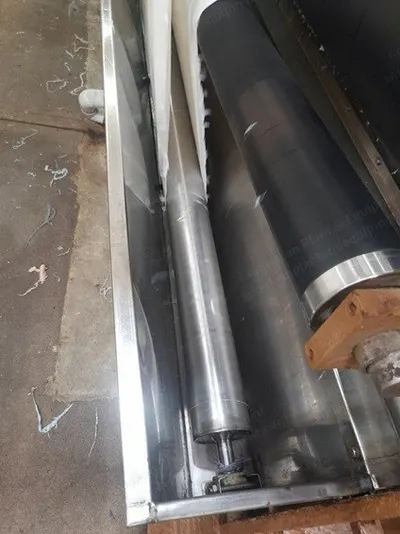

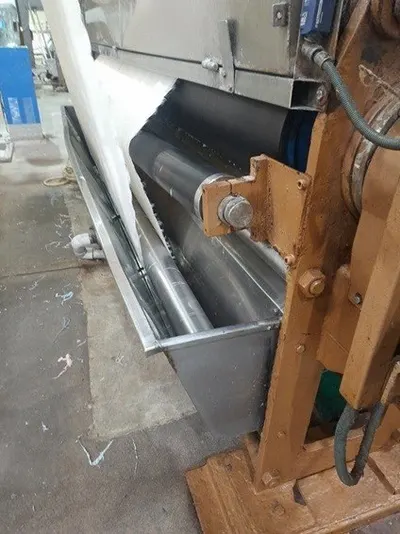

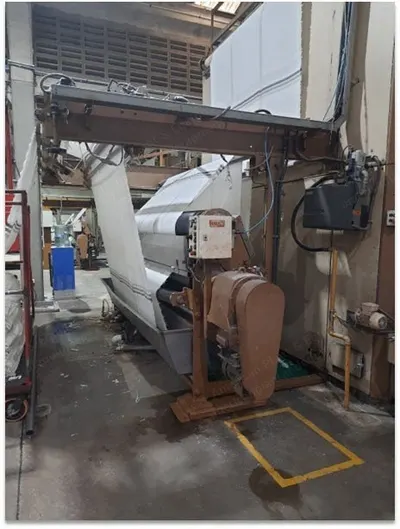

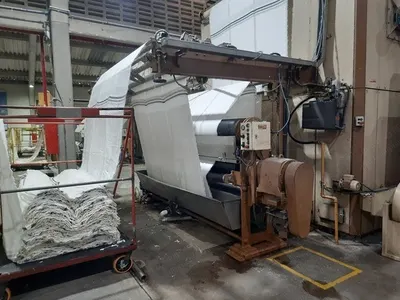

Foulard
1. Roller diameter: 320 mm
2. Number of rollers: 2
3. Squeezing pressure: 1 – 4 bar
4. Installed power: 15 kW
5. Width: 2800 mm
6. Year: 2006

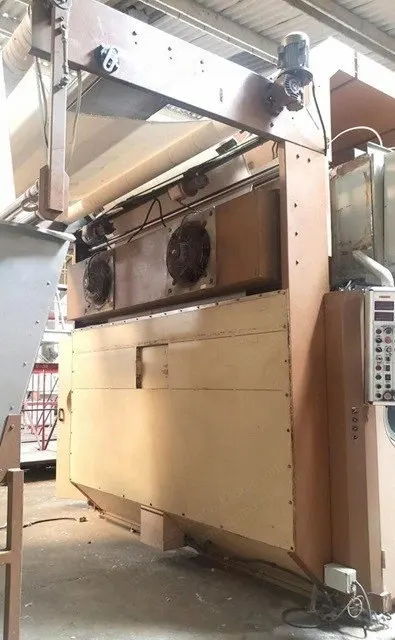

Pre-drying
1. Burners: 1
2. Installed electrical power: 24 kW
3. Installed thermal power: 200 kW
4. Width: 3000 mm
5. Minimum speed: 10 m/min
6. Top speed: 35 m/min
7. Year: 2006

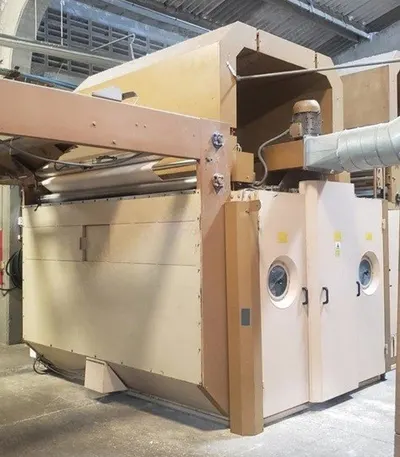

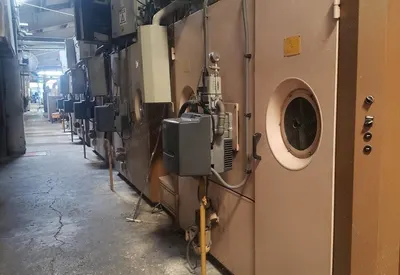

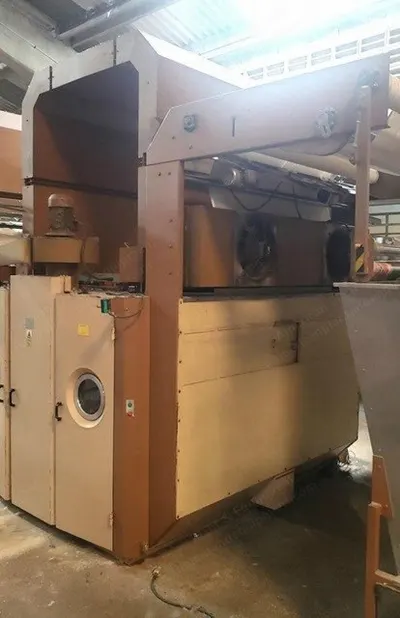

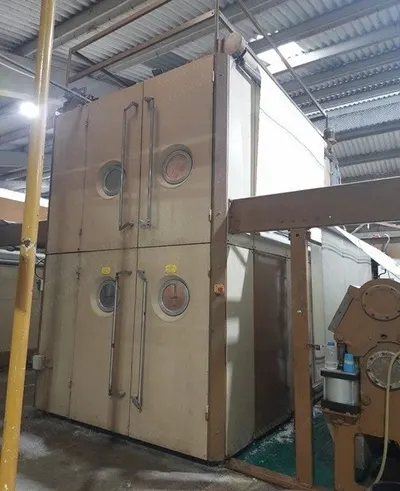

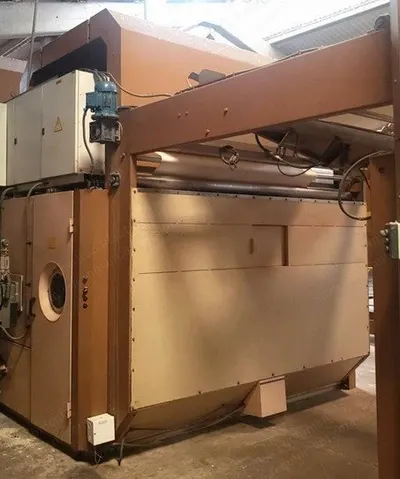

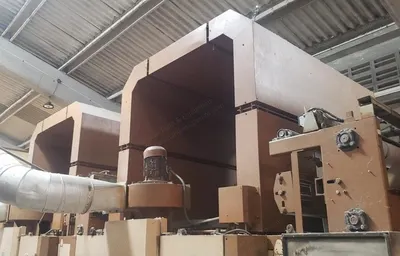

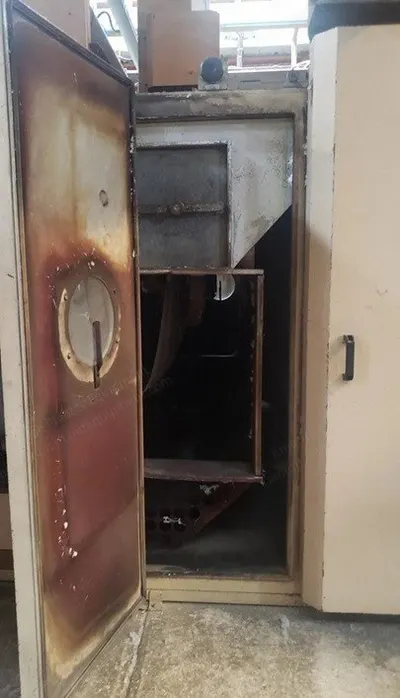

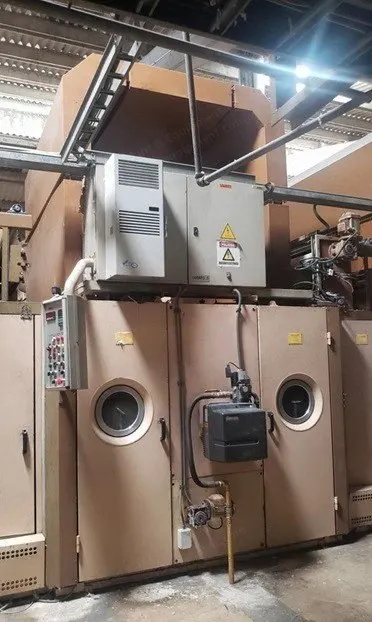

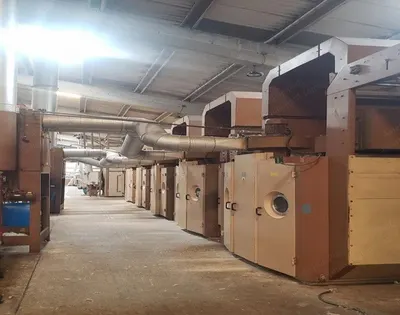

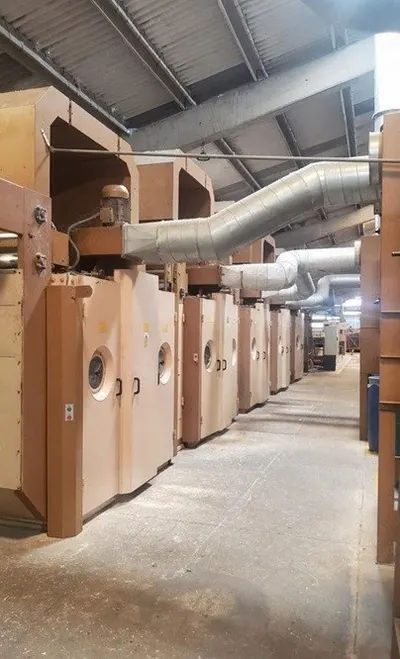

Drying modules
1. Quantity: 5 modules
2. Brand: Jaume Anglada Viñas
3. Model: TSR - 2.6 QG
4. Manufacture number: TSR060301
5. Year: 2006
6. Capacity: 0.75 ton/hr
7. Temperature: 130 °C

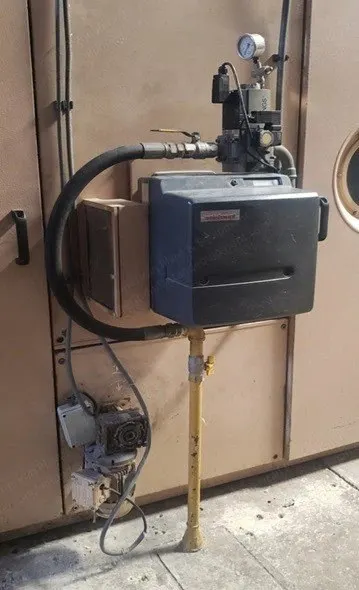

8. Burners: 5
9. Minimum speed: 10 m/min
10. Top speed: 35 m/min
11. Minimum towel width: 1.80 m
12. Maximum towel width: 2.50 m
13. Voltage: 3AC 440 V 60 Hz
14. Power: 112 kW
Compactors
1. Quantity: 5 modules
2. Installed electrical power: 5.4 kW
General
1. 100% operative
2. Maintenance with original spare parts
Specifications
1. Drying modules burners: 5 units
2. Foulard number rollers: 2 units
