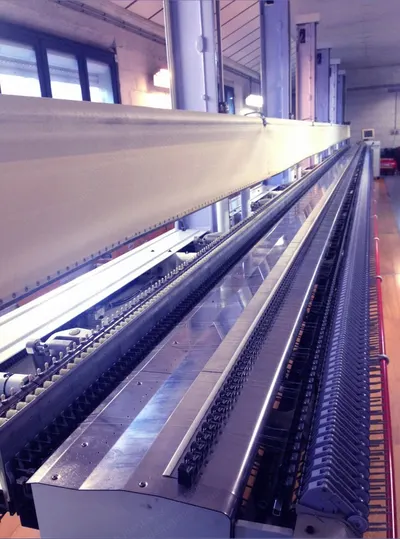

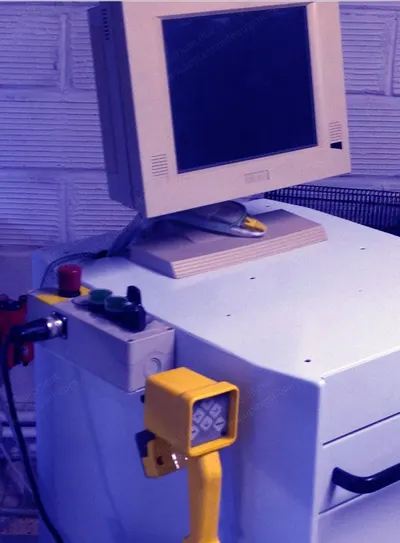

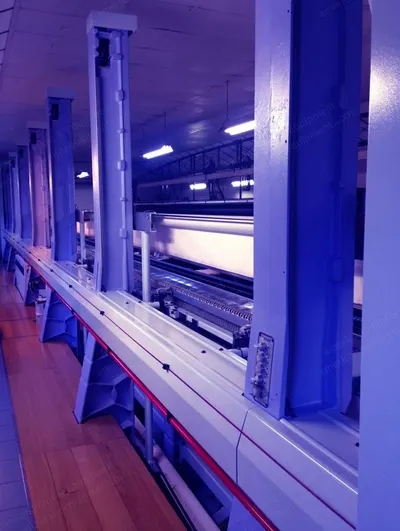

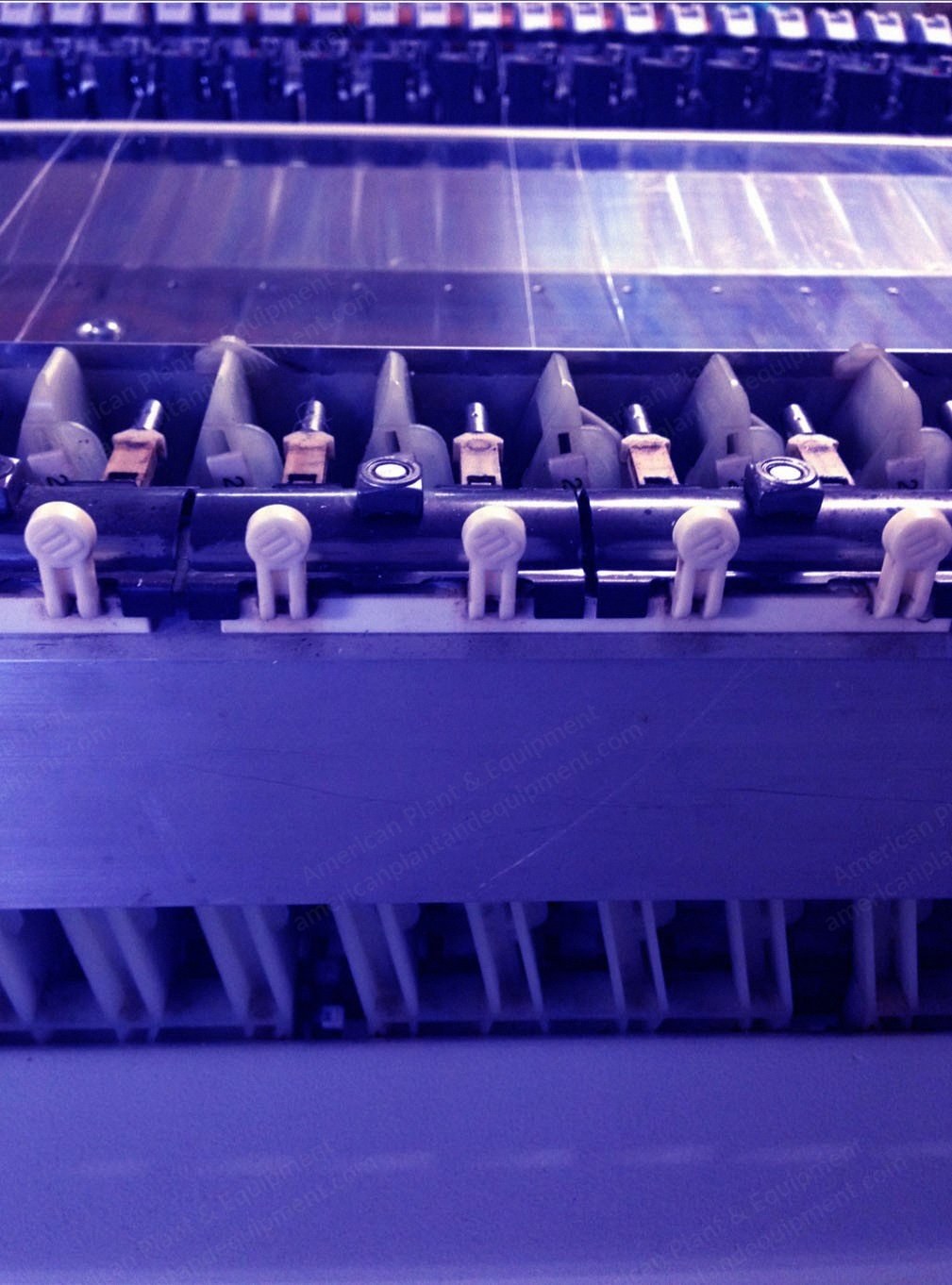

Description Overview Saurer Epoca 2 of 16.3 yards This machine can be used to embroider fabrics for lingerie, furnishing, ready-to-wear and guipure. It can be configured according to the needle ratio program for large or small patterns, and based on the color of the coils. Automatically cuts threads forward and backward when changing needle ratio and completing a pattern. Includes 552 English embroidery pins. It embroiders 14.50 metres in length and 1600 mm in width thanks to its 1650 mm frame. Total length of the machine: 18 meters It can work with up to 552 new needles and shuttles. The production speed is 360 stitches per minute. The machine runs on a floppy disk program. The computer system is SLM. White shuttle carriers. New monitoring screen. General Technical Data Minimum needle ratio: 4/4 inch French = 27.07 mm Lateral displacement: maximum ratio 120/4 = 810 mm Lateral movement with transport: maximum ratio 104/4 = 700 mm Minimum dot unit: 0.1 mm horizontally and vertically Drilling depth: 0 to 20 mm continuous (= max. ⌀4.2 mm for drilling at 12%) Standard coil dimensions (LxW): 85 x 50 mm Cones 230 x 125 mm (4/4), embroidery height 1250/1650 200 x 150 mm (8/4), embroidery height 1250/1650 230 x 125 mm (8/4), embroidery height 850 Shuttles: Saurer top in steel or carbon ("Silenzio") Dimensions of the Cocoons Steel 43 x 15.2 mm Carbon 43 (0/-0.2) x 14.7 (0/-0.2) mm Fabric roll ⌀: unwrapped ⌀80 mm; wrapped max. ⌀110 mm
