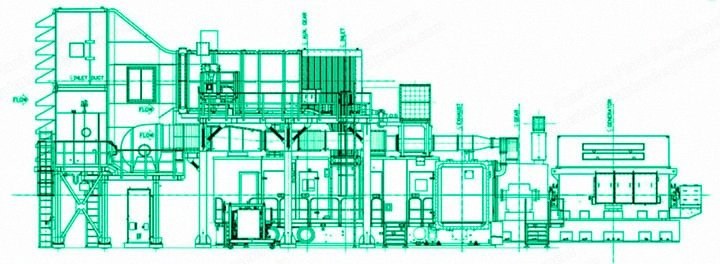

General Electric, Frame 5PA, 26 MW, 60 Hz, Natural Gas Turbine Generator (New)

General Electric, Frame 5PA, 26 MW, 60 Hz, Natural Gas Turbine Generator

Description

  1. Overview
    1. GE Frame 5PA gas turbine generator
    2. Brand: General Electric
    3. Cycle type: simple cycle
    4. Fuel type: natural gas
    5. Combustion system: dry low NOx (DLN)
    6. Design standards: API 616
  2. Turbine Specifications
    1. Power output: 26,060 kW (34,947.0 hp) (26 megawatt hour "MWh")
    2. Efficiency: 27.7% (heat rate @ site rating: 12,807 Btu/kWh)
    3. Exhaust temperature: 850°F (454°C)
    4. NOx emissions: 25 ppmvd at base load
    5. Rotational speed: 5100 rpm
    6. Starter type: electric motor starter
    7. Gear reducer: rated 5100/1800 rpm
    8. Exhaust system: side exhaust included
    9. Fuel system: natural gas fuel system with operating pressure of 363 psi
    10. Fuel specification: 1028 Btu (20,699 Btu/lb, LHV)
  3. Generator Specifications
    1. Generator type: GE TEWAC
    2. Generator rating: 40,000 kVA
    3. Generator output: 30,000 kW (40,230.7 hp)
    4. Voltage & frequency: 13,800V / 3-phase / 60 Hz
  4. Condition
    1. Brand new
    2. Condition: brand new, never installed
    3. Storage: stored per GE storage standards
  5. Scope of Supply

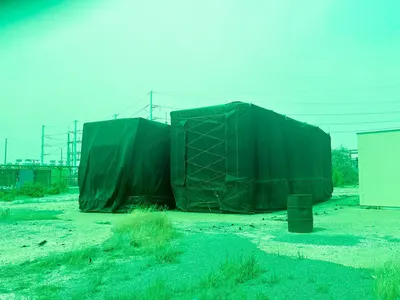

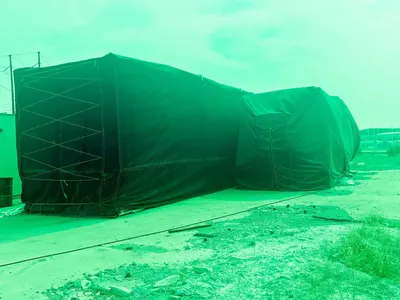

    1. GE turbine skid: (39' L x 12' W x 13' H, 200,000 lbs)
    2. Generator skid: (24' L x 12' W x 12' H, 210,000 lbs)
    3. Inlet system
    4. Exhaust system
    5. All manuals & drawings
  6. Additional Benefits
    1. High availability & reliability: over 350 units sold worldwide with an average fleet availability of 97.56% and reliability of 98.90%.
    2. Enhanced fuel flexibility: no impact on combustor's operability or integrity.
    3. Compact design: single lift basement engine and auxiliaries for faster installation.
    4. Long-term performance: first commercial unit exceeded 300,000 operating hours.
  7. Weight
    1. Weight: 185972
