Item 004: Standard table top without blower, 1830 x 1200 mm, quantity: 10 pcs
Item 005: Copper-bar type safety electric rail, 3 m/pcs, quantity: 4 pcs
Item 006: Panasonic trolley
Item 007: Panasonic electric cover
Item 008: Wooden box for packing

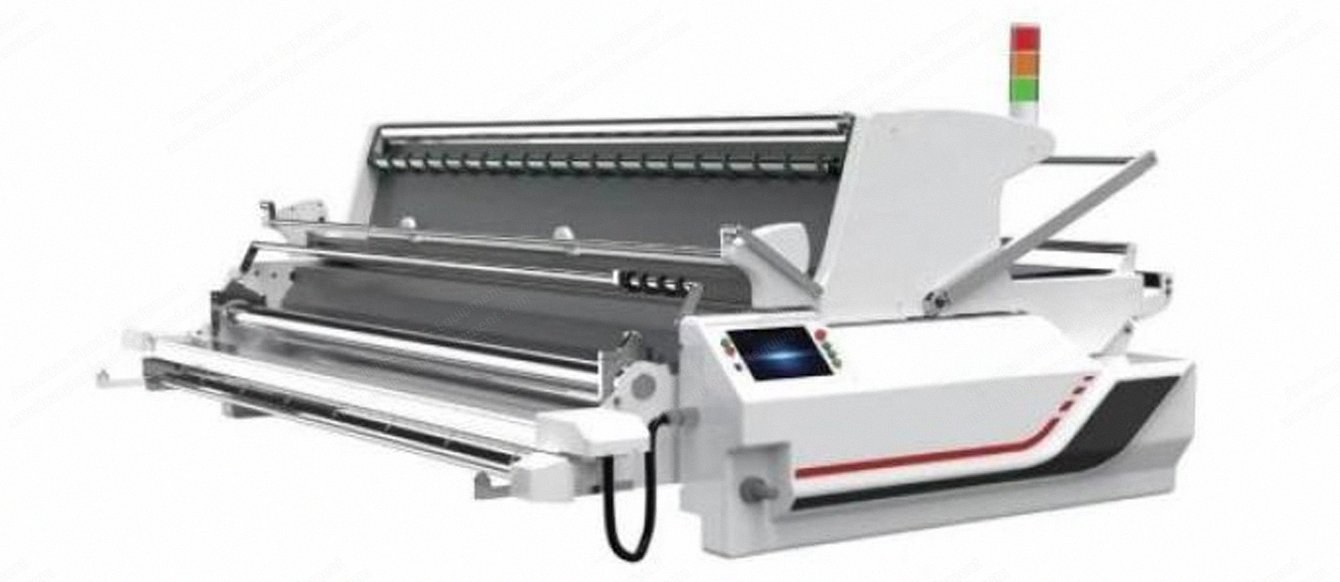

Introduction Of The Spreader Machine
Main equipment: LCD touchscreen for easily setting the length, mode, quantity, speed and sections of the fabric spreader.
Fabric endsense: main machine will stop automatically once the fabric pulls out, back to the fixed point.
Cutting device: easily to assemble and disassemble the cutting knife and main machine, can set the knife moving distance and cutting speed according to the fabric width when need to cut fabric.
Automatic fabric pre-loosening device: loosens the fabric first and then lays it out to eliminate the tension of fabric spreading and maintain the consistency of fabric spreading quality.
Electric eye automatic edge alignment device: can accurately achieve automatic edge alignment during the sequential operation of lab-pulling.
Automatic lifting device: the lifting amount can be set according to the thickness of the fabric and used in conjunction with the fabric.
Emergency stop device: on both sides of the cutting bed, there are steel cables for stopping the machine; the steel cables can be pulled at any position on the cutting bed at any time for emergency stopping.
Fabric spreading device: can effectively adjust the fabric spreading according to the width and tension of the fabric, preventing the fabric from wrinkling.
Product Features
Stop when there is no fabric and automatically back to the fixed point.
Simplify operations, improve production efficiency and ensure quality.
Newly increased arc-shaped expansion tubes for forward and backward angle adjusted, which is suitable for thin elastic fabrics.
Automatic shutdown after five minutes (when not in use).
Emergency stop, lay down fabric will not drag.
PLC touch screen operating system.
Tension-free spreading operation.
Streamlined shape, reduces wind resistance, reduces noise and reduces vibration.
Automatic spreading system.
Equipment Technical Parameters
Fabric spreader width: 1600 mm
Max. diameter of the fabric roll: 450 mm
Max. weight of the fabric roll: 120 kgs
Max. moving speed: 90 m/min
Spreader type (can be selected): single direction / double directions / sections long & short spreader
Power: 1P 220V / 50Hz, 1 kW
Table width: 1830 mm
Machine size: 2200 x 1800 x 950 mm
Main Component Configuration List
PLC: Taiwan
Encoder: Japan
Relay: Japan
Photo electric sensor (edge alignment): Germany
Photo electric sensor (unfolding fabric): Germany
Relay-actuated brake: Taiwan
Frequency inverter: Japan
Fabric hopper motor
Drive motor
Servo motor
Bearing: Japan, NSK
Machine arm: 16 mm aluminum plate
