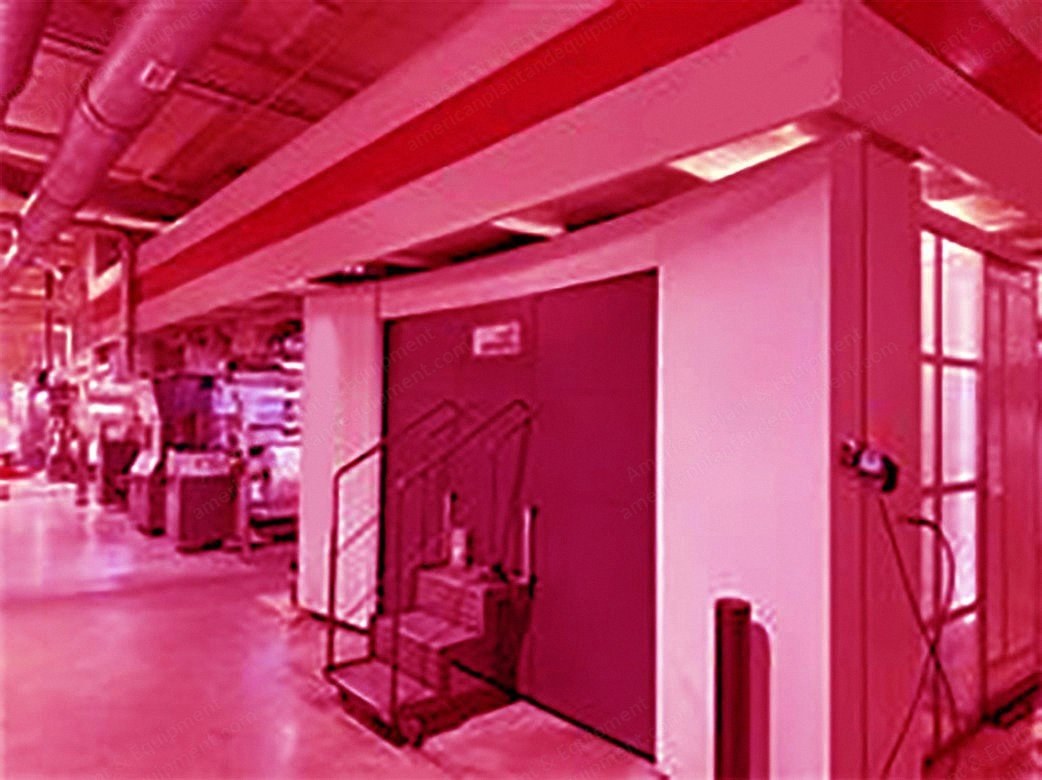

Uteco, Onyx 808, 2010, 1000mm Print Width, 8 Colors, Gearless, Flexo CI

Uteco, Onyx 808, 2010, 1000mm Print Width, 8 Colors, Gearless, Flexo CI

Description

  1. Overview
    1. Number of colors: 8
    2. Print possibilities: 8+0
    3. Gearless: yes
    4. Fast sleeve change: yes
    5. 4 motor per deck CNC position system: yes
    6. Computer supervision: yes
  2. Print Specifications
    1. Print width: 1000 mm
    2. Min print repeat: 320 mm
    3. Max print repeat: 800 mm
  3. Unwinder and Rewinder
    1. Unwinder type: turret automatic with roll loading system
    2. Max reel diameter unwinder: 800 mm
    3. Rewinder type: turret automatic with roll unloading system
    4. Max reel diameter rewinder: 800 mm

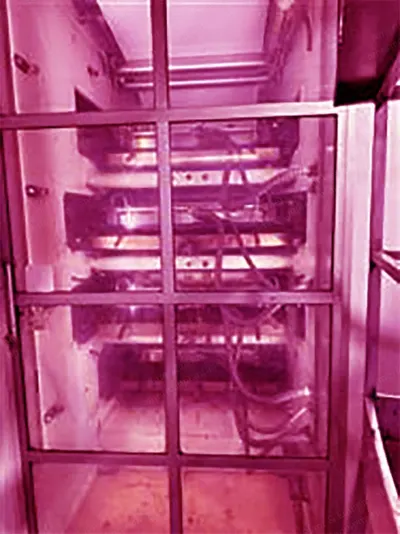

  4. Drying System
    1. Drying: 2 zones, 4 fans, final tunnel 4 m length, 2 gas burners 200,000 Kcal/h each
    2. Automatic air recirculation system with LEL controls on each zone
  5. Controls and Auxiliaries
    1. Videocamera: yes, Grafykontrol with auto register control
    2. Viscosity control: yes
    3. Washing system: yes, automatic
    4. Inking system: closed chamber doctor blades
  6. Included Sleeves
    1. Anilox: 18 ceramic anilox sleeves
    2. Print sleeves: approximately 200 (16 x 320, 8 x 340, 8 x 360, 8 x 400, 8 x 420, 8 x 440, 16 x 460, 8 x 480, 8 x 500, 8 x 600)
  7. Specifications
    1. Web width mm: 1050
