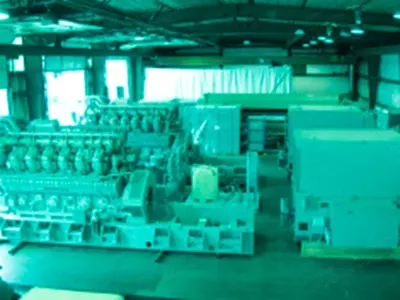

Waukesha, 12V-AT27GL, 2001, 4.3 MW Co-Generation Package, Natural Gas, 60 Hz

Waukesha, 12V-AT27GL, 2001, 4.3 MW Co-Generation Package, Natural Gas, 60 Hz

Description

  1. Overview
    1. Two identical 2100 kW Waukesha generators, new and never installed
    2. Fuel type: natural gas
    3. Part of a 4.3 MW Waukesha co-generation package
    4. Model year: 2004
    5. Unit number: 84160
  2. Generator Specifications
    1. Brand: Kato
    2. Generator end model: AA27493000
    3. Rated output: 2100 kW / 2625 kVA
    4. Rating: continuous duty
    5. Voltage: 7200/12470 V or 13.2 kV or 4160 V
    6. Frequency: 60 Hz or 50 Hz
    7. Phase: three-phase
    8. Number of leads: 6 – wye
    9. Exciter: PMG
    10. Stator winding pitch: 2/3
    11. Enclosure: TEFC – synchronous type
    12. Power factor: 0.8
    13. Current: 3 phase 60 hertz
    14. RPM: 900
    15. Weight: 36,000 lbs

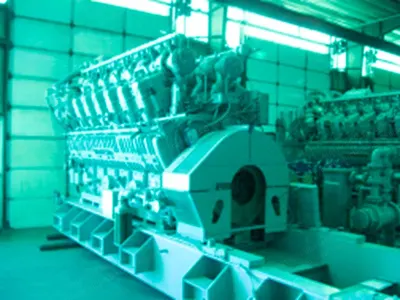

  3. Engine Specifications
    1. Manufacturer: Waukesha
    2. Model: 12V-AT27GL
    3. Fuel: natural gas
    4. BHP: 2955
    5. RPM: 900
    6. Heat rate: 9056.4 BTU/kW-hr
    7. Fuel rate: 352.19 CFM
    8. Horsepower: 2955 @ 900 RPM
    9. Cooling system: ATGL jacket water cooling system
    10. Weight: 82,000 lbs
    11. Length: 297.64 in plus aux skid 64 in
    12. Width: 94 in
    13. Height: 132 in
  4. Overall Dimensions and Weight
    1. Overall dimensions: 355 in L x 96 in W x 133 in H
    2. Overall weight: 115,000 lbs
  5. Control Panel
    1. Model 4000 / 24 VDC
  6. Exhaust Silencers
    1. Two units GT Exhaust model 201-6124 exhaust silencer units
    2. Capacity: 32,619 lb/hr
    3. Attenuation: 42 dBA reduction @ 250 Hz
    4. Weight: 4,000 lbs

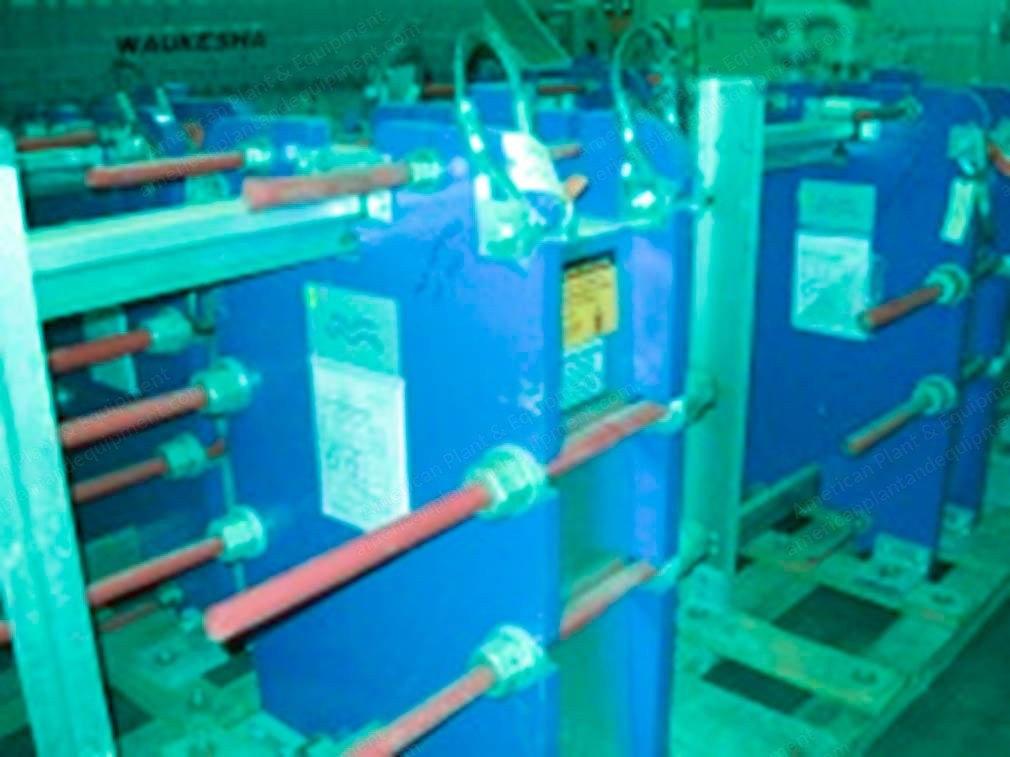

  7. Heat Exchangers – Chiller Water Service
    1. Two units Alfa Laval model M15-BFG plate and frame heat exchangers
    2. Capacity: 6,500 MBH/hr
    3. Weight: 4,550 lbs
  8. Heat Exchangers – Auxiliary Water Service
    1. Two units Alfa Laval model TS20-MFG plate and frame heat exchangers
    2. Capacity: 2,592 MBH/hr
    3. Weight: 2,270 lbs
  9. Heat Exchangers – Waste Heat Service
    1. Two units Alfa Laval model TS20-MFG plate and frame heat exchangers
    2. Capacity: 6,500 MBH/hr
    3. Weight: 2,530 lbs
  10. Exhaust Heat Recovery Silencer/SCR Units
    1. Two units Envirokinetics exhaust heat recovery silencer/SCR unit
    2. Capacity: 3,700 MBH/hr
    3. Weight: 17,000 lbs
  11. Absorption Chiller
    1. One unit Trane model ABSD0800H Horizon single-stage absorption chiller
    2. Cooling: 781 tons
    3. Voltage: 460 volt – 60 hertz
    4. Hot water GPM: 1,442
    5. Hot water temp: 250°F to 230°F
    6. Chilled water GPM: 1,245
    7. Chilled water temp: 59°F/44°F
    8. Shipping weight: 34,843 lbs
  12. Generator Ends
    1. Two units Kato Engineering Inc. model 8P10.5-4200 2/3 generator
    2. Rated output: 2,100 kW / 2625 kVA
    3. Voltage: 7199 / 12470 V
    4. Power factor: 0.8
    5. Current: 3 phase 60 hertz
    6. Exciter: PMG
    7. Leads: 6 wire – wye
    8. RPM: 900
    9. Enclosure: TEFC
    10. Stator winding pitch: 2/3
    11. Weight: 36,000 lbs
  13. Controls and Switchgear
    1. Square-D cogen controls and switchgear
  14. Specifications
    1. Weight: 52163
