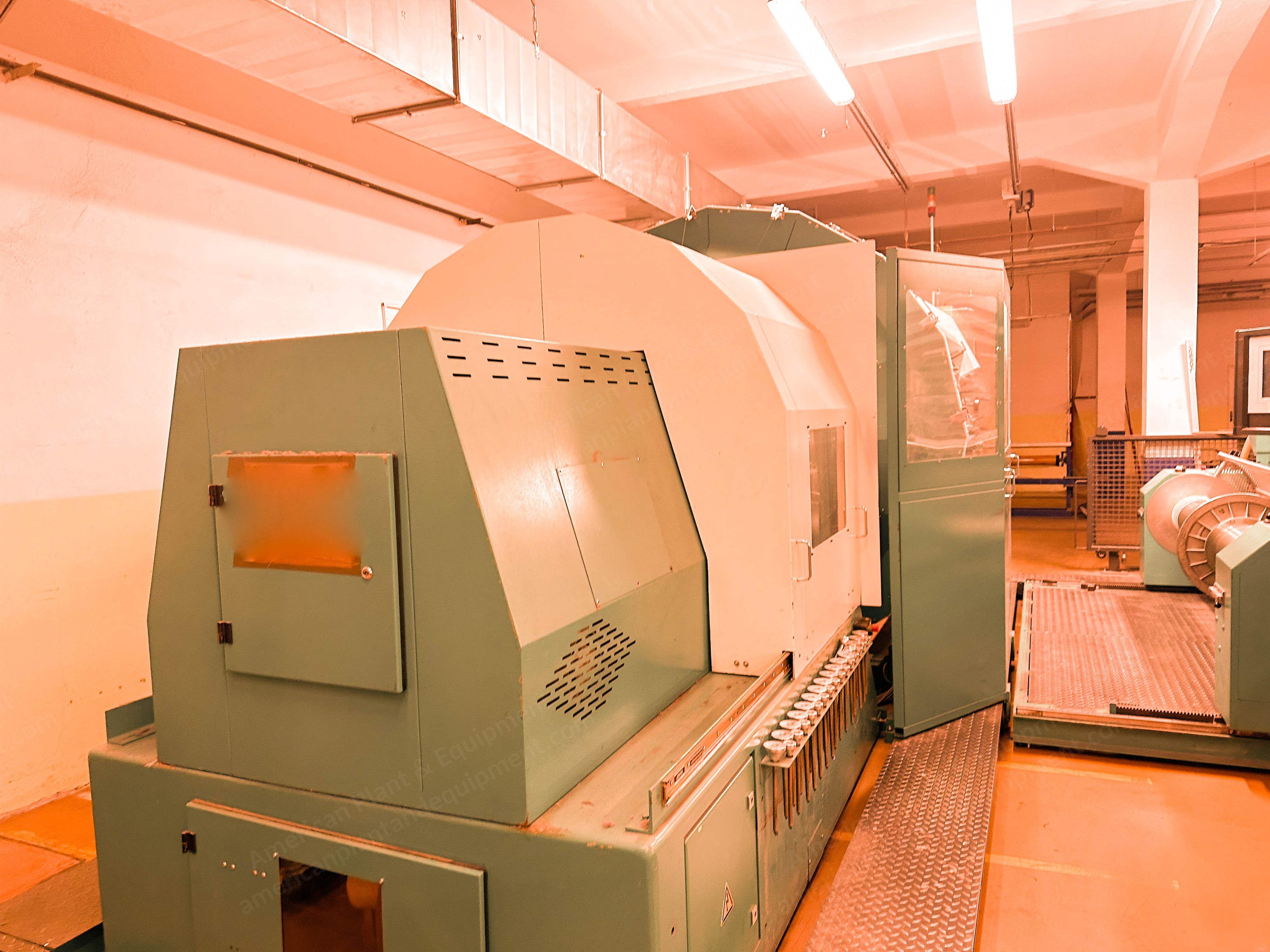

Karl Mayer, GOM 16, 2005, Working Width 2250mm, 16 Colors, Max Beam Diameter 1000mm

Karl Mayer, GOM 16, 2005, Working Width 2250mm, 16 Colors, Max Beam Diameter 1000mm

Description

  1. Overview
    1. Karl Mayer GOM 16 sampling warper
    2. Year: 2005
    3. Type GOM 16 / Giromatic 16
    4. Working width: 2250 mm
    5. Max. beam shaft length incl follower: 2900 mm
    6. Number of winding units: 16 packages
    7. Colour sequence for 16 colors: computer-controlled
    8. Prebeaming system
  2. Specifications
    1. Max. warp beam diameter: 1000 mm
    2. Warping length: 14 - 700 m
    3. Depending on type of material: 5 - 140 ends/cm
    4. Max. layer height: 20 mm
    5. Max. warping speed: 1200 m/min
    6. Colour change speed (circular creel only): max 1000 m/min
    7. Beaming speed: 30 m/min
    8. Pre-draw-off speed: 60 m/min
    9. Stored program control: SPS
  3. Condition and Features
    1. This machine is equipped with a leasing device in order to separate sized yarns into 7 leasings
