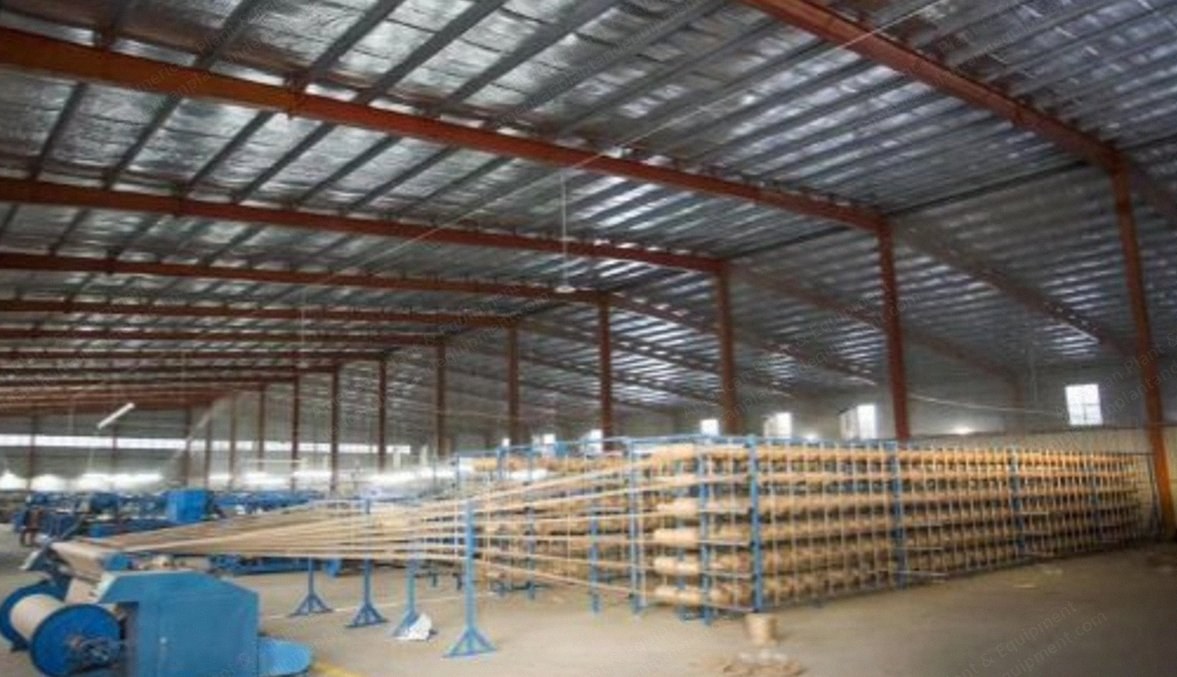

Description Overview Used for preparing warp beams for weaving looms. Equipped with an advanced infrared electronic sensor and an automatic stop control system for warp breakage. Offers easy operation and high production efficiency. Main parts are machined using CNC and specialized equipment, ensuring high precision and excellent performance during production. Advanced microcomputer monitoring system provides reliable detection and automatic tracking, with an integrated stop-and-alarm signal. Specifications Width: 2600 mm Beam flange diameter: 600 mm Number of bobbin frames: 1100 Barrel spacing: 300 mm Warping speed: 0 to 100 meters per minute, infinitely adjustable Constant linear speed accuracy of warp axis: ≤ ± 2% Maximum warp tension (strip tension): 600 N Precision of warp tension: ≤ ± 2% Single yarn tension accuracy: ≤ ± 3% Wire guide speed: 0001 to 9999 (mm/rev), steplessly adjustable Wire guide accuracy: ≤ ± 0.02% Braking distance: less than 3 meters (at a speed of 400 m/min) Infrared photoelectric sensor stops the machine when yarn is disconnected Reliability rate of automatic stop after head breakage: 100% Air supply: 0.3 L/min at 6 MPa No-load operating noise shall not exceed 80 dB Power: 7.5 kW; voltage: 480 V, 60 Hz (customizable per regional voltage) Total weight: 5800 kg Dimensions: 4800 mm × 980 mm × 1200 mm Required floorspace: about 5 meters x 12 meters x 2 meters height
