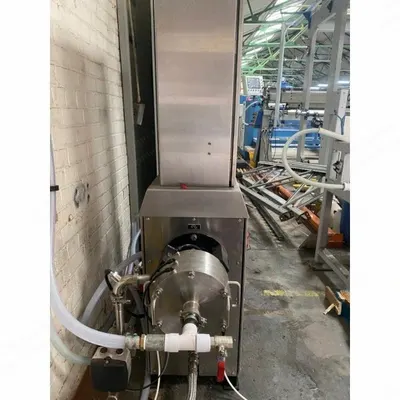

Shaft driven by a 4.0 kW, 960 rpm, 3-phase AC motor
Requires 3½ to 1 reduction by pulley/belt or gearbox
Pump
Twin stage Mono C 22 pump with packed gland
Pump shaft driven by a 0.75 kW, 1430 rpm, 3-phase AC motor
Drive includes a 5.72 to 1 reduction gearbox plus additional timing belt and pulley reduction with 1 to 1 reduction
Liquid output up to 480 kg/hr
Controls
Manual adjustment of pump and mixing head speeds via potentiometers on main control panel
Speed indication by 7-segment LED displays
Air flow adjusted by ABB manual rotameter with air flow indication by float in sight glass

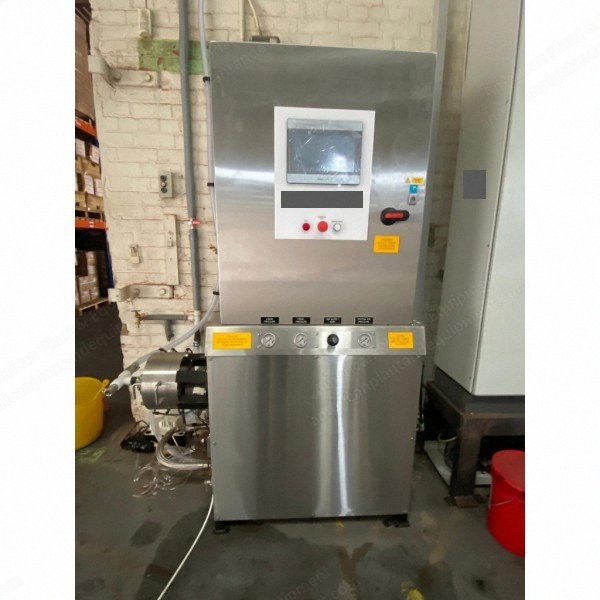

Control Panel (Fact09)
Includes Mitsubishi PLC modules
10-inch touch-screen HMI
Siemens volumetric flow meter
Brooks mass air controller
Auto switch to rinse water
Laser sensor for foam height detection based on required add-on, defined target blow ratio / foam density
With defined fabric width/weight and signal from line speed, system automatically controls pump speed to meet target pump rate and air controller to meet target air flow for target blow ratio / foam density
Included
One set standard spare kit included
