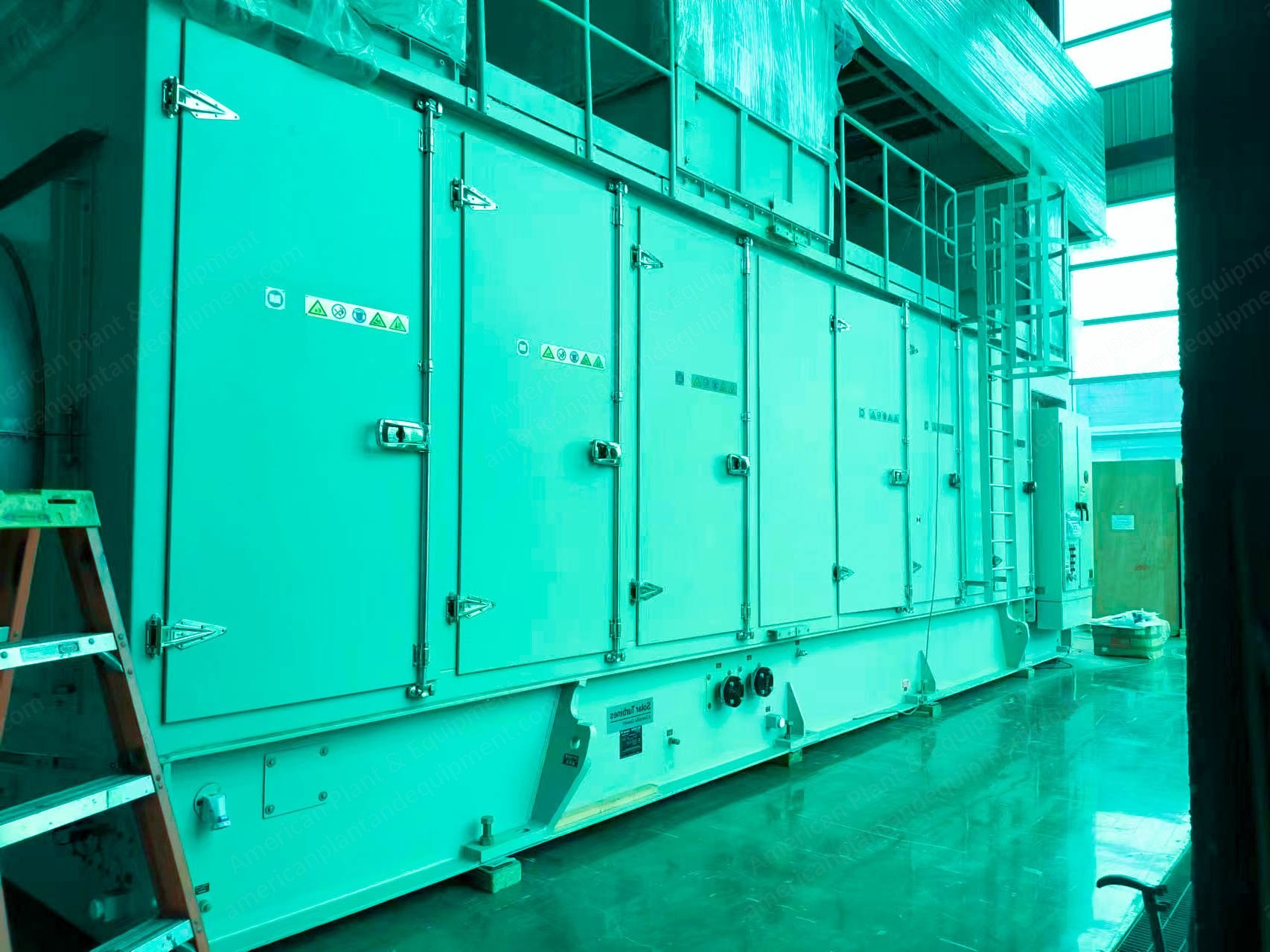

Solar, Taurus 70, 2017, 7.96 MW, 50 Hz, Gas Turbine Generator Set
Scroll to zoom
100%
Description
Overview

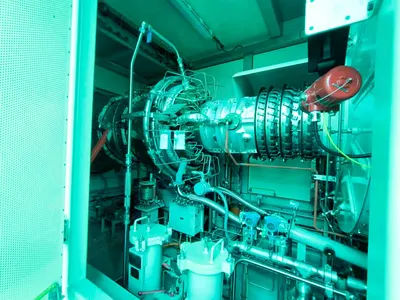

T70 solar generator set main engine (generator, gas turbine engine, base, gearbox, starting system, lubrication system, fuel system, control and monitoring system)

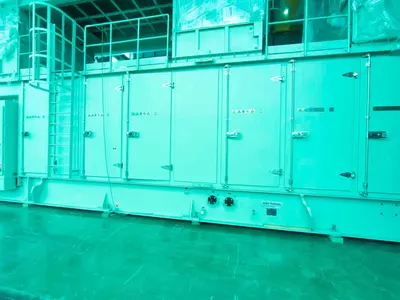

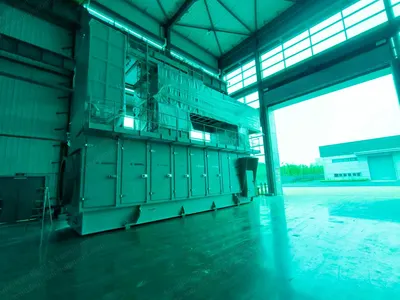

Taurus 70 gas turbine generator set
Solar / United States
50 Hz
Iso power generation: 7962 kW
Dimensions: 1200 x 420 x 435
Weight: 65 t
Component List
Ladder and platform, dimensions: 500 x 220 x 110, weight: 2500 kg
Protective railing and tubing, dimensions: 510 x 230 x 200, weight: 150 kg
Exhaust muffler housing, dimensions: 370 x 280 x 170, weight: 1000 kg
Intake muffler housing, dimensions: 290 x 220 x 220, weight: 1500 kg
Grille plates, dimensions: 200 x 100 x 80, weight: 1000 kg
Pay-off slot, dimensions: 260 x 110 x 40, weight: 200 kg
Electrical wire box (wooden box), dimensions: 100 x 80 x 90, weight: 500 kg (quantity: 2)
Spinner, dimensions: 350 x 80 x 90, weight: 1000 kg (quantity: 2)
Shackles, 12 pieces
Eec cabinets, dimensions: 280 x 245 x 351, weight: 3500 kg
Others: tools and spare parts
Condition and Testing
Gt status: new (zero hours)
Testing year: 2017
Factory standard testing in accordance with solar specifications
Quality control documentation on electronic cd version
Taiwan
