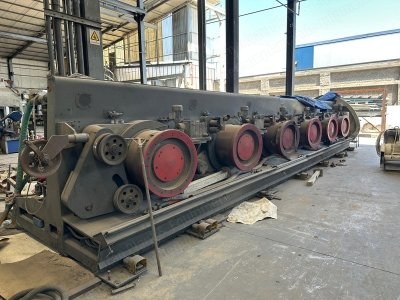

Eurolls, 6 Blocks, 2006, 710mm Capstan, 12mm to 2.5mm, 40 m/s

Eurolls, 6 Blocks, 2006, 710mm Capstan, 12mm to 2.5mm, 40 m/s

Description

  1. Overview
    1. Second-hand eurolls wire drawing machine with six (6) passes/blocks
    2. Year of construction 2006
    3. Type: 6 blocks
  2. Specifications
    1. Diameter of each block is 710 mm
    2. Motor power: 81 kW each
    3. Extrusion capacity from Ø 5.50 mm to Ø 12.00 mm
    4. Final diameter: Ø 2.50 mm
    5. Inlet wire diameter: 12 mm
    6. Finished diameter: 2.5 mm
    7. Number of drafts: 6
    8. Diameter of capstan: 710 mm
    9. Speed up to 40 meters per second
    10. Very high output
  3. Included Equipment
    1. Complete with two big pay offs, lisciani bedding and cleaning devices
    2. Eurolls spooler with 2,000 kg capacity rotating machine and automatic unloading of the finished bobbin
    3. Supplied with 10 full-size coils and 4 split coils for checked bobbins with a capacity of 2,000 kg each
    4. Automation panels for the wire drawing machine and the spooler with plc and siemens inverters, italian made (eurolls) with provision of space to add five (5) more blocks in series with the six (6) existing ones, if later conditions require it
    5. The drawing machine is equipped with six (6) rotary dies and corresponding soap boxes
    6. Five (5) wire extrusion cassettes with rollers (the 1st pass is always a rotary filer) are available for even higher production speeds
    7. Screw air compressor with dryer and filters for the production of compressed air, necessary for the operation of the engine, from sulair of american top quality
    8. Water-air cooling tower, sized for eurolls, with inverter and automation panel with watertight box
    9. Epsi cooling unit (greek branded company) with compressor and exchanger, in case of very high temperatures in summer for assisting the cooling tower
    10. Full cables are provided for the installation of the machines, signals and power, with high specifications and safety margins
