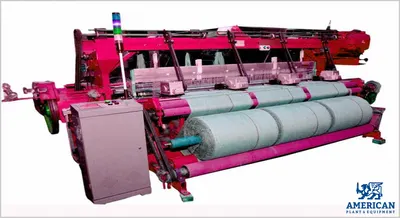

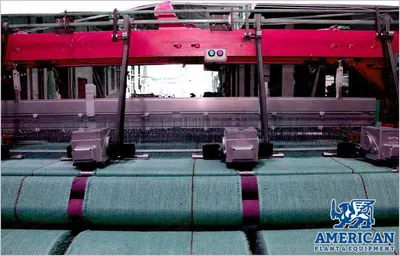

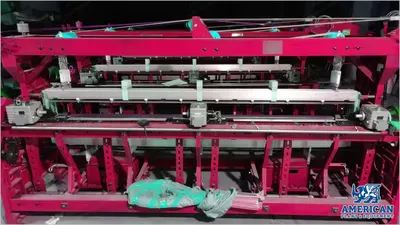

Description Overview Jute rapier looms Weaves jute fabric Material: 6 to 12 Ne jute yarn - other natural fibers compatible Specifications Width: 2800 mm Working width: 1800 to 2800 mm - adjustable Weaving speed: 200 to 300 rpm - stepless speed control Weft density: 20 to 80 picks/inch - mechanical adjustable Warp beam diameter: Φ800 to 1000 mm - high-capacity design Shedding type: electronic dobby - up to 24 harness frames Weft insertion: rigid rapier - bilateral synchronous drive Beating-up: conjugate cam - ensures beating force Let-off: electronic let-off - servo motor control Take-up: electronic take-up - continuous uniform rolling Tension control: 5 to 30 cn/yarn - auto-adjusting Motor power: 7.5 kw - energy-saving Noise level: ≤75 db - meets environmental standards Control system: plc + touch screen - multi-language interface Weight: approx. 2 tons - including frame Dimension: 3990 x 3990 x 2000 mm - l x w x h Condition One 40’ fcl can load 4 units of 2800 mm The warping machines require two 40’ gp containers Included Minimum order quantity for providing installation service: 12 units
