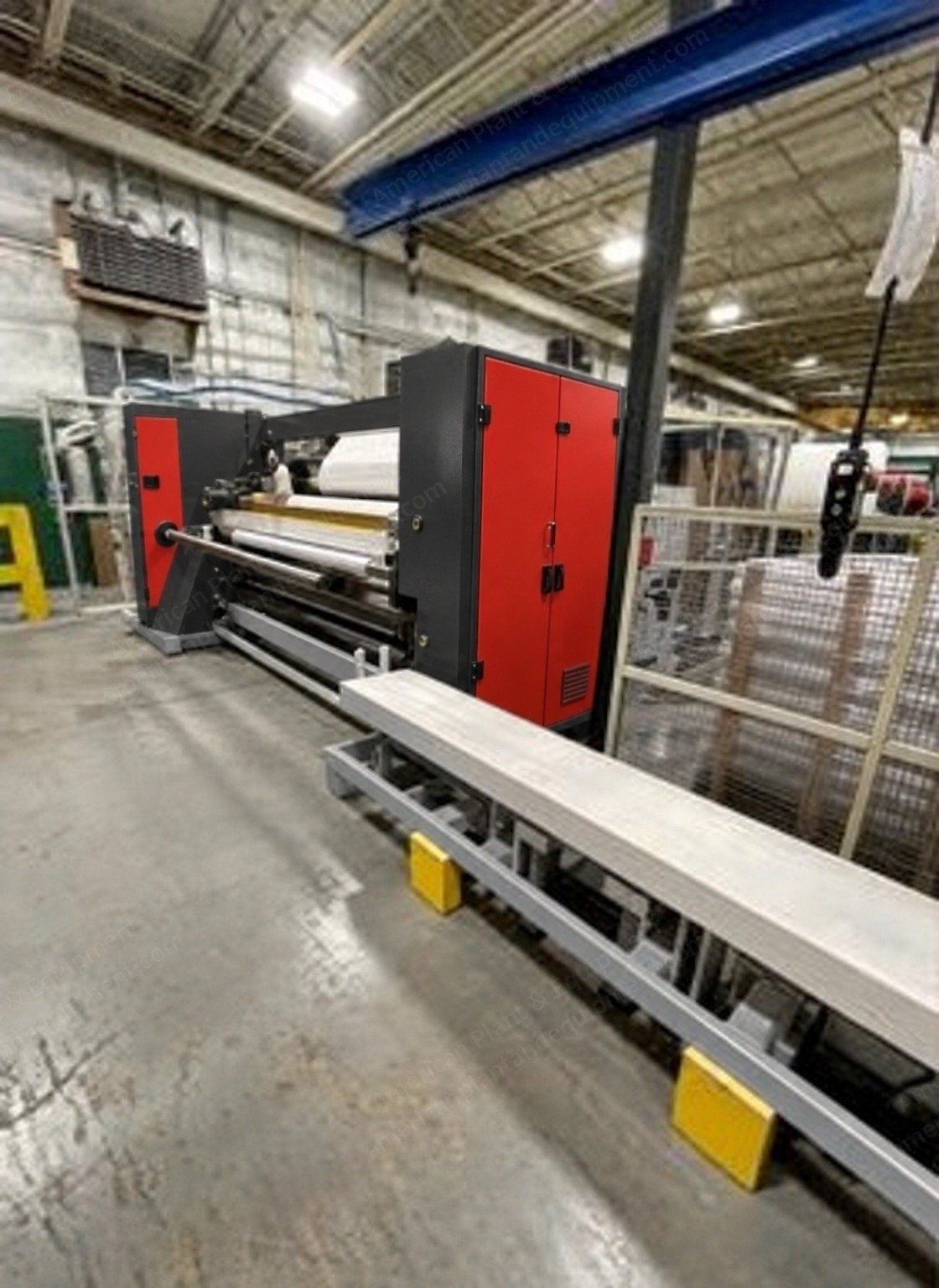

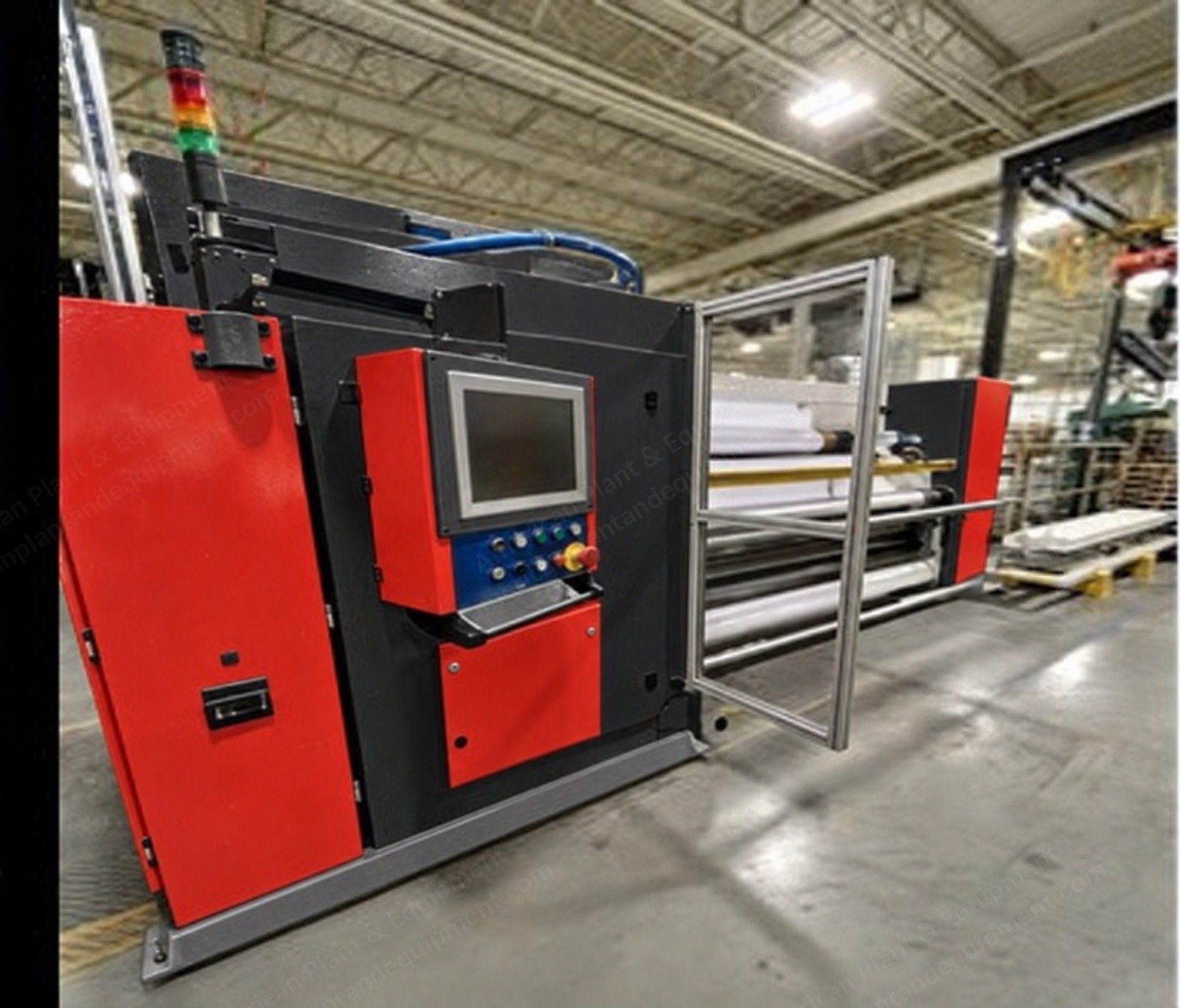

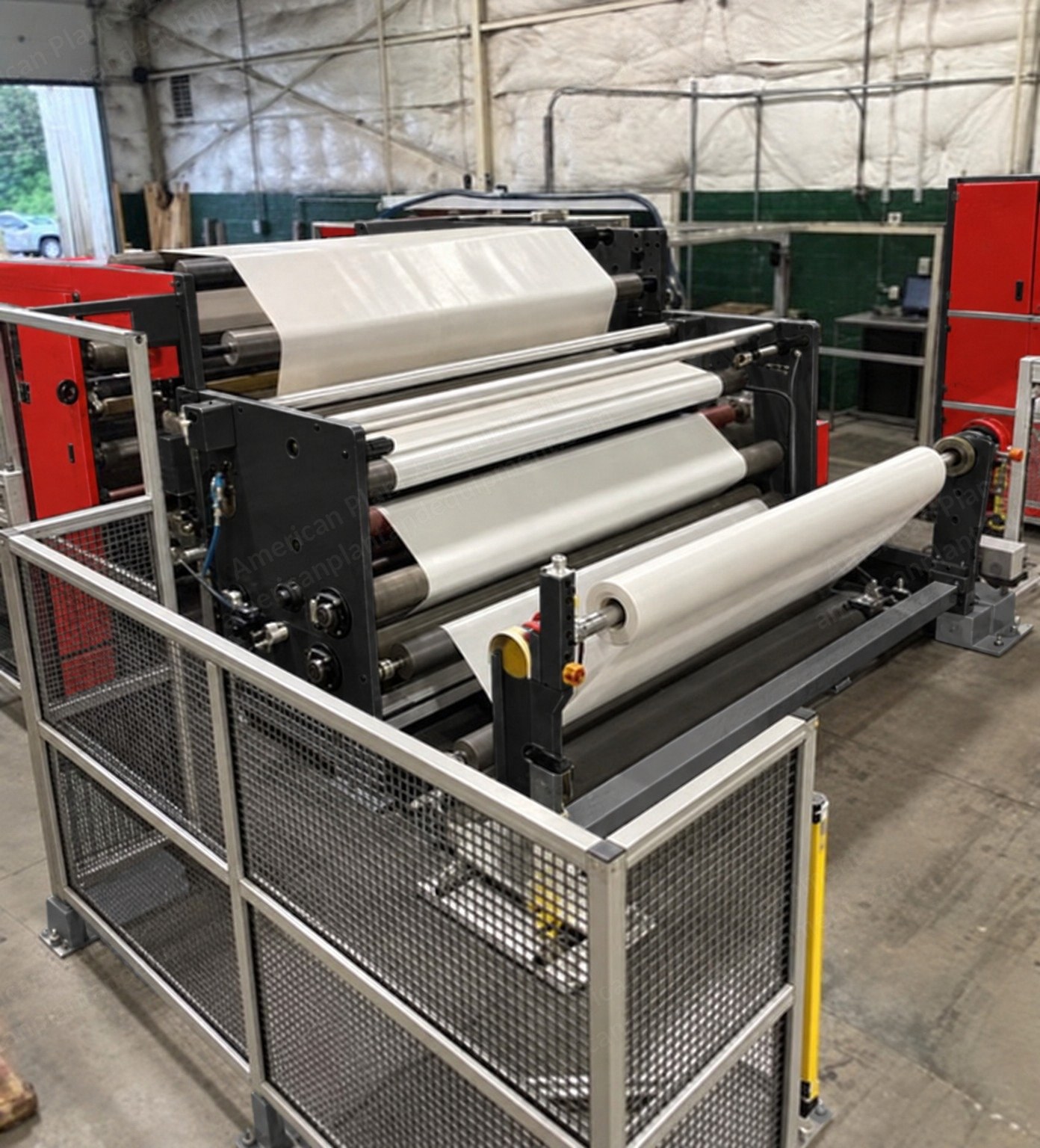

Catbridge Machinery model 324 cantilevered turret slitter rewinder.
Year of manufacture: 2017.
110 inch (2,794 mm) width.
Line speed 1,000 feet per minute (305 m/min).
Unwind
Turret W 600 Series unwind.
40 inch (1,016 mm) maximum unwind outside diameter.
Closed loop tension control with load cell dancer control.
Slitting
Razor and score slitting capability.
Dual trim pick-up.
Two adjustable bow rollers.
Perforating
Automated perforating unit: a continuous perforator with a brush roller.
Line speed is limited while perforating, and the limit depends on the perforation length: up to 4 inch, 100 FPM; over 4 and up to 5 inch, 200 FPM; over 5 and up to 8 inch, 400 FPM; over 8 and under 16 inch, 325 FPM; 16 inch and over, 350 FPM.
Rewind and unloading
18 inch (457 mm) maximum rewind outside diameter.
Fully automated roll unloading system.
Condition
Used.
