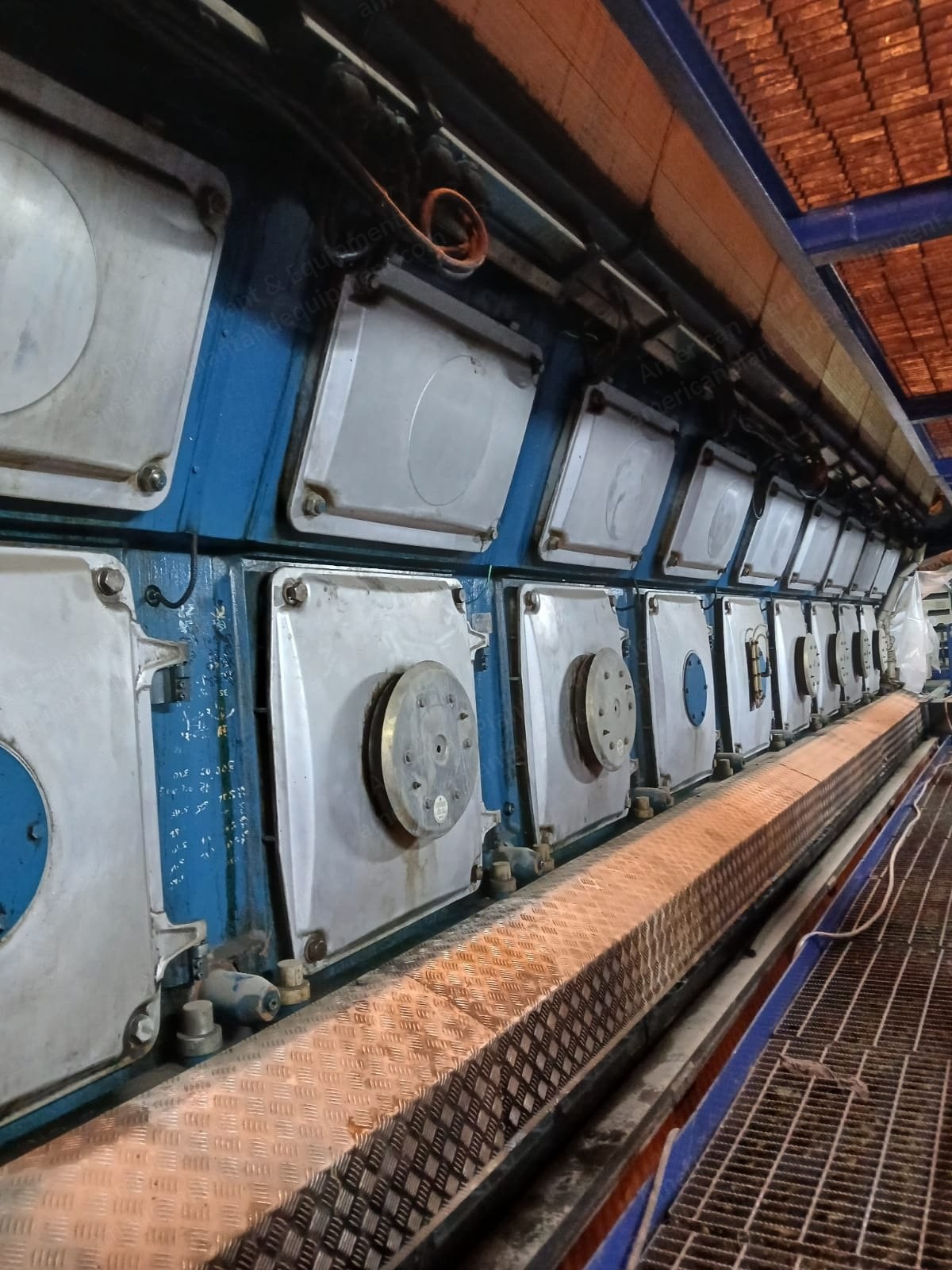

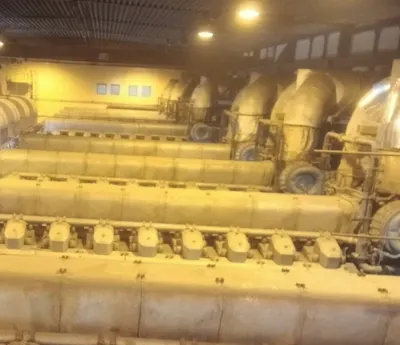

Wartsila, 18V46GD, 1998, 120MW Power Barge, 8 Units x 16.2MW, 50Hz
Scroll to zoom
100%
Description
Overview
Single barge: yes
Year of built: 1998
Class of the barge: DNV
Class still valid: no
Barge in full operational conditions: it was fully operational conditions with 120MW while the PPA expired. All machinery are preserved as OEM guideline since then.
Dimensions
Length: 96540mm (3,800.8 in)
Breadth: 30480mm (1,200.0 in)
Depth: 6090mm (239.8 in)
Power Generation
Output of voltage: generation voltage 15kV, outgoing 132kV at 60Hz
Accommodation
Accommodations for workers: 4 single cabins, but unused for a long time
Captain and chief accommodation, separate: no accommodation. No captain or chief engineer required as there is no propulsion system
Design for a normal O and M team (land-based)
Condition and Maintenance
Maintenance records: not much. Machinery requires an overhaul, but for a fast/quick start, a short-term solution is available from the local service company who did the inspection recently (April, 2025)
All alternators are inspected thoroughly and found in good health.
IR and PI values are found good, thus cleaning is not needed. 20 electric motors are randomly checked for IR and found good
Engine Running Hours
Total running hours of each engine from the commercial operations date (June 30th, 1999) to March 12th, 2019:
Engine 1: 84,819 running hours
Engine 2: 94,637 running hours
Engine 3: 90,829 running hours
Engine 4: 81,554 running hours
Engine 5: 81,693 running hours
Engine 6: 85,171 running hours
Engine 7: 88,265 running hours
Engine 8: 91,899 running hours
