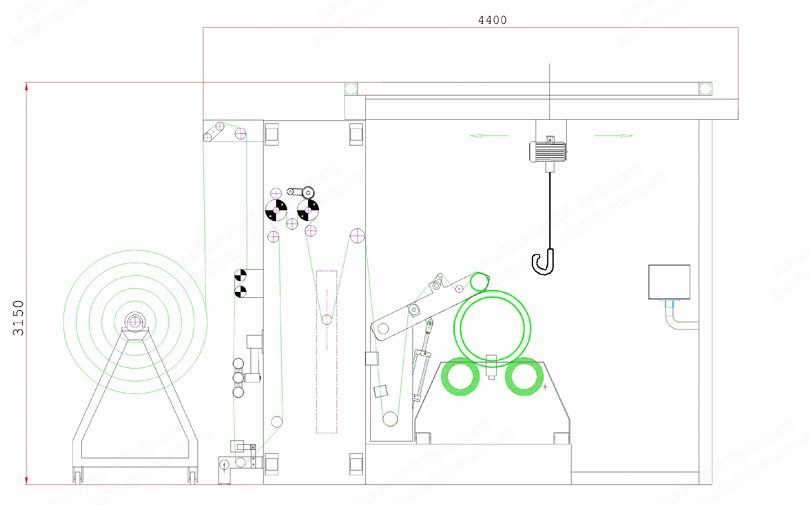

Dorumakina, S-100-1, Fabric Beam Dyeing Winder Machine, 1500mm Fabric Width, 2000mm Max Beam Width (New)

Dorumakina, S-100-1, Fabric Beam Dyeing Winder Machine, 1500mm Fabric Width, 2000mm Max Beam Width

Description

  1. Overview
    1. Fabric beam dyeing winder machine
    2. Fabric type: woven tricot or satin fabric
    3. Fabric width: 1500 mm
    4. Beam width: 2000 mm (max.)
    5. Beam diameter: Ø200 mm (max.)
    6. Working direction: forward
    7. Machine working speed: 0 to 60 m/min, controlled by stepless potentiometer
    8. Rpm adjustment: AC inverter
    9. Machine drive: AC + gearbox
  2. Fabric Inlet And Outlet
    1. Fabric inlet: fabric coming from the loom is fed into the machine by taking up the slack on the tension roller and pulling it directly with the draw roller
    2. Fabric outlet: max. Ø400 mm fabric wound with a photocell-controlled system on beam
    3. Beam winding diameter: max. Ø1100 mm
    4. Beam adjustment device: pneumatically piston-controlled
    5. Regulation group: ensures fabric is fed into the machine properly; pneumatic piston triggered by edge tracking photocell control moves left and right to center the fabric
    6. Fabric opener device: consists of a cylinder wrapped with spiral wire from center outward to remove curls formed on the edge of the fabric (manufactured from a stainless-steel cylinder)
    7. Beam pipe: before winding, it will be a stainless-steel pipe
  3. Winding And Tension Control
    1. Fabric edge control: by the edge-following sensor, the fabric is wound onto the beam tube in the winding group that moves left and right
    2. Fabric tension control: fabric tension and synchronization between motors ensured by the servomotor system
    3. Fabric measurement: accurate meter readings taken with an encoder-equipped digital meter (compatible with computers via RS 232 output; a touchscreen will be used)
    4. Fabric tension system in beam winding group: group required to remove folds in the fabric; present inside the machine
    5. Fabric tensioning device at fabric machine inlet: group required to remove folds in the fabric; present inside the machine
    6. Spread out group: in the fabric winding group, system that prevents fabric edges from overlapping when wound onto the fabric; present inside the machine
    7. Fabric end photocell: when the fabric runs out, the photocell system stops the machine with its angle adjustment feature
    8. Winding group adjustment: the perforated winding cylinder will be adjustable
  4. Additional Components
    1. Activated cylinders: cylinders will be coated with rubber material
    2. Non-driven pipes: cylinders that rotate freely where the fabric comes into contact will be made of stainless steel
    3. Beam arm safety rope with switch: present inside the machine
    4. Lift and connection device: option
  5. Operation Mode
    1. Machine operation mode: the fabric coming from the big batch passes through the stainless steel opener and centering system as it enters the machine and is wound onto the perforated beam using a photoelectric system; during winding, a shank system is used to prevent the edges of the fabric from overlapping
  6. Color And Finish
    1. Machine color: main bodies - gray, covers - light gray (RAL 7038 - 7035)
    2. The main body and covers will be electrostatically oven-painted
