Benninger, Slasher Indigo Line, 2003, 2000mm Width, Nitrogen Atmosphere, Reconditioned 2021

Benninger, Slasher Indigo Line, 2003, 2000mm Width, Nitrogen Atmosphere, Reconditioned 2021

Description

  1. Overview
    1. Benninger slasher indigo line
    2. Year: 2003, reconditioned 2021
    3. Running at the moment in perfect condition
  2. Item 001 - Creel
    1. Ben-creel / S100 / double creel for 14 + 14 (reserve) primary beams
    2. Pneumatic brakes
    3. Beam sizes: 1600mm (width) x 1400mm (flanges) and 1600mm x 1000mm
    4. Quantity: 14 + 14 = 28 beams of 1600 x 1400mm and 14 beams of 1600 x 1000mm
    5. Creels with lateral movement
    6. Demag crane of 3.2tn for beam changes
  3. Item 002 - Warp Yarn Preparation
    1. Ben-link / S120 / complete unit for changes and warp yarn preparation
    2. With sewing heads and all devices
    3. This system increases production and reduces yarn waste
    4. Complete with all accessories/machines
  4. Item 003 - Accumulator
    1. Ben-accumulator / S150 / non stop device for yarn-beam changes
    2. 90 meters capacity
    3. Rollers 2000mm width

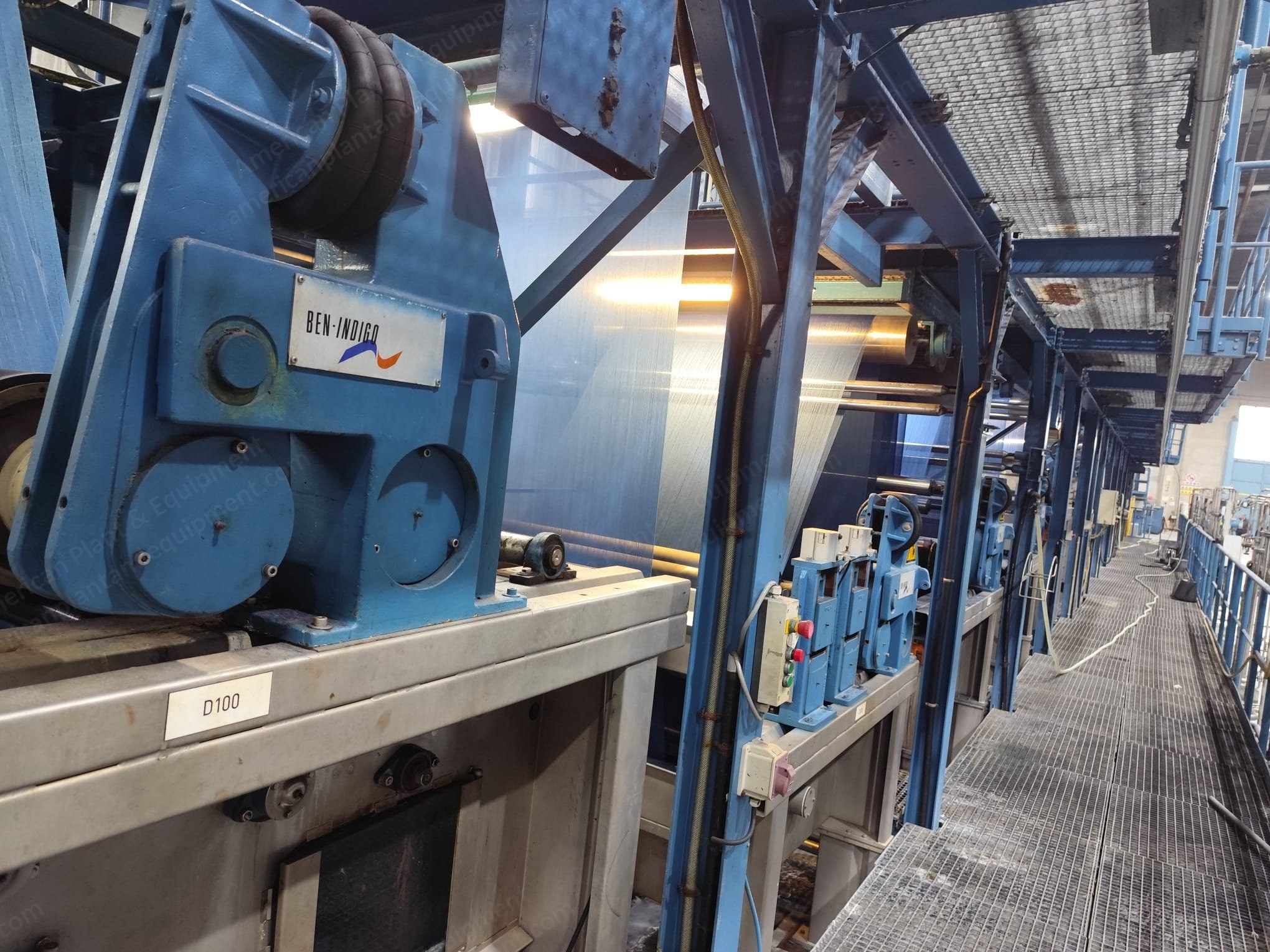

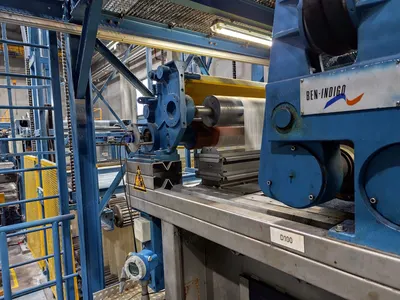

  5. Item 004 - Indigo Dyeing Unit D100
    1. Ben-indigo / D100 / for indigo dyeing with N2 (nitrogen atmosphere)
    2. Motorized unit at the entry for the yarn stretching to feed the line
    3. Box with 2 compartments: 1st for indigo impregnation of 6 meters capacity, 2nd with N2 atmosphere of 4 meters capacity
    4. Padder
  6. Item 005 - Steamer
    1. Ben-steamer / D300 / steaming unit for yarn fibers opening for better dyeing
    2. 35 meters of yarn capacity
  7. Item 006 - Treatment Unit D200
    1. Ben-indigo / D200 / for different treatments like pre-washing, washing, fixing, oxidation, neutralization, depending on the recipes
    2. 1 motorized padder and with 2 pneumatic squeezing padders
  8. Item 007 - Treatment Unit D220
    1. Ben-indigo / D220 / for different treatments like pre-washing, washing, fixing, oxidation, neutralization, depending on the recipes
    2. 1 motorized padder and 2 pneumatic squeezing padders
  9. Item 008 - Treatment Unit D240
    1. Ben-indigo / D240 / for different treatments like pre-washing, washing, fixing, oxidation, neutralization, depending on the recipes
    2. 1 motorized padder and 2 pneumatic squeezing padders
  10. Item 009 - Dryer
    1. Ben-dryer / S-320 / drum dryer with 8 cylinders
    2. 2000mm width
    3. Steam heated
  11. Item 010 - Indigo Dyeing Unit D400
    1. Ben-indigo / D400 / for indigo dyeing with N2 (nitrogen atmosphere)
    2. Motorized unit at the entry for the yarn stretching to feed the line
    3. Box with 2 compartments: 1st for indigo impregnation of 6 meters capacity, 2nd with N2 atmosphere of 4 meters capacity
    4. Padder
  12. Item 011 - Dryer
    1. Ben dryer / S321 / drums changed by 8 rollers (but drums available)
    2. 2000mm width
  13. Item 012 - Dyeing Padder
    1. Ben-padder / D410 / Kusters dyeing padder
    2. Pad steam option
    3. Cylinders to rebuilt and not running at the moment
  14. Item 013 - Indigo Dyeing Unit D420
    1. Ben-indigo / D420 / for indigo dyeing with N2 (nitrogen atmosphere)
    2. Motorized unit at the entry for the yarn stretching to feed the line
    3. Box with 2 compartments: 1st for indigo impregnation of 6 meters capacity, 2nd with N2 atmosphere of 4 meters capacity
    4. Padder
  15. Item 014 - Steamer
    1. Ben-steamer / D350 / steaming unit for yarn fibers opening for better dyeing
    2. 35 meters of yarn capacity
  16. Item 015 - Indigo Dyeing Unit D440
    1. Ben-indigo / D440 / for indigo dyeing with N2 (nitrogen atmosphere)
    2. Motorized unit at the entry for the yarn stretching to feed the line
    3. Box with 2 compartments: 1st for indigo impregnation of 6 meters capacity, 2nd with N2 atmosphere of 4 meters capacity
    4. Padder
    5. With cylinders passage in the upper side (2 floors)
  17. Item 016 - Indigo Dyeing Unit D480
    1. Ben-indigo / D480 / for indigo dyeing with N2 (nitrogen atmosphere)
    2. Motorized unit at the entry for the yarn stretching to feed the line
    3. Box with 2 compartments: 1st for indigo impregnation of 6 meters capacity, 2nd with N2 atmosphere of 4 meters capacity
    4. Padder
    5. With cylinders passage in the upper side (2 floors)
  18. Item 017 - Indigo Dyeing Unit D490
    1. Ben-indigo / D490 / for indigo dyeing with N2 (nitrogen atmosphere)
    2. Motorized unit at the entry for the yarn stretching to feed the line
    3. Box with 2 compartments: 1st for indigo impregnation of 6 meters capacity, 2nd with N2 atmosphere of 4 meters capacity
    4. Padder
    5. With cylinders passage in the upper side (2 floors)
  19. Item 018 - Treatment Unit D600
    1. Ben-indigo / D600 / for different treatments like pre-washing, washing, fixing, oxidation, neutralization, depending on the recipes
    2. 1 motorized padder and 2 pneumatic squeezing padders
  20. Item 019 - Treatment Unit D620
    1. Ben-indigo / D620 / for different treatments like pre-washing, washing, fixing, oxidation, neutralization, depending on the recipes
    2. 1 motorized padder and 2 pneumatic squeezing padders
  21. Item 020 - Treatment Unit D640
    1. Ben-indigo / D640 / for different treatments like pre-washing, washing, fixing, oxidation, neutralization, depending on the recipes
    2. 1 motorized padder and 2 pneumatic squeezing padders
  22. Item 021 - Dryer
    1. Ben-dryer / S-360 / drum dryer with 8 cylinders
    2. 2000mm width
    3. Steam heated
  23. Item 022 - Yarn Divisor
    1. Ben-divisor / S390 / yarn divisor
  24. Item 023 - Accumulator
    1. Ben-accumulator / S400 / non stop device for yarn-beam changes
    2. 90 meters capacity
    3. Rollers 2000mm width
  25. Item 024 - Sizing Unit
    1. Ben-size / S500 / double dip
    2. High squeeze
  26. Item 025 - Dryer
    1. Ben-dryer / S600 / drum dryer with 16 cylinders capacity with 12 installed (other 4 available)
    2. 2000mm width
    3. Steam heated
    4. Smokes extraction bell
  27. Item 026 - Accumulator
    1. Ben-accumulator / S450 / non stop device for yarn-beam changes
    2. 90 meters capacity
    3. Rollers 2000mm width
  28. Item 027 - Yarn Divisor
    1. Ben-divisor / S700 / yarn divisor with stretch yarn device and dataflash control
  29. Item 028 - Beam Warping Head
    1. Ben-sizetec / S800 / beam warping head for beams preparation
    2. 1000mm beam flanges
    3. Beam width of 2600mm
    4. Control panel with touch screen controls
  30. Other Lines and Accessories
    1. Automatic dosing for all dyes, water, chems etc. and all pumps for recirculation
    2. Steam line with heat exchangers
    3. Kitchen for chems and dyes preparation with automatic feeding to all boxes, with steel inox tanks and all devices for preparation, electric wardrobes, pumps etc.
    4. Sizing preparation with pumps for recirculation
    5. Nitrogen (N2) system to produce nitrogen to feed the line
    6. Siemens S7 electronic system with all electric wardrobes and air conditioning room
    7. Tension controlled by load cells up to 5000N
    8. All smokes extraction bells
    9. 7.5kW ABS motors
    10. Benninger software
    11. Salvia software, owner developed a new software with Salvia electronics
    12. Warp beams: include 14+14 sets 1600 x 1400mm / 14 sets 1600 x 1000mm / total 42 sets (maybe more)
    13. Demag crane, 3.2tn for beams
    14. Other accessories
  31. Specifications
    1. Estimated shipping volume: 30-32 containers
